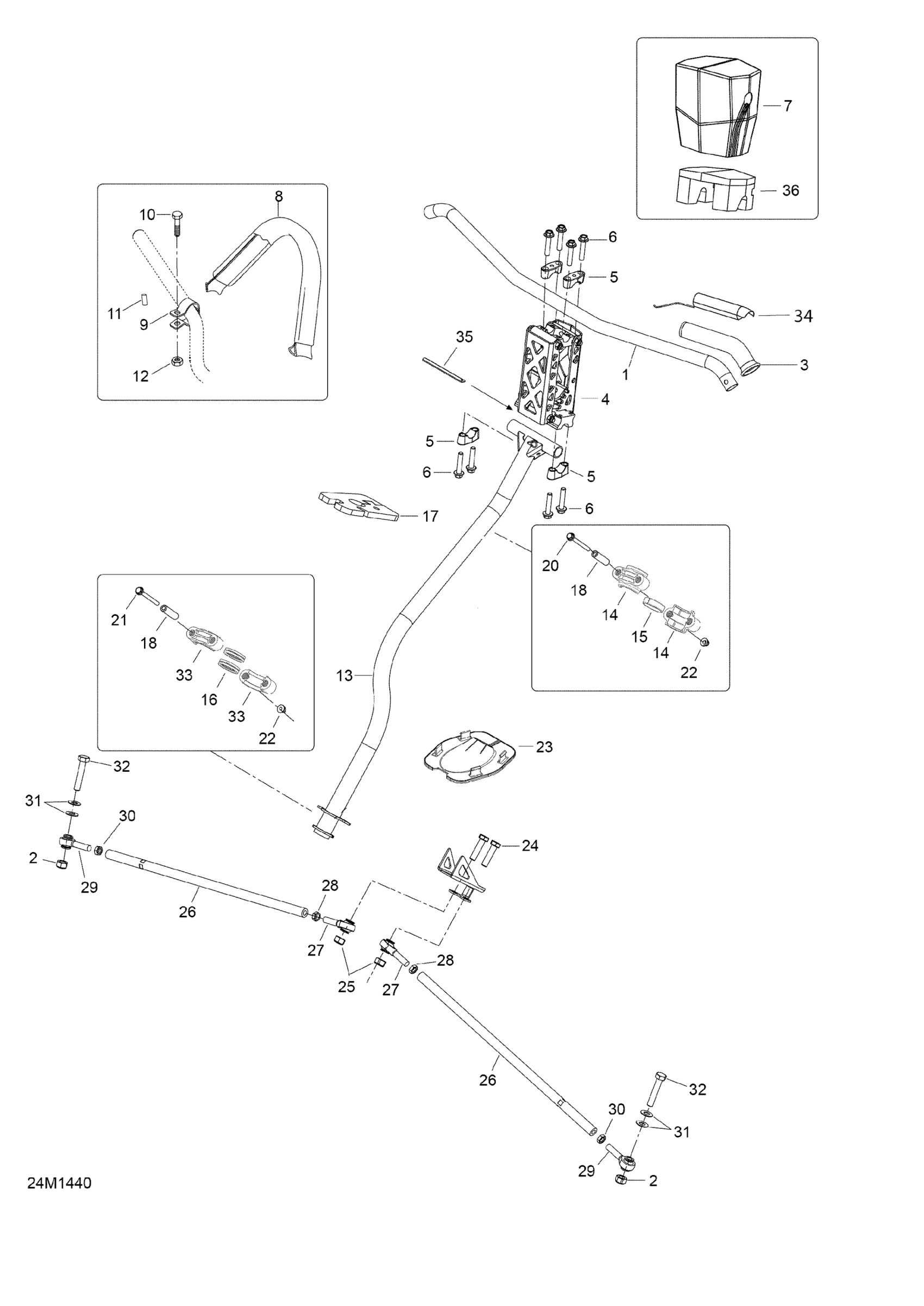

Ski-Doo EXPEDITION SE 600HOE, XU, 2014 Steering Diagram

#

Description
Price

1

Handle Bar

506152722

$148.49

2

Elastic Stop Nut M10

232500416

$1.90

3

Grip | WAKE This part replaces M5340464.

506152483

$12.17

4

Tilt Steering | Package SE

506152532

$275.49

5

Steering Support | Includes 40 to 40a

506152751

$13.99

6

Hex. Flange Screw M8 x 40

250000285

$0.82

7

Steering Cover | Package SE

506152381

$149.99

8

Strap Ass'y | Package XMR

506152115

$44.49

9

Black Support Plate

506152536

$9.19

10

Hex. Flange Screw M6 X 20

207662084

$1.69

11

Bushing | Package XMR

506152156

$5.61

12

Hex. Flange Elastic Nut M6

233261494

$1.58

13

Steering Column

506152962

$199.99

14

Upper Half-Housing

506152508

$9.23

15

Upper Anti-Vibration Gasket

506152509

$4.79

16

Lower Vibration Ring

506152518

$4.79

17

Cushion

506152404

$26.49

18

Housing Bushing

506152297

$12.99

19

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

20

Hex. Flange Screw M6 X 70

207667056

$4.44

21

Hex. Flange Screw M6 X 70

207667056

$4.44

22

Elastic Flange Nut M6 X 1.0

233261416

$2.11

23

Plate

506152163

$12.99

24

Hex. Screw M10 X 40

207004044

$4.76

25

Elastic Stop Nut M10

232500416

$1.90

26

Tie-Rod

506152498

$38.99

27

LH Thread Ball Joint

506152081

$41.49

28

LH Threaded Hex. Jam Nut M10

250100016

$0.74

29

RH Threaded Ball Joint

506152019

$41.49

30

RH Threaded Hex. Jam Nut M10

732610010

$0.74

31

Washer

506152194

$4.55

32

Hex. Screw M10 X 55

207005544

$2.22

33

Lower Half-Housing

506152217

$7.62

34

Heated Film, 25W

506152428

$39.99

35

Limiter Plate | Package SE

506152415

$88.99

36

STEERING PAD - Call your local BRP dealership

506152663

Unavailable
