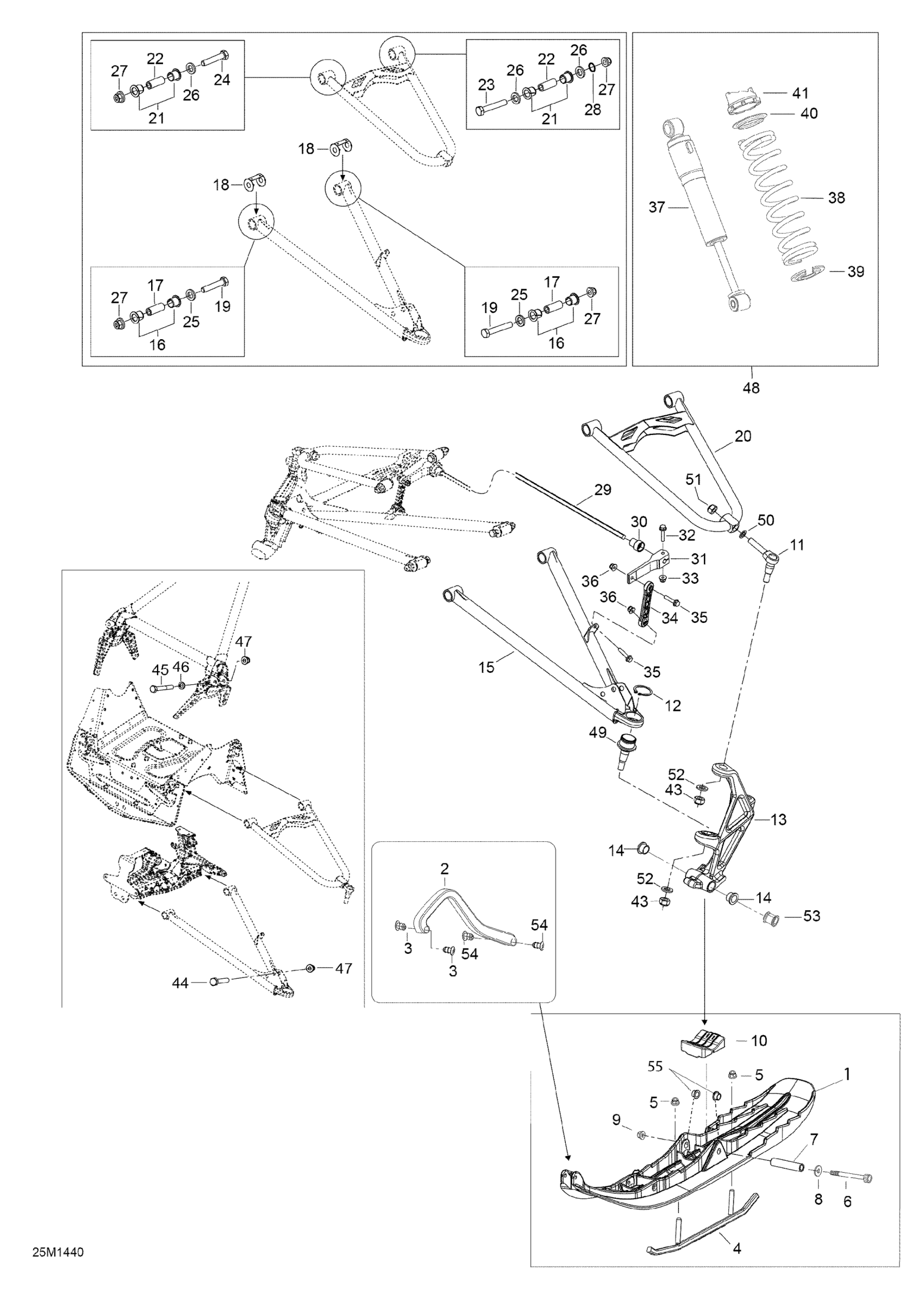

Ski-Doo EXPEDITION SE 600HOE, XU, 2014 Front Suspension And Ski Diagram

#

Description
Price

1

Black Pilot Ski Ass'y 6.9 RH

505073056

$170.12

1

Black Pilot Ski Ass'y 6.9 LH

505073055

$170.12

2

Black, Handle

505070963

$34.30

3

Retainer 17mm long

505071812

$4.30

4

CARBIDE RUNNER - Call your local BRP dealership

860501900

Unavailable

5

Hex. Flange Elastic Nut M8

233281414

$1.31

6

Hex. Screw M10 X 130 | Model-RT STD

250000703

$8.64

7

Spacer

506133300

$19.37

8

Washer

732900049

$0.55

9

Hex. Flange Elastic Nut M10

233201414

$1.45

10

Ski Stopper

505071779

$15.64

11

Upper Ball Joint

505072257

$16.39

12

Circlip

293370035

$2.48

13

Clear LH Ski Leg This part replaces 505073043.

505073011

$183.55

13

Clear RH Ski Leg

505073012

$226.09

14

Leg Bushing

505072690

$5.75

15

Black, RH Lower Arm

505072497

$184.30

15

Black, LH Lower Arm

505072498

$184.30

16

Bushing

505073330

$7.18

17

Sleeve

505072209

$13.96

18

Wear Plate

505072634

$4.31

19

Screw Hex. M10 X 70

250001024

$2.00

20

Upper Arm

505072375

$138.03

21

Bushing

505073329

$7.18

22

Sleeve

505072143

$8.36

23

Screw Hex. M10 X 60

250001023

$2.00

24

Screw Hex. M10 X 50

250001022

$1.63

25

Washer

503189564

$0.70

26

Washer

505072392

$4.51

27

Hex. Flange Elastic Nut M10

250100165

$0.81

28

O-Ring

505072448

$2.18

29

Stabilisator

505072602

$70.12

30

Bushing

505072064

$2.15

31

Stabilisator Lever

505072394

$15.64

32

Hex. Flange Screw M6 X 30

207663046

$1.63

33

Elastic Flange Nut M6 X 1.0

233261416

$2.00

34

Sway Bar Double Joint Link

505072204

$18.63

35

Hex. Flange Screw M6 X 30

207663046

$1.63

36

Elastic Flange Nut M6 X 1.0

233261416

$2.00

37

Front Shock

505072517

$231.31

38

Full Moon Spring 300mm-16N/MM | Model-North America

505072882

$147.73

39

Spring Seat

230076

$8.13

40

Spring Guide

503191872

$2.12

41

Adjustment Cam

505073625

$11.82

42

Tie-Rap 180 mm

414115200

$0.10

43

Hex. Elastic Hex. Nut M12

250100089

$0.45

44

Hex. Screw M10 X 55

207005544

$2.12

45

Hex. Screw M10 X 1.5 X 65

207006544

$2.63

46

Washer

503189564

$0.70

47

Hex. Flange Elastic Nut M10

233201414

$1.45

48

Not Available As Spare Part - Friction Washer

Unavailable

49

Ball Joint

505073636

$48.48

50

Washer

503189276

$3.10

51

Hex. Elastic Hex. Nut M12

250100089

$0.45

52

Flat Washer 12 mm

234021410

$0.66

53

Spacer

505071999

$12.31

54

Retainer 23mm Long

505072133

$4.88

55

Ski Bushing

505071781

$14.90
