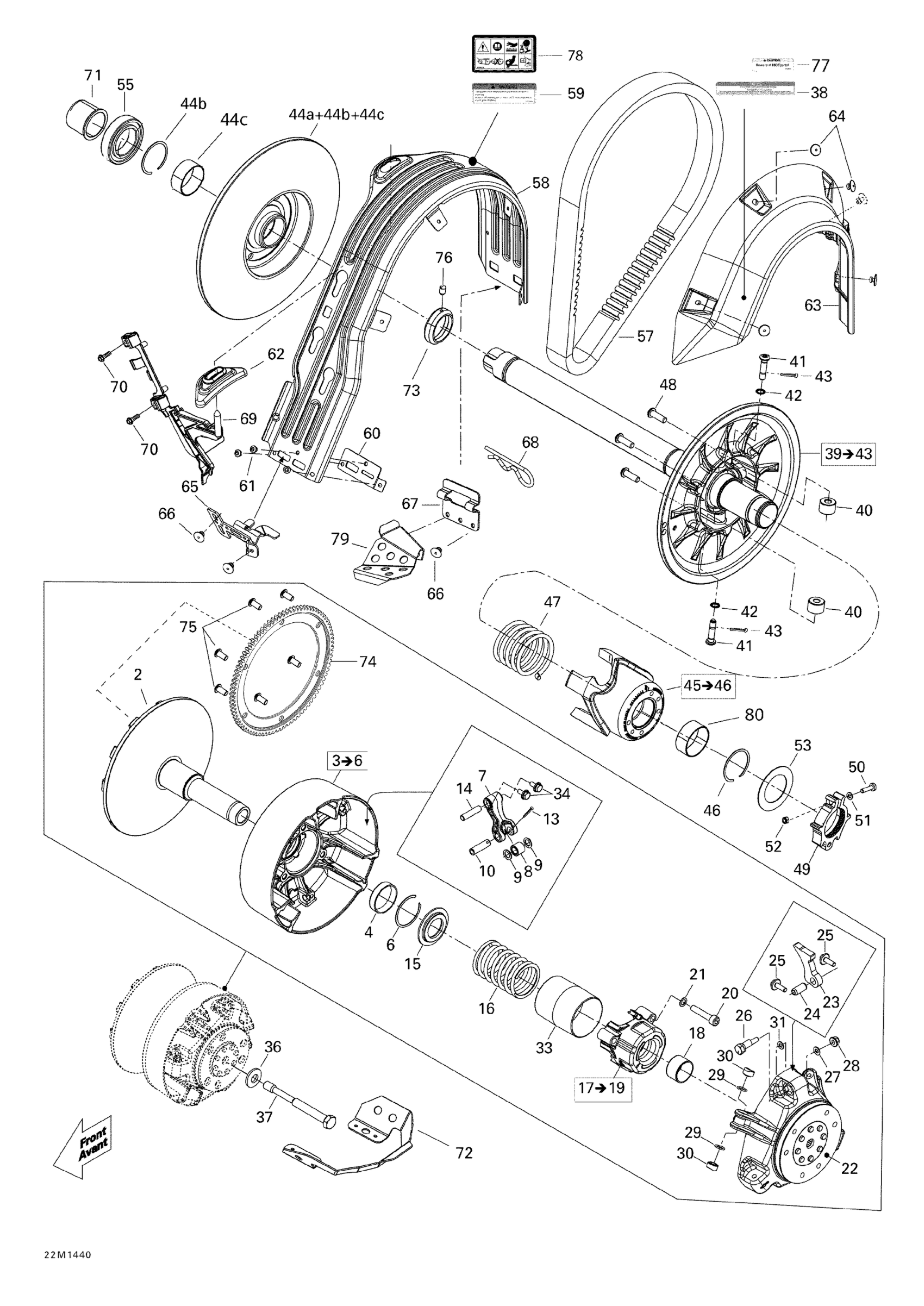

Ski-Doo EXPEDITION SE 600HOE, XU, 2014 Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y

417222937

$214.90

3

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$188.03

4

Bushing

417223086

$32.81

6

Circlip

293370037

$2.93

7

Lever | Includes 10f to 10g

417222671

$46.24

8

Roller

417222947

$19.37

9

Stopper Washer

417004302

$15.64

10

Pin

417222594

$13.69

13

Cotter Pin

250400060

$1.84

14

Lever Axle

417223164

$4.12

15

Spring Seat

417222312

$8.03

16

Tra Spring

414993000

$52.96

17

Spring Cover Ass'y | Includes 10r to 10t

417007500

$44.75

18

Bushing

417009204

$15.64

20

Socket Head Screw M8 X 1.25 X 40

205084044

$2.72

21

Lock Washer 8 mm

250200009

$2.00

22

Governor Cup Ass'y

417223669

$435.04

23

Ramp 412

417222515

$35.79

24

Spring Pin M10 X 22

250400050

$2.73

25

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.75

26

Calibration Screw

417223501

$11.73

27

Washer

417005600

$3.75

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

29

O-Ring

732401030

$0.93

30

Slider Shoe This part replaces 420460045.

417223021

$5.99

31

Washer

417005600

$3.75

33

Guard

417009205

$16.39

34

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$3.75

36

Spring Washer 14 mm

250200006

$6.66

37

Drive Pulley Bolt

417120000

$61.91

38

DECAL - Call your local BRP dealership

516004303

Unavailable

39

Fixed Flange Ass'y | Inclus 38 à 44

417127409

$411.16

40

Roller

417127189

$43.25

41

Pivot Stud

417127294

$13.18

42

Lock Washer 8 mm

250200009

$2.00

43

Spring Pin M3 X 18

250400061

$2.00

44a

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$143.25

44b

Circlip

293370049

$4.57

44c

Bushing ID 41mm OD 45mm X 19mm L

417127318

$17.13

45

Cam Ass'y

417127411

$160.42

46

Circlip

293370049

$4.57

47

Spring, White

417127243

$41.01

48

Torx Screw M8 X 25, Scotch Grip

250000283

$1.85

49

Calibration Ass'y

415129604

$22.49

50

Socket Screw M5 X 25

205052544

$1.54

51

Flat Washer M5

234051410

$0.51

52

Elastic Stop Nut M5

232551414

$0.82

53

Washer

417127155

$7.79

55

Ball Bearing

504152574

$33.55

57

Drive Belt

417300551

$167.13

58

Belt Guard

417300382

$82.81

59

Security label, Belt Guard

516004649

Unavailable

60

Reinforcement

417300380

$5.01

61

Avex Rivet

390909200

$0.28

62

Guide

417300381

$8.73

63

Side Protector

417300356

$12.85

64

Pop Rivet 3/16"

293150103

$0.52

65

Belt Guard Bracket

417300364

$27.58

66

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

67

Belt Guard Bracket | Except Package SWT

417300363

$11.84

68

Hair Pin

114045200

$10.37

69

BELT GUARD BRACKET - Call your local BRP dealership

417300396

Unavailable

70

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.37

71

Protective Rubber

504153054

$15.64

72

PULLEY COVER PLATE - Call your local BRP dealership | Model North America

518326566

Unavailable

73

RETAINER RING - Call your local BRP dealership

417300419

Unavailable

74

Ring Gear_Starter This part replaces 417223738.

417225070

$216.39

75

Hex. Flange Screw M8 X 1.25 X 16

250000533

$2.72

76

SOCKET SET SCREW M6X6 DIN 916 - Call your local BRP dealership

417127203

Unavailable

77

Decal English

516005503

Unavailable

78

Warning Decal | Europe

516003919

$7.42

79

Brake Hose Cover | Except Package SWT

518325626

$27.58
