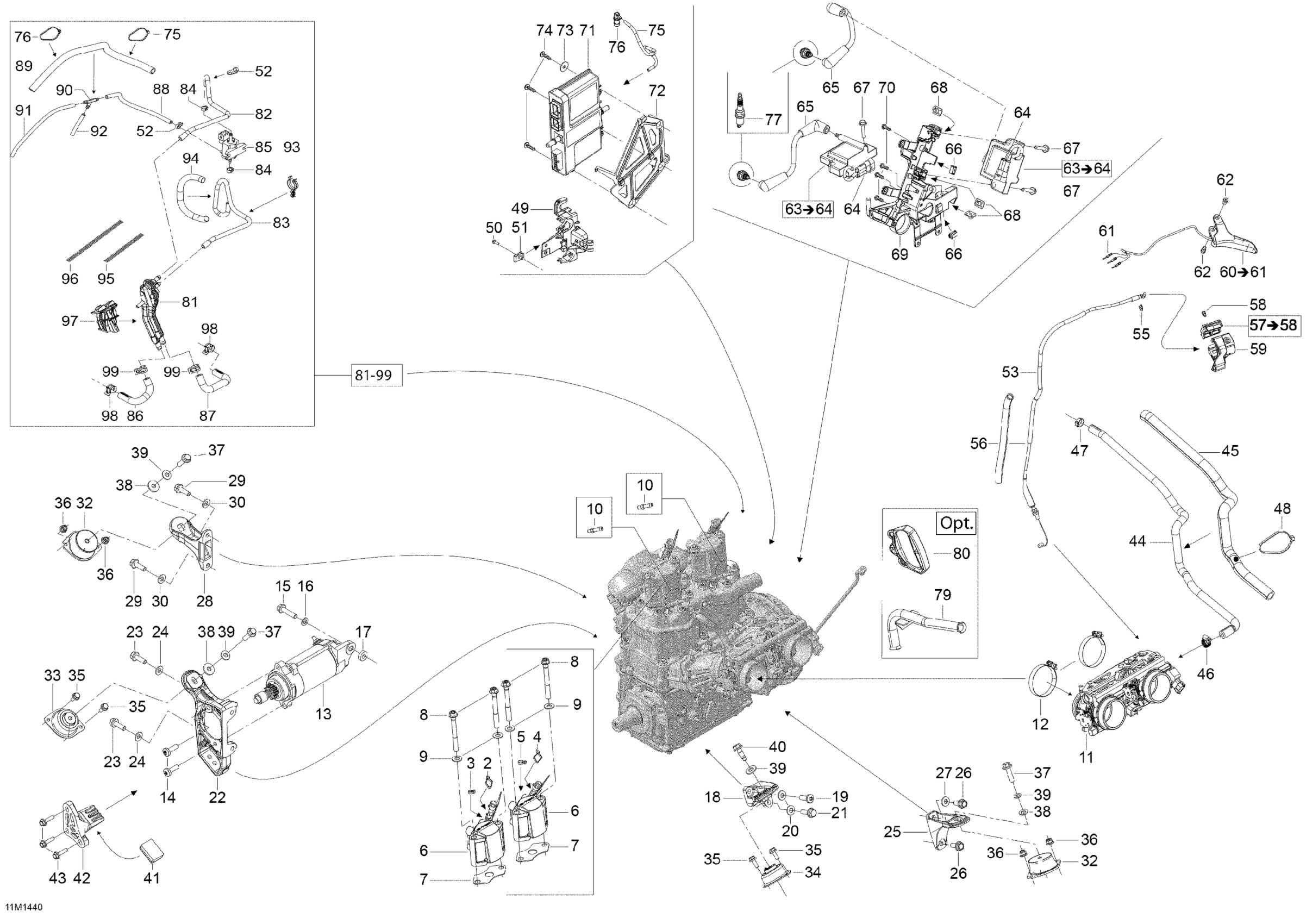

Ski-Doo EXPEDITION SE 600HOE, XU, 2014 01- Engine And Engine Support Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Tie Wrap 142 mm

293750002

$1.25

3

Tie Wrap 142 mm

293750002

$1.25

4

Tie Wrap 142 mm

293750002

$1.25

5

Tie Wrap 142 mm

293750002

$1.25

6

Fuel Injector | Includes 13 to 16b This part replaces 512060727.

512061233

$339.99

7

Gasket

420430930

$4.99

8

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$19.99

9

Flat Washer 10 mm

234001410

$1.26

10

Hose Nipple

420924724

$14.83

11

Throttle Body

420889201

$1.00

12

Gemi Clamp

293650158

$8.57

13

Starter

515178473

$319.49

14

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

15

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.44

16

Flat Washer With Teflon 8 mm

250200008

$3.80

17

Washer

515176500

$11.12

18

Rear Support, PTO

512060478

$31.99

19

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

20

Conical Spring Washer M8

234281474

$1.48

21

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

22

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

Unavailable

23

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

24

Conical Spring Washer M8

234281474

$1.48

25

Rear Support, MAG

512060559

$31.99

26

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

27

Conical Spring Washer M8

234281474

$1.48

28

Front Support, MAG

512060469

$31.99

29

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

30

Conical Spring Washer M8

234281474

$1.48

32

Rubber Mount

512060729

$65.99

33

Rubber Mount

512060387

$46.99

34

Rubber Mount

512060448

$51.99

35

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

37

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

38

Yellow, Washer

503183200

$3.19

39

Conical Spring Washer M8

234281474

$1.48

40

Hex. Flange Screw M8 X 1.25 X 25

250000796

$2.11

41

Stopper

512060627

$10.33

42

Stopper Support

512060576

$29.49

43

Hex. Flange Screw M6 X 25

207562544

$1.69

44

FORMED HOSE OUTPUT TB - Call your local BRP dealership

509000793

Unavailable

45

Tubing 16 Mm 1000Mm Long

219704408

$7.49

46

Tridon Gear Clamp

293650172

$3.09

47

Crimp Clamp, 15.3-706R

293650047

$3.29

48

Tie Wrap 368 mm

293750008

$1.04

49

Solenoid Support

512060298

$14.22

50

Hex.Flange Screw M5 X 20

207652044

$1.90

51

Panel Nut M5 X 0.8

250000958

$4.23

52

Tie Wrap 94 mm | 4X4

293750001

$1.03

53

Throttle Cable

512060633

$110.99

55

Circlip

414274500

$0.90

56

Was 409901700 Tubing (9 mm)

219704399

$84.99

57

Upper Housing

512060859

$8.89

58

Socket Set Screw M8 X 10

414440800

$4.12

59

Lower Housing

512060860

$17.53

60

Handle Ass'y

512061250

$124.99

61

Male Terminal

515175232

$1.58

62

Flange Screw

732601143

$4.12

63

Ignition Coil

512060953

$132.49

64

Housing

710000568

$11.12

65

Ignition Cable, 177mm long

512061126

$28.49

66

Clip

710000992

$4.29

67

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.22

68

Nut Welded, M6

293100003

$9.12

69

Ignition Coils Support

512060888

$11.60

70

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

71

Calibrated Module

512060780

$749.99

72

Calibrated Module Support

512060858

$14.22

73

Flat Washer

250200040

$1.90

74

Truss Head Torx Screw K50 X 20

250000297

$2.11

75

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

76

Male Connector

414814100

$2.22

77

Spark Plug NGK PZFR6F This part replaces 415129375.

415130430

$30.49

79

Tubing

512060451

$47.99

80

Starter Grip

512060136

$14.83

81-99

Not Available As Spare Part - Friction Washer

Unavailable

81

Manifold

512060692

$45.99

82

Polyurethane Hose 10000Mm Long

219704410

$56.99

83

Polyurethane Hose 10000Mm Long

219704410

$56.99

84

Oetiker Gear Clamp

293650043

$3.39

85

Solenoid Valve

270600005

$116.49

86

LH Formed Hose

512060695

$8.29

87

RH Formed Hose

512060694

$8.29

88

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

89

Was 409901700 Tubing (9 mm)

219704399

$84.99

90

T-Fitting

293710068

$8.29

91

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

92

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

93

HOSE SUPPORT - Call your local BRP dealership

512060762

Unavailable

94

Tubing 10 MM 1000MM Long

219704407

$2.79

95

SPRING - Call your local BRP dealership

512060814

Unavailable

96

SPRING - Call your local BRP dealership

512060807

Unavailable

97

Manifold Support

512060769

$11.60

98

Norma Spring Clamp

293650214

$15.89

99

Crimp Clamp, 15.3-706R

293650047

$3.29
