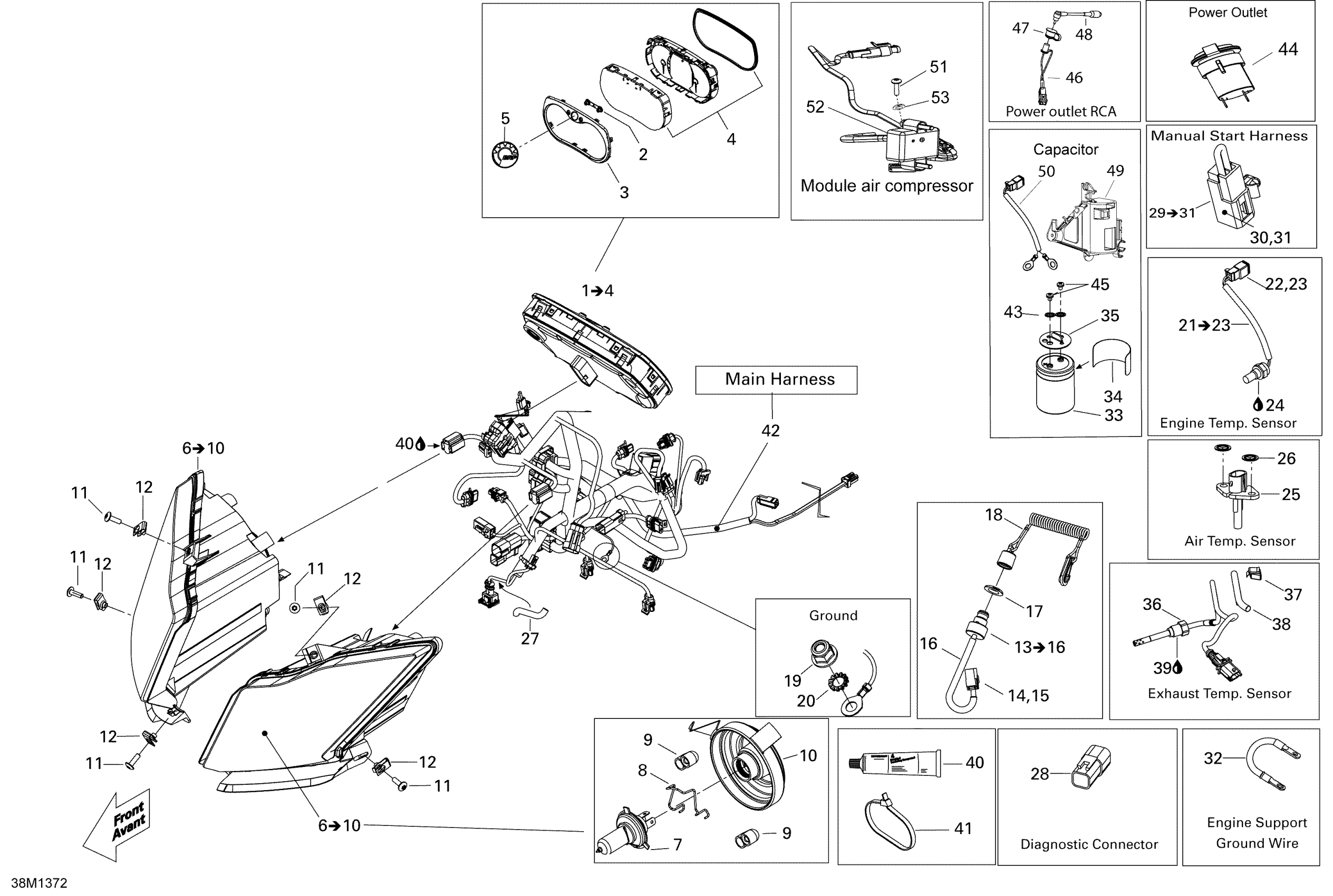

Ski-Doo EXPEDITION SE 600HOE, REV XU, 2013 10- Electrical System Diagram

#

Description
Price

1

Speedometer | Includes 10 to 10c

515177910

$659.99

2

Speedometer Button | XTP

415129355

$15.80

3

Gauge Ring

415129370

$11.49

4

Lens | XTP

415129349

$24.49

5

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

6

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$149.99

6

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$149.99

7

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Cap

515176498

$12.99

10

Rubber Cap Protector

219800280

$19.49

11

Torx Screw M6 X 20

250000722

$1.68

12

Panel Nut M6 X 1.0

250100198

$2.11

13

DESS Switch

515177249

$114.99

14

Male Terminal

515175232

$1.58

15

Male Housing, 3 Circuits

515175494

$16.18

16

Tubing 12 mm

409902000

Unavailable

17

Safety Nut (DESS Switch)

278002963

$3.28

18

DESS

515178284

$84.99

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

20

External Serrated Lock Washer 6 mm

234461608

$1.15

21

Temperature Sensor This part replaces 420664508.

420664509

$149.99

22

Female Terminal Housing, 2 Circuits

515175670

$8.39

23

Female Terminal

278000632

$2.09

24

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

25

Air Temperature Sensor

515176366

$19.99

26

Push Nut

389804300

$0.53

27

Tubing 6 Mm 3000Mm Long

219704425

$13.75

28

Diagnostic Connector

278002704

$19.49

29

MANUAL START HARNESS - Call your local BRP dealership | Includes 29 to 31

515176661

Unavailable

30

Male Terminal

515175232

$1.58

31

Male Housing, 2 Circuits

710000667

$8.32

32

Ground Wire

515177289

$26.99

33

Capacitor

515177272

$90.99

34

Capacitor Decal

516004570

Unavailable

35

Cap

515177193

$4.69

36

Temperature Sensor

514054641

$219.99

37

Clip

414227300

$1.67

38

Tubing 6 Mm 3000Mm Long

219704425

$13.75

39

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

40

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

41

Tie Wrap 94 mm | 4X4

293750001

$1.03

41

Tie Wrap 142 mm

293750002

$1.25

41

Tie-Rap 180 mm

414115200

$0.11

41

Tie Wrap 368 mm

293750008

$1.04

42

WIRING HARNESS MAIN - Call your local BRP dealership | Includes 1 to VC

515177077

Unavailable

43

Lock washer | Quest XT 650.

250200026

$1.90

44

DC Outlet

710001248

$37.99

45

Socket Head Screw M10 X 32

250000462

$2.11

46

Visor Harness

515177837

$33.99

47

Cap

572103300

$10.49

48

Extension

515175851

$11.12

49

Capacitor Support

515176607

$20.99

50

Capacitor Harness

515176605

$33.99

51

Hex. Flange Screw M6 X 35

207063544

$1.37

52

Compressor Module | With Air Suspension

515177125

$539.99

53

Flat Washer 6 mm

234061410

$1.36
