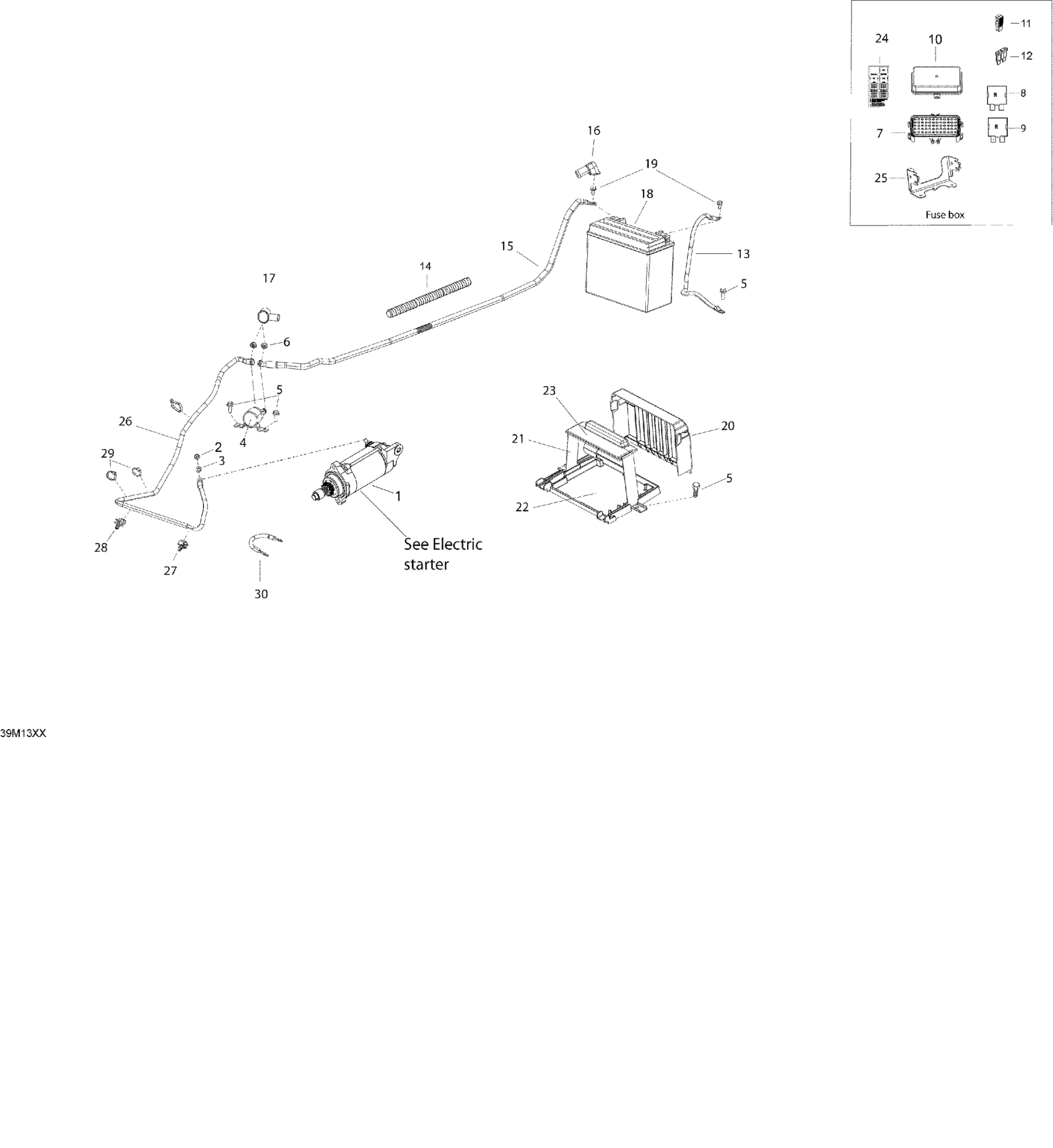

Ski-Doo EXPEDITION SE 600HOE, REV XU, 2013 Battery And Starter Diagram

#

Description
Price

1

Starter

515178473

$319.49

2

Elastic Stop Nut M6

232561434

$1.55

3

Flat Washer 6 mm

234061410

$1.04

4

Starter Relay

515176011

$51.97

5

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Relay, 30 AMP

515176774

$19.20

9

Relay, 50 AMP

515176775

$13.86

10

Fuse Cover

710001026

$17.52

11

FUSE TOOL - Call your local BRP dealership

515175811

Unavailable

12

Little Fuse, 5 Amperes

710000742

$7.24

12

Little Fuse, 7.5 Amperes

710000743

$8.02

12

Little Fuse, 10 Amperes

710000744

$7.24

12

Little Fuse, 15 Ampere

710000745

$6.77

12

Little Fuse, 20 Amperes

710000746

$6.77

12

Little Fuse, 30 Amperes

710000747

$6.77

13

Ground Wire

515176780

Unavailable

14

HOUSING - Call your local BRP dealership

M28015

Unavailable

15

Battery Cable

515176805

Unavailable

16

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

17

Protection Cap

570151000

$18.43

18

Battery | Includes 900 to 900a

515176151

$174.17

19

Battery Bolt Kit

250000282

$2.95

20

Battery Cover

510005079

$17.66

21

Battery Strap

510005143

$74.58

22

Battery Support

515176804

$74.58

23

Strap Cover | 30 ampere/hour

605356094

$8.62

24

FUSE DECAL ETEC - Call your local BRP dealership

516005892

Unavailable

25

FUSEBOX SUPPORT - Call your local BRP dealership

515177073

Unavailable

26

Start Cable

515176806

$35.35

27

Tie Rap Mount (screwable)

515176795

$5.11

28

Tie-Rap

605627000

$3.68

29

Tie-Rap 180 mm

414115200

$0.09

30

Ground Wire

515177289

$25.35
