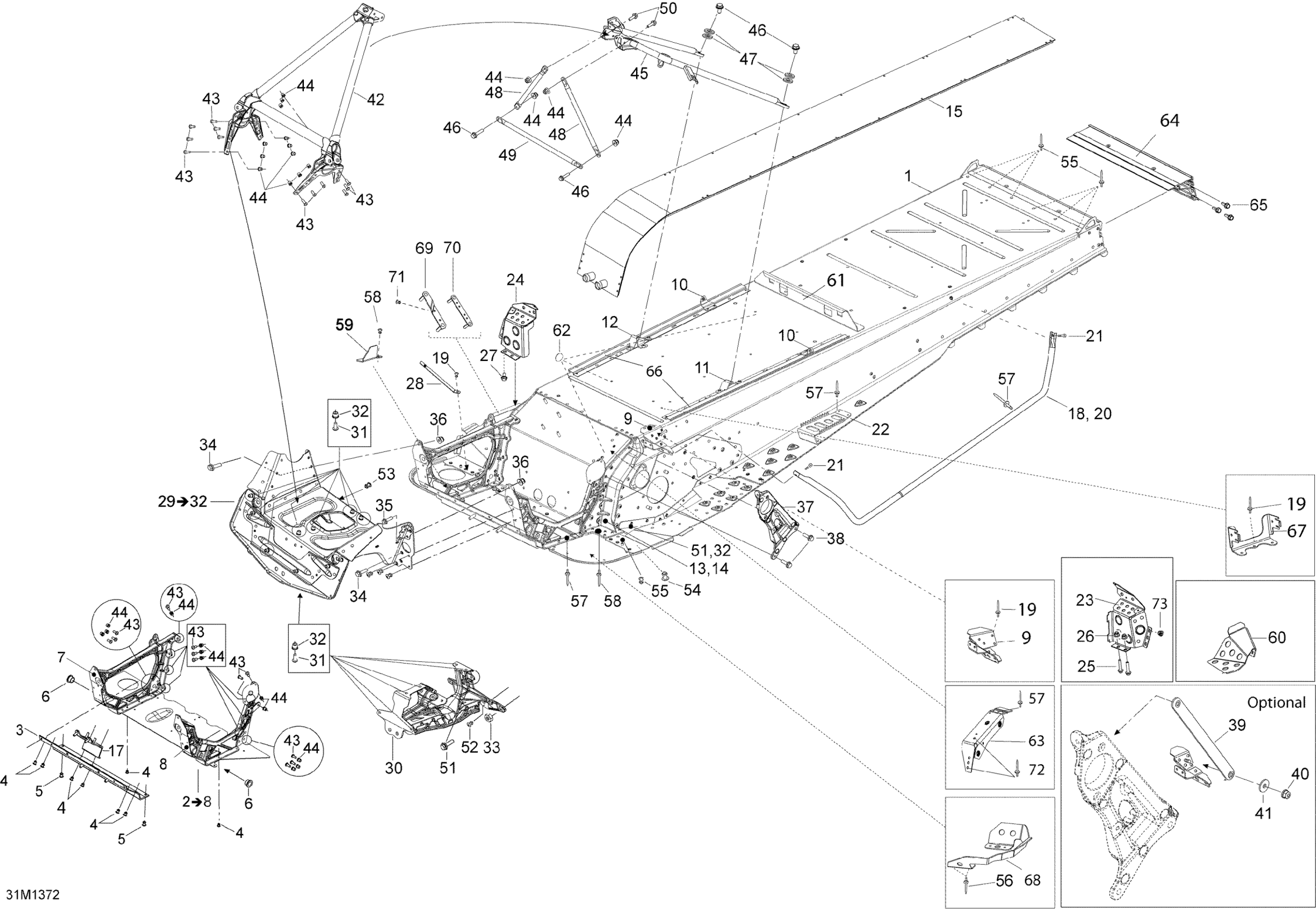

Ski-Doo EXPEDITION SE 600HOE, REV XU, 2013 Frame Diagram

#

Description
Price

1

Frame XU E-TEC SC-5 Black | Includes 1 - 12

518327377

Unavailable

2

Module E | Includes 2 To 12

518328186

$907.66

3

Front Member

518326198

$59.97

4

Hemlock Rivet, 6.5 mm

293150119

$4.00

5

Hemlock Rivet 6.5 mm

293150120

$7.23

6

Leg Bushing

505072690

$5.92

7

RH Member

518326795

$259.97

8

LH Member

518326796

$210.74

9

Fastening Bracket

605355235

Unavailable

10

Seat Box Bracket

518325987

Unavailable

11

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

Unavailable

12

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

Unavailable

13

LH Frame Corner

518325524

$52.28

14

FRAME CORNER RH - Call your local BRP dealership

518325526

Unavailable

15

Radiator

509000975

$803.05

17

MAG Engine Support | Includes 10a to 10a1

518325943

$26.12

18

LH Footboard Support Tube

518326963

$126.89

19

Avex Rivet

390909200

$0.29

20

RH Footboard Support Tube

518326964

$126.89

21

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

22

Footrest

520000492

$18.43

23

Toe hold L.H. | Package SE

518327375

Unavailable

24

Black RH Toe Hook

518327376

$39.97

25

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

27

Torx Screw M6 X 20

250000722

$1.34

28

SPRING BRACKET - Call your local BRP dealership

514054616

Unavailable

29

Cross Member | Package LE

518328392

$604.58

30

Front Suspension Support

518327487

$267.66

31

Hex. Flange Screw M6 X 20

207662044

$1.66

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

33

Hex. Flange Elastic Nut M8

233281414

$1.14

34

Hexagonal Head Screw

210262050

$1.74

35

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

250000450

Unavailable

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

37

PULLEY SUPPORT - Call your local BRP dealership

518327372

Unavailable

38

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.26

39

DRAFT BAR - Call your local BRP dealership | Optional

518326449

Unavailable

40

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

41

Flat Washer M8

234081430

$1.74

42

Front Member

518326970

$276.12

43

Hex. Flange Screw M6 X 20

207662044

$1.66

44

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

45

Upper Support Tube Welded M6 This part replaces 518326103.

518329107

Unavailable

46

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

47

Not Available As Spare Part - Friction Washer

Unavailable

48

Upper Lateral Column Support

518325114

$20.74

49

Center Column Support

518325115

$20.74

50

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

250000450

Unavailable

51

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

52

Ornit Rivet 6,5 X 14.5

293150266

$1.94

53

Full Moon Dart 5 mm

293730042

$2.12

54

Black, Dart

414644300

$0.78

55

Avex Rivet

390909200

$0.29

56

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

57

Avex Rivet

390909100

$0.29

58

Rivet Hucklok

293150163

$2.82

59

Muffler support plate

518326642

Unavailable

60

Brake Hose Cover | Except Package SWT

518325626

$28.43

61

BATTERY SUPPORT PLATE - Call your local BRP dealership

518325986

Unavailable

62

Adhesive Patch

518325560

$4.34

63

Clinch Nut plate

518326430

$45.99

64

Rear Profile

518328748

$217.66

65

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.26

66

Fastening rail

518326107

$15.35

67

FUSEBOX SUPPORT - Call your local BRP dealership

515177073

Unavailable

68

PULLEY COVER PLATE - Call your local BRP dealership | Model North America

518326566

Unavailable

69

Gearbox Front Plate

518326123

Unavailable

70

Gearbox Rear Plate

518326124

$15.26

71

Pop Rivet 3/16"

390402200

$0.26

72

Not Available As Spare Part - Friction Washer

Unavailable

73

Clinch Nut M6 Hexsert

605636003

$4.12
