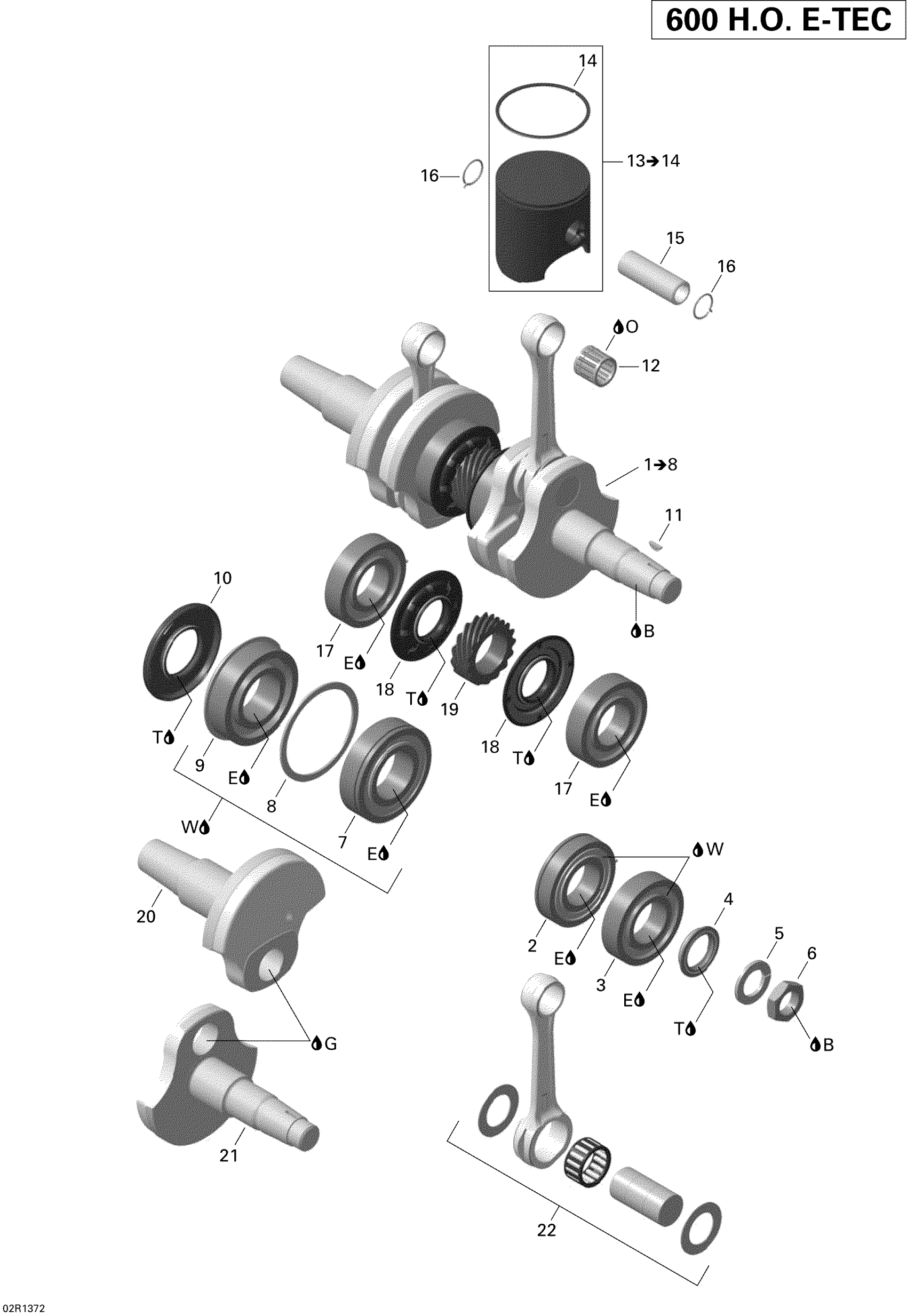

Ski-Doo EXPEDITION SE 600HOE, REV XU, 2013 Crankshaft Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 to 8

420890953

$1,029.99

1

Crankshaft Ass'y | Includes 1 to 8

420890953

$1,029.99

2

Ball Bearing

420832175

Unavailable

3

Ball Bearing 6207 | With drive pin

420832575

$50.74

4

Oil Seal

420931795

$16.89

5

Lock Washer, 22 mm

420945759

$1.55

6

Hex. Nut, M22 X 1.5

420842239

$14.27

7

Ball Bearing | With drive pin

420832602

$96.89

8

Washer

420926190

$9.37

9

Ball Bearing | With drive pin

420832702

$86.12

10

Oil Seal | Included in gasket kit

420931284

$23.05

11

Woodruff Key

420246015

$3.11

12

Needle Bearing

420832445

$26.12

13

Piston Ass'y With Rings, 71.87 mm | Includes 13 to 14

420892388

$234.99

14

Semi-Trapez Ring

420815295

$65.99

15

Piston Pin

420916412

$31.99

16

Piston Circlip

420845106

$3.52

17

Ball Bearing 6207 | With drive pin

420832575

$50.74

18

Oil Seal

420931455

$34.58

19

CENTRAL GEAR - Call your local BRP dealership

420834355

Unavailable

20

CRANKSHAFT PTO - Call your local BRP dealership

420818709

Unavailable

21

CRANKSHAFT MAG - Call your local BRP dealership

420819232

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

B

Loctite 243, 10 ml

293800060

$20.77

E

Loctite 8151, Antiseize Lubricant, 8 oz

619600013

Unavailable

G

Loctite 609, 10 ml

619600012

Unavailable

O

Oil 2T Snow Prem. Mineral 3 This part replaces 619590101.

779277

Unavailable

T

Petamo Grease, GHY133N, 400 g

619600023

Unavailable

W

Isoflex Grease, TOPAS NB52, 50 g

619600025

Unavailable
