Description

Price

1

LH Switch Housing

515178197

$264.99

2

Ring Terminal

515175504

$9.12

3

Female Terminal Housing, 6 Circuits

515175543

$9.49

3

Female Terminal

515175231

$4.39

4

Female Terminal Housing, 4 Circuits

515175845

$8.49

4

Female Terminal

515175231

$4.39

5

Housing

710001928

$16.86

6

Female Housing, 12 Circuits

710001930

$15.80

7

Housing Plate

515177147

$20.99

8

Torx Screw

250000671

$1.01

9

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

10

Male Terminal

515175232

$1.58

11

Kill Switch Support

515176825

$10.49

12

Torx Screw #8-18

250000263

$1.04

13

Pan Screw Forming, 7500C

250000690

$2.11

14

Male Terminal Housing, 6 Circuits

515175662

$8.79

15

Male Terminal Housing, 4 Circuits

515175846

$8.79

16

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

17

Heated Film, 25W

506152428

$39.99

18

Male Terminal

515175232

$1.58

19

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

20

Tie-Rap 180 mm

414115200

$0.11

21

Not Available As Spare Part - Friction Washer

Unavailable

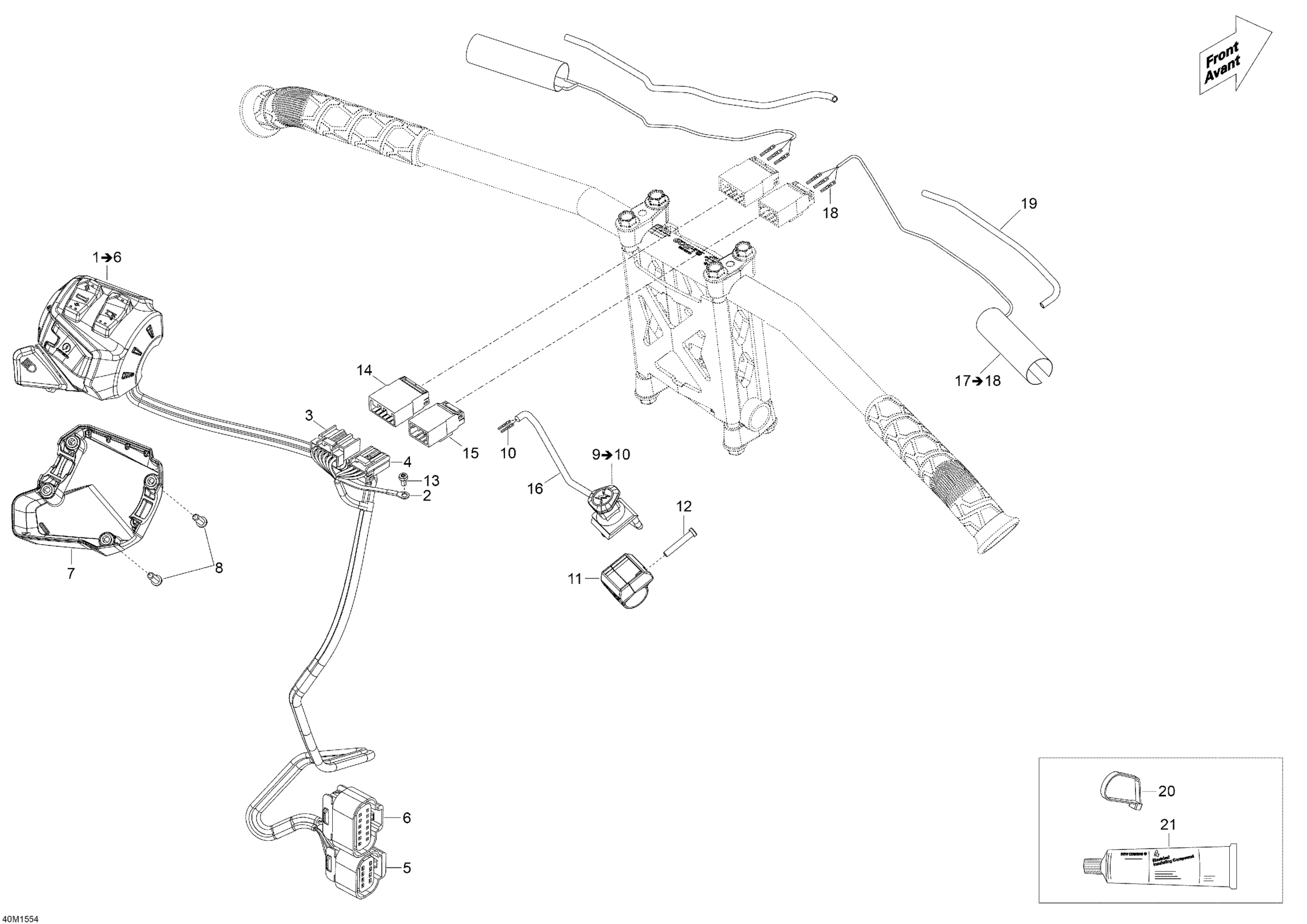

Ski-Doo Expedition SE 600 E-TEC, 2015 10- Steering Wiring Harness _40M1554 Diagram

LH Switch Housing

Ring Terminal

Female Terminal Housing, 6 Circuits

Female Terminal

Female Terminal Housing, 4 Circuits

Female Terminal

Housing

Female Housing, 12 Circuits

Housing Plate

Torx Screw

Emergency Stop Switch | Includes 91 to 91a

Male Terminal

Kill Switch Support

Torx Screw #8-18

Pan Screw Forming, 7500C

Male Terminal Housing, 6 Circuits

Male Terminal Housing, 4 Circuits

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

Heated Film, 25W

Male Terminal

Vinyl Tubing, Low Temp 3000Mm Long

Tie-Rap 180 mm

Not Available As Spare Part - Friction Washer
