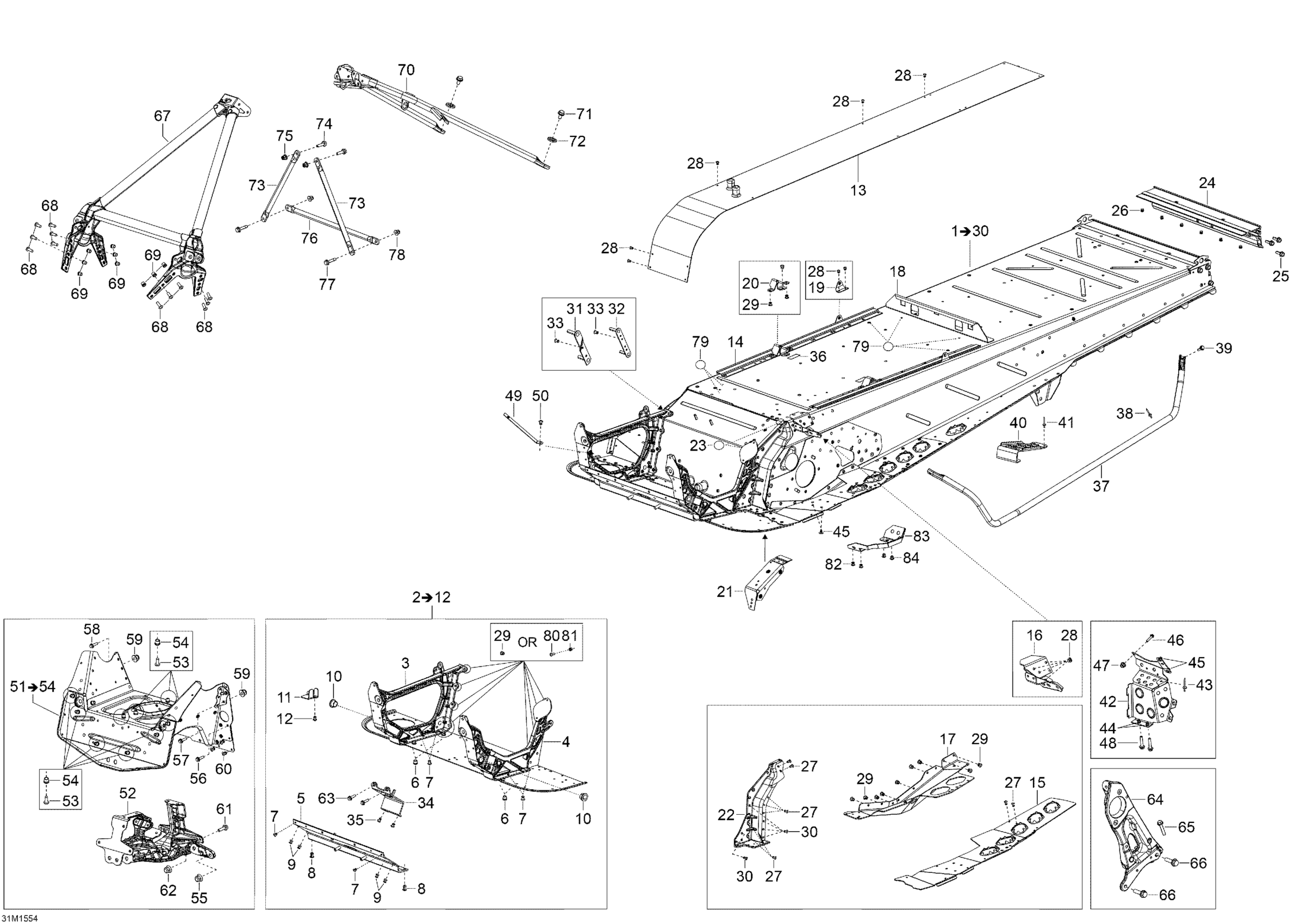

Ski-Doo Expedition SE 600 E-TEC, 2015 Frame _31M1554 Diagram

#

Description
Price

1

FRAME - Call your local BRP dealership | Includes 1 To 30

518328203

Unavailable

2

Module E | Includes 2 To 12

518328186

$880.57

3

RH Member

518326795

$252.21

4

LH Member

518326796

$204.45

5

Front Member

518326198

$58.18

6

Clinch Nut Hexsert M8

605636002

$7.09

7

Avex Rivet

390909100

$0.28

8

Hemlock Rivet 6.5 mm

293150120

$7.01

9

Hemlock Rivet, 6.5 mm

293150119

$3.88

10

Leg Bushing

505072690

$5.75

11

Muffler Support

518328194

$16.39

12

Rivet Hucklok

293150163

$2.73

13

Radiator

509000975

$779.07

14

Fastening rail

518326107

$14.90

15

FOOTREST LH - Call your local BRP dealership

518326564

Unavailable

15

FOOTREST RH - Call your local BRP dealership

518326565

Unavailable

16

Fastening Bracket

605355235

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

BATTERY SUPPORT PLATE - Call your local BRP dealership

518325986

Unavailable

19

Seat Box Bracket

518327457

$29.07

20

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

Unavailable

20

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

Unavailable

21

Clinch Nut plate

518326430

$44.75

22

LH Frame Corner

518325524

$50.72

22

RH Frame Corner

518328024

$50.72

23

Adhesive Patch

518325560

$4.21

24

Rear Profile

518328748

$211.16

25

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

26

Hemlock Rivet, 6.4 mm

293150174

$6.24

27

Avex Rivet

390909100

$0.28

28

Avex Rivet

390909200

$0.28

29

Hemlock Rivet, 6.5 mm

293150119

$3.88

30

Rivet

293150183

$2.00

31

Gearbox Front Plate

518326123

Unavailable

32

Gearbox Rear Plate

518326124

$14.81

33

Pop Rivet 3/16"

390402200

$0.30

34

MAG Engine Support | Includes 10a to 10a1

518325943

$25.34

35

Hemlock Rivet, 6.5 mm

293150119

$3.88

36

RUBBER COVER - Call your local BRP dealership

518326357

Unavailable

37

LH Footboard Support Tube

518326963

$123.10

37

RH Footboard Support Tube

518326964

$123.10

38

Avex Rivet

390909100

$0.28

39

Hex. Flange Screw M6 x 20

207662056

$0.96

40

Black Rear Footrest

520001208

$17.88

41

Rivet 3/16"

293150102

$0.69

42

Toe hold L.H. | Package SE

518327375

Unavailable

42

Black RH Toe Hook

518327376

$38.78

43

Avex Rivet

390909200

$0.28

44

Clinch Nut M6 Hexsert

605636003

$4.00

45

Clinch Nut M6 Hexsert

605636003

$4.00

46

Hex. Flange Screw M6 x 20

207662056

$0.96

47

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

48

Torx Screw M6 X 16

250000223

$2.00

49

SPRING BRACKET - Call your local BRP dealership

514054616

Unavailable

50

Avex Rivet

390909100

$0.28

51

Cross Member | Package SE

518328396

$549.22

52

Front Suspension Support

518327487

$259.67

53

Hex. Flange Screw M6 X 20

207662044

$1.91

54

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

55

Hex. Flange Elastic Nut M8

233281414

$1.31

56

Hexagonal Head Screw

210262050

$2.00

57

Hex. Flange Screw M6 X 25

207662544

$0.61

58

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

59

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

60

Rivet Hucklok

293150163

$2.73

61

Hex. Flange Screw M6 X 20

207662044

$1.91

62

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

63

Hex. Flange Screw M6 X 16

207661644

$0.70

64

Pulley Support

518328434

$126.84

65

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

66

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$4.12

67

Front Member

518326970

$267.88

68

Hex. Flange Screw M6 X 20

207662044

$1.91

69

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

70

Upper Support Tube Welded M6 This part replaces 518326103.

518329107

Unavailable

71

Hex. Flange Screw M6 x 20

207662056

$0.96

72

Not Available As Spare Part - Friction Washer

Unavailable

73

Upper Lateral Column Support

518325114

$20.12

74

Hex. Flange Screw M6 x 20

207662056

$0.96

75

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

76

Center Column Support

518325115

$20.12

77

Hex. Flange Screw M6 X 25

207662556

$4.15

78

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

79

Adhesive Patch

518325560

$4.21

80

Hex. Flange Screw M6 X 20

207662044

$1.91

81

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

82

Avex Rivet

390909200

$0.28

83

PULLEY COVER PLATE - Call your local BRP dealership | Model North America

518326566

Unavailable

84

Pop Rivet 3/16" | DS 650 X

293150104

$0.99
