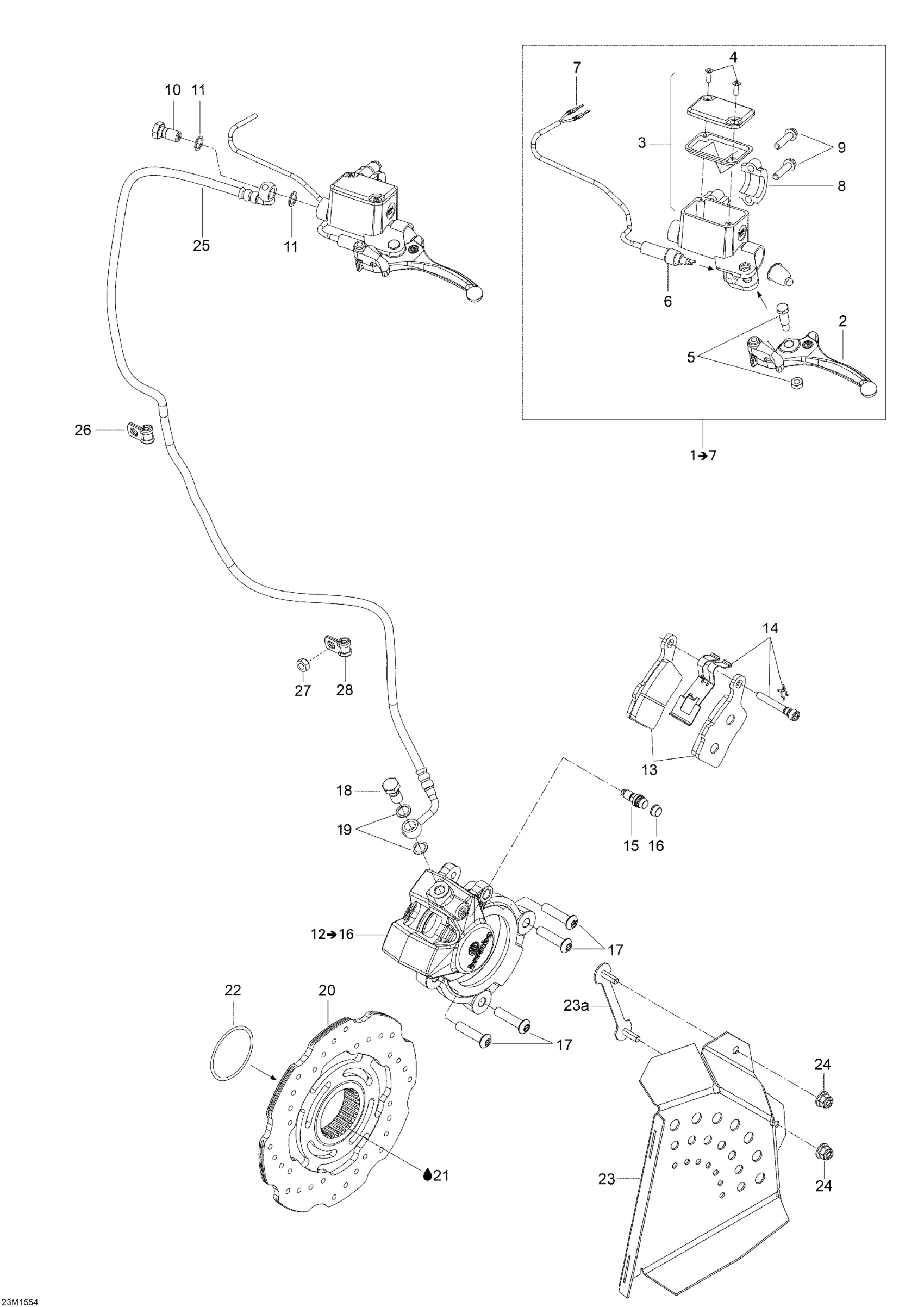

Ski-Doo Expedition SE 600 E-TEC, 2015 06- Hydraulic Brakes _23M1554 Diagram

Master Cylinder Ass'y | Includes 10 to 10h

507032598

$319.99

Lever With Parking Lock

507032476

$99.99

Master Cylinder Reservoir Ass'y | Includes 10c to 10c1

507032478

$109.99

Screw M4 X 20

415129356

$2.22

Pin Ass'y

415030000

$19.99

Microswitch | Grand Touring

507032479

$99.49

Male Terminal

515175232

$1.58

Clamps | Includes 75a to 75b

719000049

$14.83

Hex. Flange Screw M6 X 25

250000447

$2.11

Banjo Bolt

507032551

$5.61

Copper Washer

705601628

$4.44

Brake Caliper | Includes 200 to 200c

507032720

$349.49

Brake Pads Kit

507032473

$52.99

Brake Spring Kit

507032722

$37.99

Bleeder

507032475

$19.99

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

Banjo Bolt

507032551

$5.61

Copper Washer

705601628

$4.44

Disk

507032513

$243.99

Not Available As Spare Part - Friction Washer

Unavailable

O-Ring

293300134

$2.32

Disk Protector | WT

507032537

$60.99

Counter Plate | Includes 505 to 505a

518328661

$19.99

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hose, Steel Braided | WT

507032548

$47.49

Clamp

293650256

$5.49

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Open Clamp

414176000

$1.99
