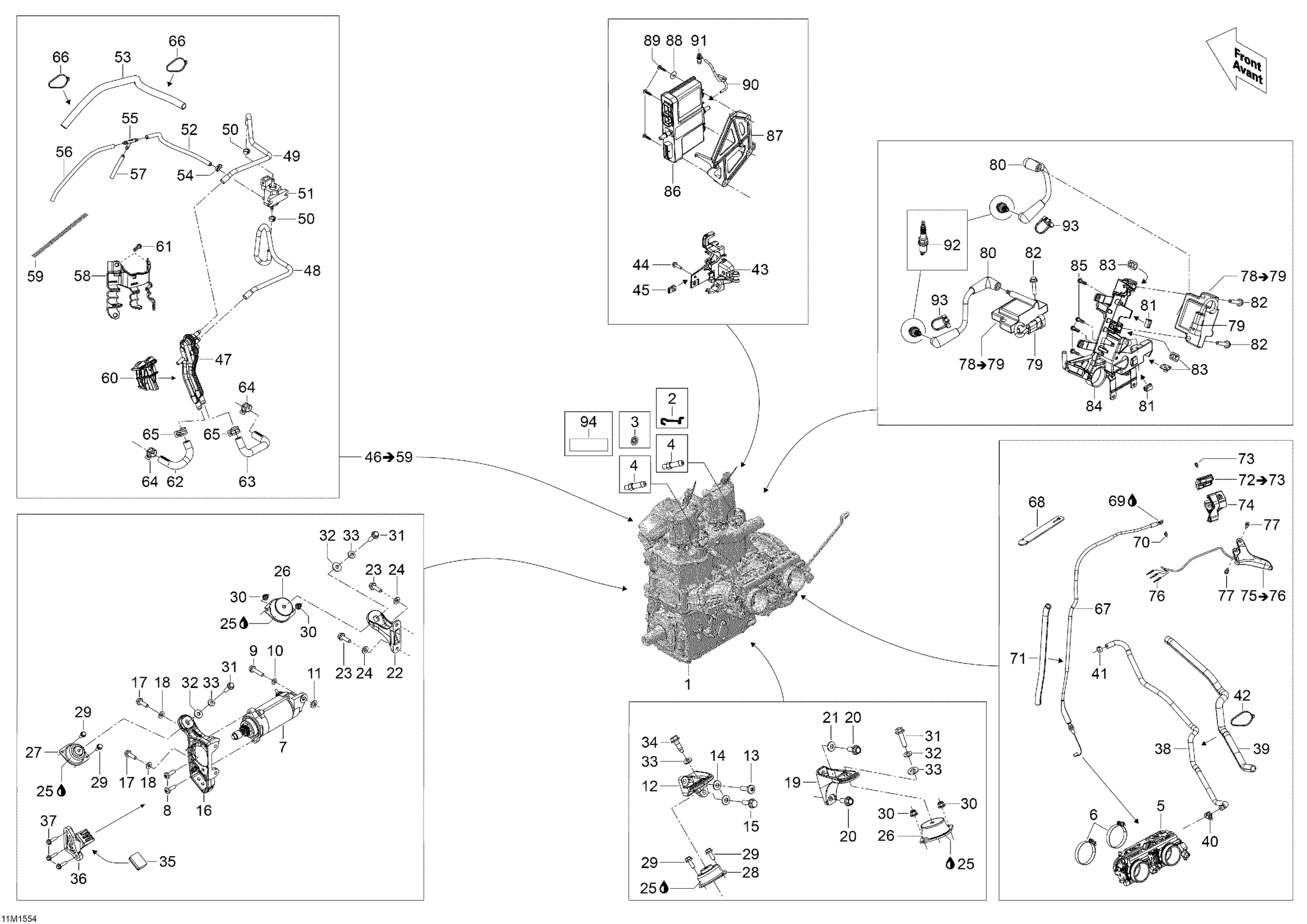

Ski-Doo Expedition SE 600 E-TEC, 2015 01- Engine _11M1554 Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Locker

515177770

$2.21

3

Push Nut

732610072

$2.19

4

Hose Nipple

420924724

$14.83

5

Throttle Body

420889201

$1.00

6

Gemi Clamp

293650158

$8.57

7

Starter

515178473

$319.49

8

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

9

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.44

10

Flat Washer With Teflon 8 mm

250200008

$3.80

11

Washer

515176500

$11.12

12

Rear Support, PTO

512060478

$31.99

13

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

14

Conical Spring Washer M8

234281474

$1.48

15

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

16

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

Unavailable

17

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

18

Conical Spring Washer M8

234281474

$1.48

19

Rear Support, MAG

512060559

$31.99

20

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

21

Conical Spring Washer M8

234281474

$1.48

22

Front Support, MAG

512060469

$31.99

23

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

24

Conical Spring Washer M8

234281474

$1.48

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Rubber Mount

512060729

$65.99

27

Rubber Mount

512060387

$46.99

28

Rubber Mount

512060448

$51.99

29

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

30

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

31

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

32

Yellow, Washer

503183200

$3.19

33

Conical Spring Washer M8

234281474

$1.48

34

Hex. Flange Screw M8 X 1.25 X 25

250000796

$2.11

35

Stopper

512060627

$10.33

36

Stopper Support

512060576

$29.49

37

Hex. Flange Screw M6 X 25

207562544

$1.69

38

FORMED HOSE OUTPUT TB - Call your local BRP dealership

509000793

Unavailable

39

Tubing 16 Mm 1000Mm Long

219704408

$7.49

40

Tridon Gear Clamp

293650172

$3.09

41

Crimp Clamp, 15.3-706R

293650047

$3.29

42

Tie Wrap 368 mm

293750008

$1.04

43

Solenoid Support

512060298

$14.22

44

Hex.Flange Screw M5 X 20

207652044

$1.90

45

Panel Nut M5 X 0.8

250000958

$4.23

46

Not Available As Spare Part - Friction Washer

Unavailable

47

Manifold

512060692

$45.99

48

Polyurethane Hose 10000Mm Long

219704410

$56.99

49

Polyurethane Hose 10000Mm Long

219704410

$56.99

50

Crimp Clamp

293650234

$5.39

51

Solenoid Valve

270600005

$116.49

52

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

53

Was 409901700 Tubing (9 mm)

219704399

$84.99

54

Tie Wrap 94 mm | 4X4

293750001

$1.03

55

T-Fitting

293710068

$8.29

56

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

57

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

58

Hose Support

512060827

$2.11

59

Spring | Not Shown

512060934

$83.49

60

Manifold Support

512060769

$11.60

61

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

62

LH Formed Hose

512060695

$8.29

63

RH Formed Hose

512060694

$8.29

64

Norma Spring Clamp

293650214

$15.89

65

Crimp Clamp, 15.3-706R

293650047

$3.29

66

Tie Wrap 94 mm | 4X4

293750001

$1.03

67

Throttle Cable

512060633

$110.99

68

Rubber Strap

293850117

$7.79

69

Not Available As Spare Part - Friction Washer

Unavailable

70

Circlip

414274500

$0.90

71

Was 409901700 Tubing (9 mm)

219704399

$84.99

72

Upper Housing

512060859

$8.89

73

Socket Set Screw M8 X 10

414440800

$4.12

74

Lower Housing

512060860

$17.53

75

Handle Ass'y

512061250

$124.99

76

Male Terminal

515175232

$1.58

77

Flange Screw

732601143

$4.12

78

Ignition Coil

512060953

$132.49

79

Housing

710000568

$11.12

80

Ignition Cable, 177mm long

512061126

$28.49

81

Clip

710000992

$4.29

82

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.22

83

Nut Welded, M6

293100003

$9.12

84

Ignition Coils Support

512060888

$11.60

85

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

86

Calibrated Module

512060780

$749.99

87

Calibrated Module Support

512060858

$14.22

88

Flat Washer

250200040

$1.90

89

Truss Head Torx Screw K50 X 20

250000297

$2.11

90

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

91

Male Connector

414814100

$2.22

92

Spark Plug NGK PZFR6F This part replaces 415129375.

415130430

$30.49

93

Clamp

512060993

$5.39

94

Aluminum foil

44110

Unavailable
