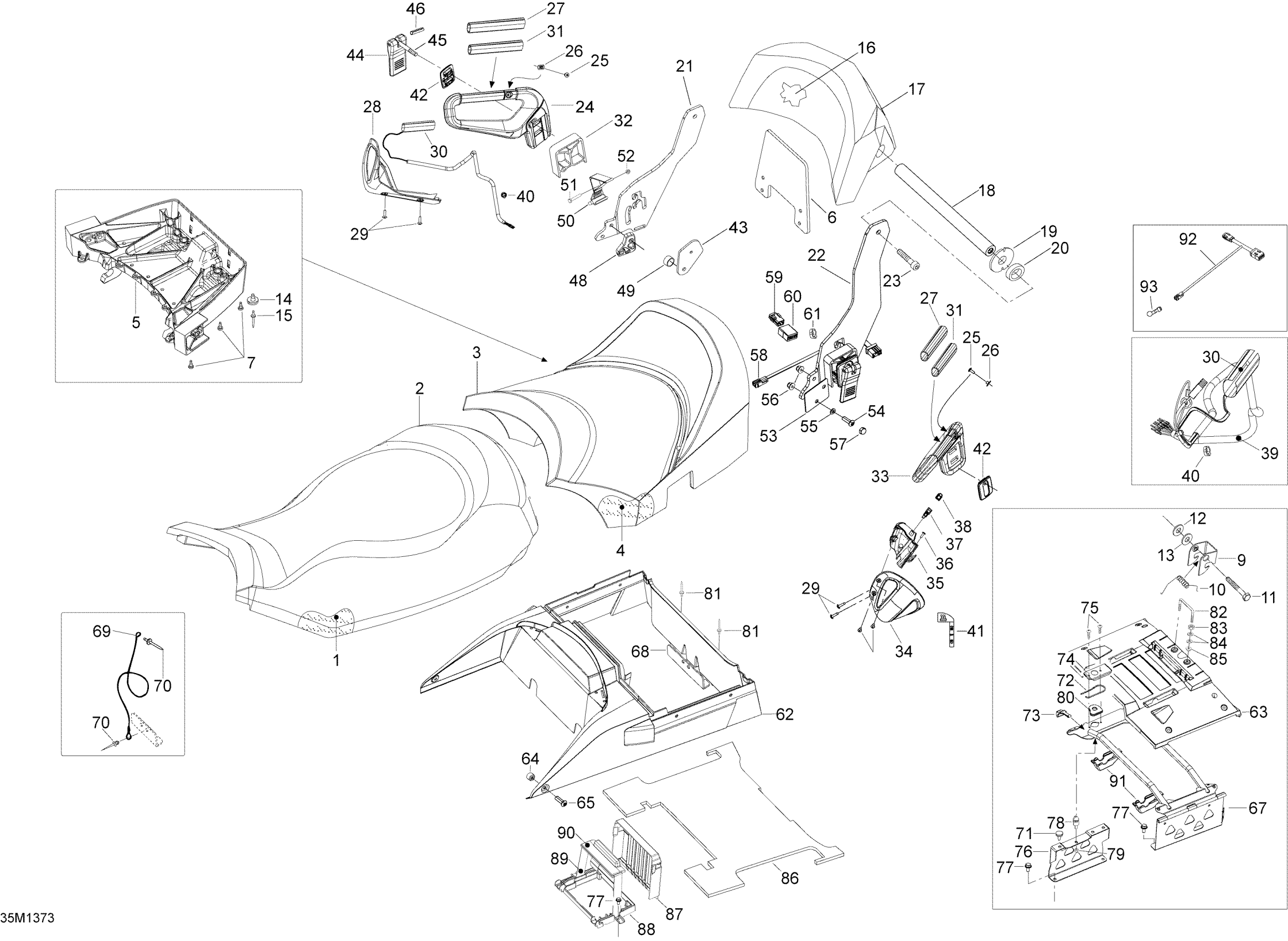

Ski-Doo EXPEDITION SE 12004TEC, REVXU, 2013 09- Seat Diagram

Front Seat Foam | Model-550F

510005807

$449.99

Cover, front

510005722

$209.49

Rear Seat Cover XU

510005320

$343.99

Rear Seat Foam | Model-550F

510005811

$409.99

Seat Base

510004816

$95.99

Backrest Plate

510005330

$69.99

Black, Dart

414644300

$0.98

Latch, Black

708000144

$11.99

Spring

708000369

$9.19

Hex. Screw M6 X 80

207068044

$4.12

Push Nut

732610072

$2.19

Flat Washer 6 mm

234061410

$1.36

RUBBER STOPPER - Call your local BRP dealership

510004903

Unavailable

Pop Rivet 1/8”

293150015

$0.40

FOAM BACKREST - Call your local BRP dealership

510005833

Unavailable

Backrest Cover

510005259

$235.99

Not Available As Spare Part - Friction Washer

Unavailable

LIMITER PLATE - Call your local BRP dealership

510005312

Unavailable

Rubber Shim

510004378

$10.99

RH Arm

510005420

$72.99

LH Arm

510005419

$74.99

Socket Screw BN.HD.ISO.7380

205402546

$4.44

RH HANDLE - Call your local BRP dealership

510005865

Unavailable

Torx Truss Screw M6 X 16

250000721

$1.69

Nut Welded, M6

293100003

$9.12

Handle Grip

510004449

$12.49

RH Deflector

510004415

$27.99

Screw 25MM

250000961

$2.59

Heater

515176393

$63.99

HANDLE REINFORFORCEMENT - Call your local BRP dealership

510004709

Unavailable

Adapter

510004939

$17.99

LH Handle

510005862

$126.99

LH Deflector

510004416

$27.99

Switch Housing

510004566

$13.18

Torx Screw K50 X 16

250000720

$1.69

Rocker Switch

510004413

$8.79

Switch Protector

510004414

$7.99

LH Handle Harness

515176241

$29.99

Tie-Rap 180 mm

414115200

$0.11

Handle Heater Decal

516002835

$13.49

Passenger Handle Trim

510006602

$13.99

Counter Plate

510004990

$31.99

Lock Ass'y | Includes 54 to 57

510004992

$36.99

Lock

5243419

$9.69

Not Available As Spare Part - Friction Washer

Unavailable

Pin

414821400

$7.55

ADAPTER - Call your local BRP dealership

510005151

Unavailable

SLEEVE - Call your local BRP dealership

510005042

Unavailable

Security Lock

510005139

$58.99

Socket Screw HD.DIN.912

205064044

$2.11

Elastic Stop Nut M6

232561434

$1.99

COVER PLATE - Call your local BRP dealership

510004995

$12.49

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086044

Unavailable

Flat Washer 8 mm

234081410

$0.83

Hex. Flange Elastic Nut M8

233281414

$1.47

Cover | Model-T3

28056

$5.89

Seat Wiring Harness This part replaces 515177209.

515179606

$95.99

Male Housing, 3 Circuits

515175494

$16.18

Male Terminal Housing, 8 Circuits

515175817

$8.79

Tie-Rap 180 mm

414115200

$0.11

Storage Box

510006243

$234.99

Storage Box Cover

510006244

$38.99

Bushing

510005147

$12.99

Torx Screw M6 X 12

250000454

$4.44

Lock tube

510005714

$429.99

Cable Support Plate

510005156

$19.49

Seat Retainer Cable

293750070

$12.99

Pop Rivet 3/16"

390402200

$0.35

Plug

605452114

$9.19

Latch Spring

269700017

$9.19

Puller

510005072

$21.99

Lock Pin Cover

510005698

$20.49

Forming Screw M5 x 16

250000676

$1.01

LOCKING PLATE (FRAME) - Call your local BRP dealership

510004998

Unavailable

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

LOCK PIN - Call your local BRP dealership

605452035

$24.99

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Lock Pin Guide

510005044

$15.80

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

FASTENER PIN - Call your local BRP dealership

510004876

Unavailable

Hex. Nut M6

250000135

$0.51

Washer

20117

$6.39

Elastic Stop Nut M6

232561434

$1.99

Foam

510005043

$69.99

Battery Cover

510005079

$19.49

Battery Support

515176804

$78.99

Battery Strap | 30 ampere/hour

510005250

$82.99

Strap Cover | 30 ampere/hour

605356094

$10.99

Cover

510004999

$18.99

Seat Wiring Harness This part replaces 515177210.

515179607

$99.99

Cap

572103300

$10.49
