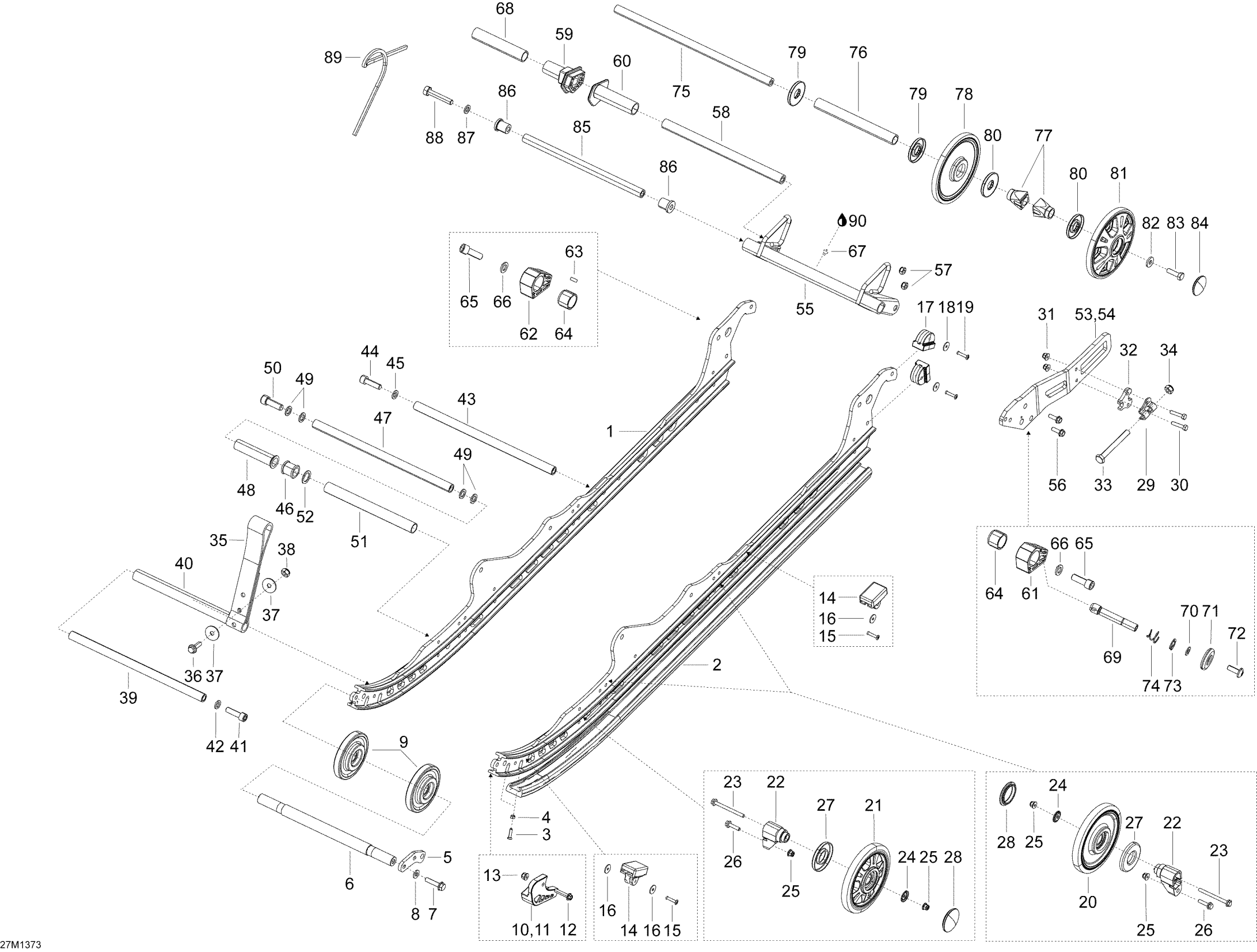

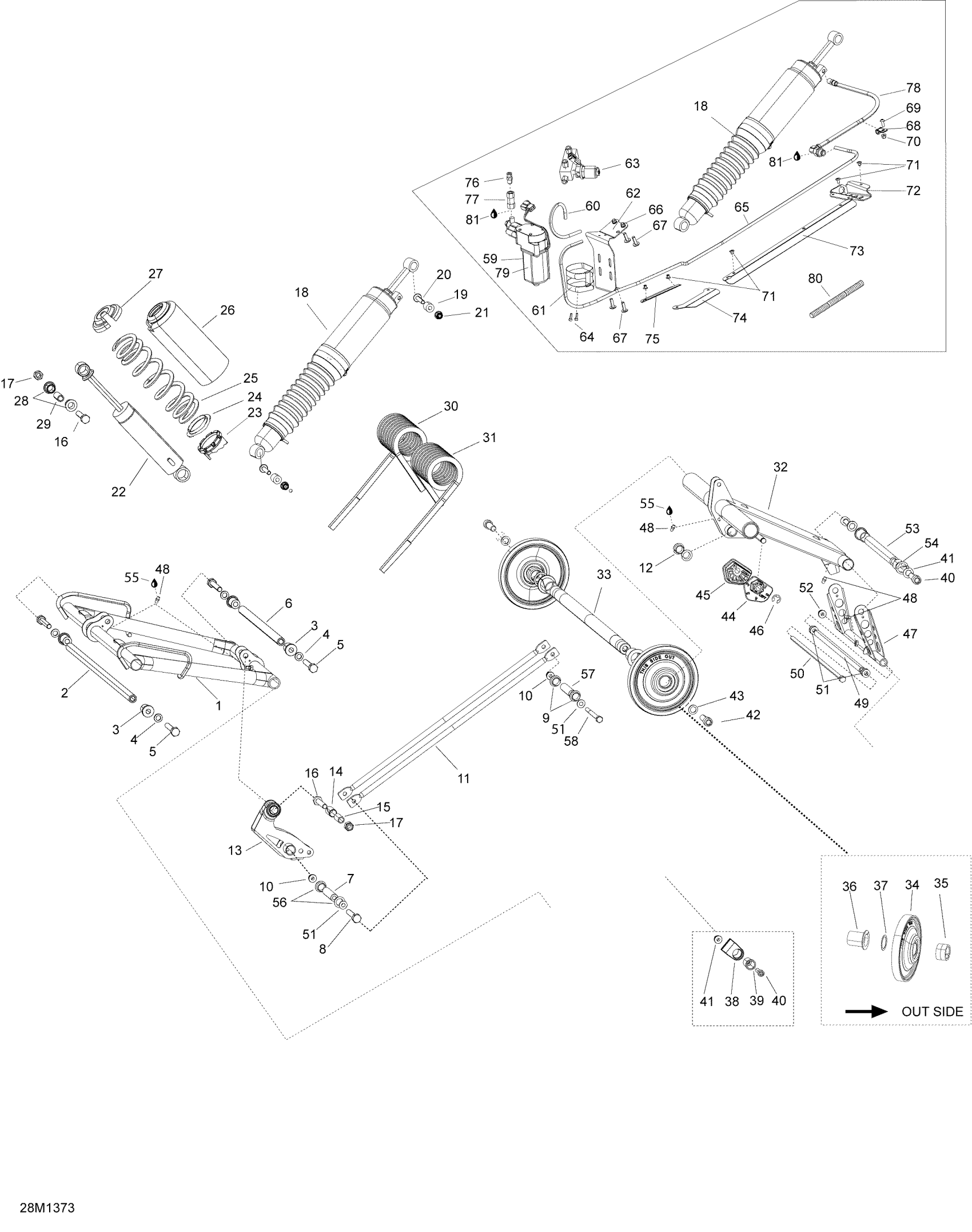

Ski-Doo EXPEDITION SE 12004TEC, REVXU, 2013 Rear Suspension Diagram

#

Description
Price

1

Front Arm Ass'y | Includes 1400 to 1400a

503193274

$222.49

2

Upper Shaft

503191391

$36.99

3

Bushing

503189324

$14.15

4

Washer

503189564

$0.74

5

SCREW-HEX.CAPDIN.931 S.GRIP - Call your local BRP dealership

250000471

Unavailable

6

Lower Shaft

503191390

$28.99

7

Bar Axle (Short)

503190113

$38.99

8

Hex. Screw M8 X 130

230083044

$7.41

9

Swivel Bushing

503191555

$7.83

10

Hex. Flange Elastic Nut M8

233281414

$1.47

11

Link Rod

503193026

$28.99

12

Spacer

503190114

$19.99

13

Rocker

503192211

$83.99

14

Bushing

503193037

$16.18

15

Bushing | Includes 240d to 240d1

503189282

$4.34

16

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

17

Elastic Locking Nut M10 X 1.5

233601416

$1.69

18

Rear Shock Ass'y | Includes 57 to 59

503193000

$716.99

19

Bushing

414936000

$13.99

20

Hex. Flange Screw M8 X 40

207684044

$1.48

21

Hex. Flange Elastic Nut M8

233281414

$1.47

22

Center Shock

503192266

$164.49

23

Adjustment Cam

505073625

$12.99

24

Spring Guide

503187500

$10.49

25

Black, Spring

503189686

$67.99

26

Protector

503193663

$37.99

27

Spring Stopper

706200881

$12.99

28

Urethane Bushing

503189117

$8.19

29

Bushing | Includes 240d to 240d1

503189282

$4.34

30

Black RH Square Spring

503192377

$111.49

31

Black LH Square Spring

503192378

$111.49

32

Rear Arm

503191398

$312.49

33

Upper Shaft

503191405

$94.99

34

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$48.49

35

Retaining Ring

503191099

$8.29

36

CUSHION - Call your local BRP dealership

503190619

$4.49

37

Washer

503190328

$12.65

38

Spring Support Kit

861805547

$10.49

39

Spring Support Kit

861805547

$10.49

40

Socket Head Screw M8 X 25

205082544

$1.15

41

Hex. Flange Elastic Nut M8

233281414

$1.47

42

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

43

Washer

503189276

$3.28

44

LH Cam Adjuster

503191565

$16.49

45

RH Cam Adjuster

503191566

$16.49

46

E-Circlip

293370013

$0.65

47

Pivot Arm | Includes 3000j to 3000j3

503195154

$104.99

48

Grease Fitting

408200700

$3.49

49

Axle Pivot

503191396

$80.49

50

Bolt 369MM

503195156

$25.99

51

Washer

503189157

$3.28

52

Hex. Flange Elastic Nut M8

233281414

$1.47

53

Lower Shaft

503192330

$45.99

54

Cushion

503191640

$5.93

55

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

56

Spacer

503190114

$19.99

57

Axle Bar (Long)

503190643

$17.39

58

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086044

Unavailable

59

Compressor

706001349

$469.99

60

Hose 4.32Mm 3000Mm Long

219704415

$55.99

61

Compressor Bracket

503193103

$4.69

62

SUPPORT - Call your local BRP dealership

503193484

Unavailable

63

Air manifold Ass'y

503193009

$339.99

64

Socket Head Screw M6 X 20, Scotch Grip

205562044

$2.11

65

Hose 4.32Mm 3000Mm Long

219704415

$55.99

66

Clinch Nut M6 Hexsert

605636003

$4.23

67

Torx Screw M6 X 20

250000722

$1.68

68

Clamp

293650256

$5.49

69

Torx Screw M5 X 14

235551494

$7.51

70

Hex. Flange Elastic Nut M5

233251414

$1.04

71

Rivet 3/16"

293150102

$0.70

72

BRACKET - Call your local BRP dealership

503193004

Unavailable

73

Hose Protector

503193006

$12.99

74

Hose Protector

503193007

$11.49

75

HOSE PROTECTOR PAINTED - Call your local BRP dealership

503193011

Unavailable

76

Connector

706000869

$34.99

77

Check Valve

706000940

$37.99

78

PNEUMATIC HOSE ASS'Y - Call your local BRP dealership

503191933

Unavailable

79

Compressor Isolator

706000631

$13.99

80

Tubing 6 Mm 3000Mm Long

219704425

$13.75

81

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99
