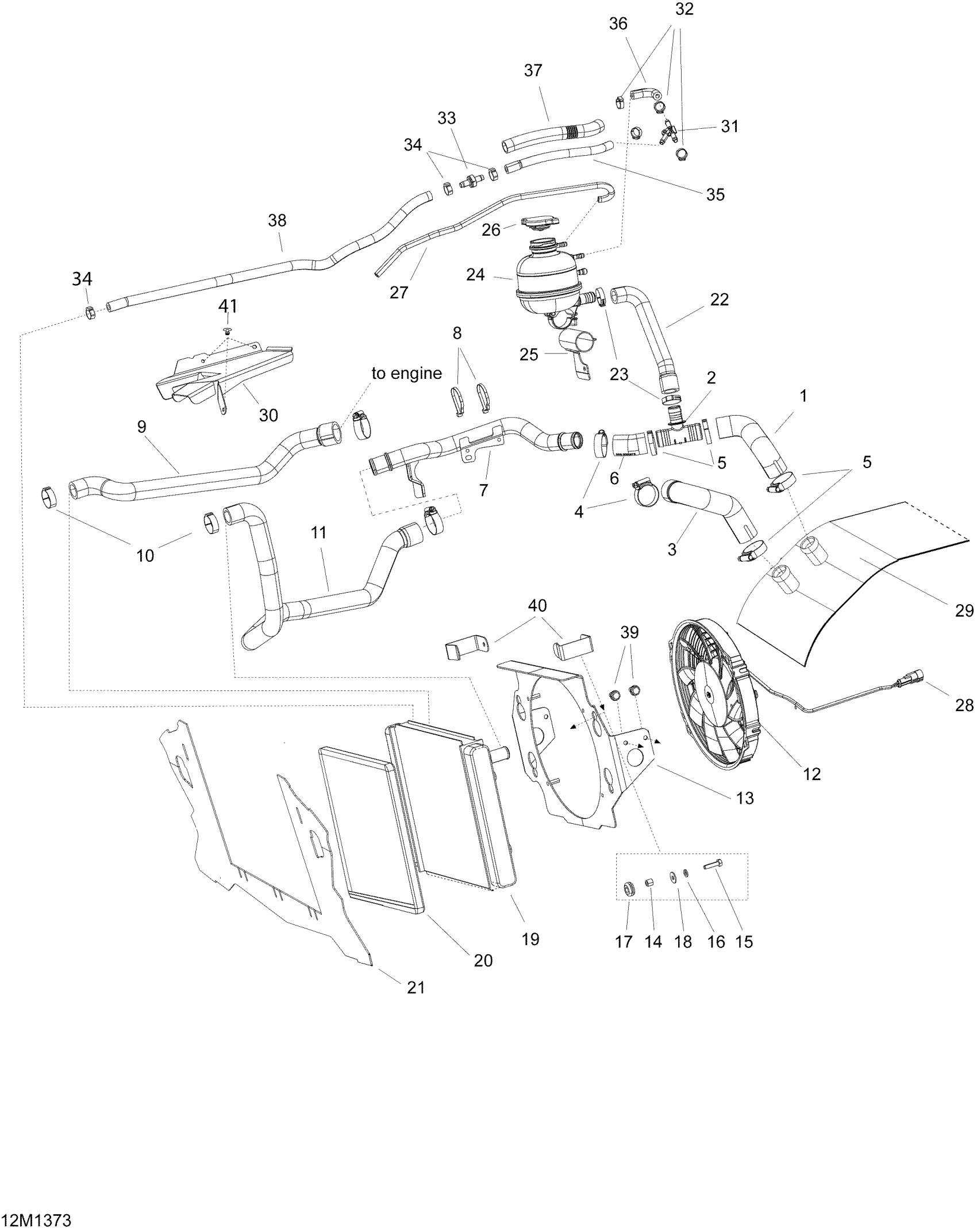

Ski-Doo EXPEDITION SE 12004TEC, REVXU, 2013 01- Cooling System Diagram

HOSE, T-FITTING->FRONT RADIATOR - Call your local BRP dealership

509000779

Unavailable

T-Fitting

509000372

$10.33

HOSE, THERMOSTAT (RADIATOR) - Call your local BRP dealership

509000592

Unavailable

Aba Gear Clamp, 26-38 MM

509000443

$12.72

Oetiker Gear Clamp

509000181

$4.44

Engine Inlet Hose This part replaces 509000675.

509001067

$17.53

Water Pipe Aluminum

509000724

$158.99

Tie-Rap 180 mm

414115200

$0.11

Hose, Front Radiator ( Air Engine)

509000780

$37.99

Tridon Clamp

293650016

$10.99

Hose, Front Radiator (Engine)

509000781

$25.99

Cooling Fan

509000838

$217.49

Radiator support | Includes 3340 to 3340a

509000791

$94.49

Bushing

605453745

$13.16

Hex. Screw M6 X 25

207162544

$1.15

Lock Washer M6, Black

234161471

$0.53

Grommet

709000582

$4.69

Flat Washer 6 mm

234062410

$0.77

Radiator

509000787

$222.49

Insulation

509000718

$61.49

Air Deflector

509000700

$44.99

Filling Hose

509000663

$62.49

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

Coolant Tank

509000421

$92.99

Reservoir support

509000856

$19.49

Radiator Pressure Cap

509000180

$20.49

Hose 6 Mm 15000Mm Long

219704360

$132.49

Male Connector, 2 Circuits

278000220

$15.49

Radiator Tunnel

509000645

$819.99

HEAT DEFLECTOR - Call your local BRP dealership This part replaces 509000751.

509000839

Unavailable

Y-Fitting

293710140

$8.11

Crimp Clamp, 15.3-706R

293650047

$3.29

Check Valve

509000153

$19.99

Oetiker Clamp

293650140

$2.69

Hose-formed

509001069

$15.28

Hose

509001070

$13.16

Tubing 16 Mm 1000Mm Long

219704408

$7.49

Was 509000407 Hose 8 mm

219704420

$50.99

HEX. TAPING SCREW - Call your local BRP dealership This part replaces M40870.

40870

Unavailable

Deflector Clip

509000703

$41.49

Avex Rivet

390909200

$0.30
