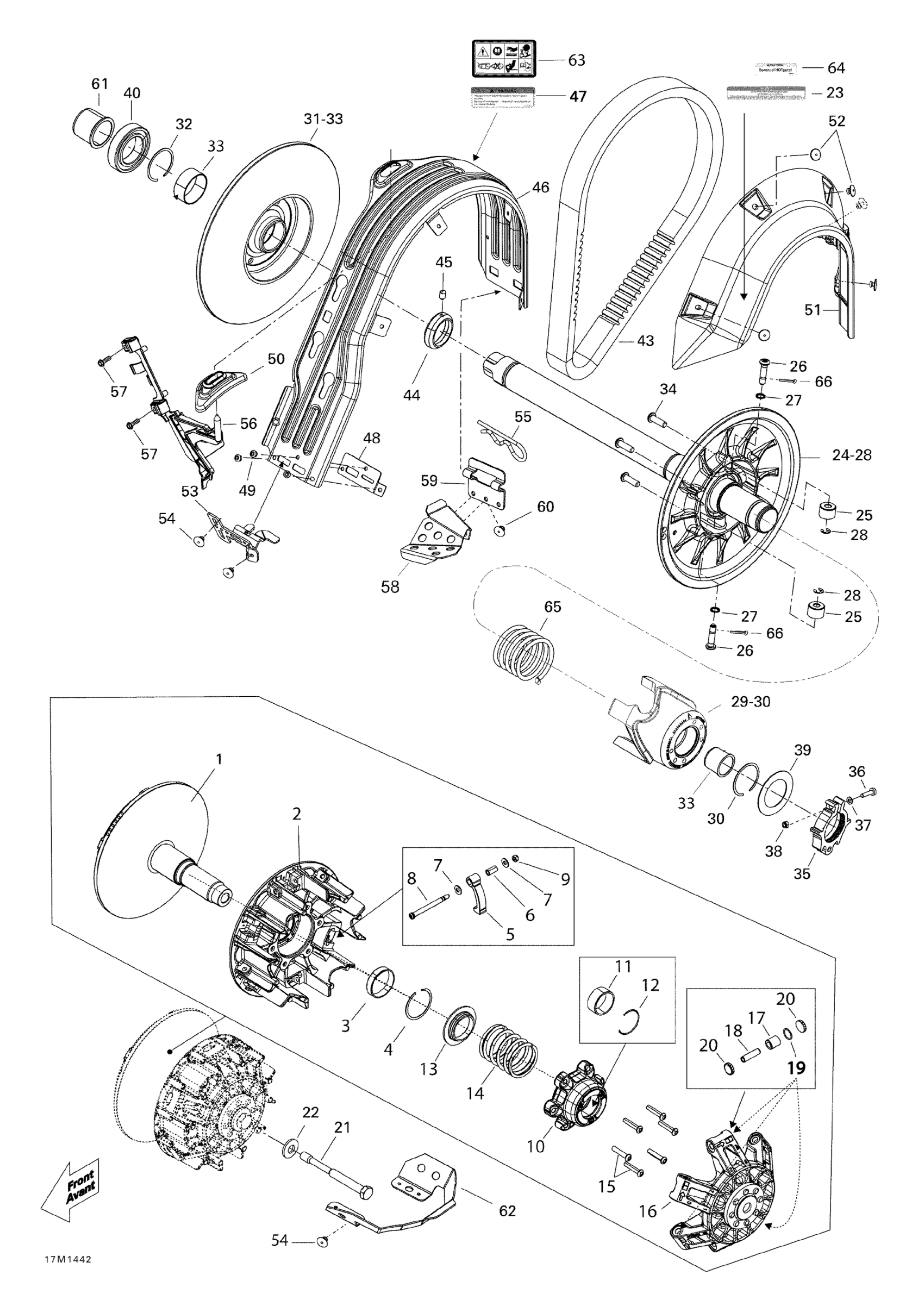

Ski-Doo EXPEDITION SE 1200 XU, 2014 05- Pulley System Diagram

#

Description
Price

1

Fixed Flange Ass'y

417224091

$309.99

2

Flange Slide Ass'y

417224044

$294.99

3

Bushing

417222758

$22.49

4

Circlip

293370037

$3.19

5

Rampe 735

417223679

$38.99

6

Not Available As Spare Parts

XXX

Unavailable

7

Stopper Washer

417223660

$3.17

8

Ramp Axle

417223694

$11.05

9

Elastic Stop Nut M5

232551414

$0.87

10

Spring Cover Ass'y

417223650

$44.99

11

Not Available As Spare Parts

XXX

Unavailable

12

Circlip

293370065

$0.98

13

Seat Spring

417223752

$15.27

14

Clutch Spring

417224085

$17.39

15

Torx Screw M6 X 30

250000580

$6.08

16

Governor Cup Ass'y

417223865

$274.99

17

Roller

417223767

$11.59

18

Roller Axle

417223257

$6.99

19

O-Ring

293300185

$0.98

20

Slider Shoe

417223919

$6.83

21

Pulley Drive Bolt

417300432

$41.49

22

Sealing Washer

250200114

$4.44

23

Decal English

516005503

Unavailable

24

FIXED FLANGE ASS'Y - Call your local BRP dealership

417127423

$1.00

25

Roller

417127189

$25.99

26

Pivot Stud

417127294

$14.49

27

Lock Washer 8 mm

250200009

$2.11

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Cam Ass'y

417127412

$159.49

30

Circlip

293370049

$4.99

31

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$379.99

32

Circlip

293370049

$4.99

33

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

34

Torx Screw M8 X 25, Scotch Grip

250000283

$6.25

35

Calibration Ass'y

415129604

$21.49

36

Socket Screw M5 X 25

205052544

$1.68

37

Flat Washer M5

234051410

$0.53

38

Elastic Stop Nut M5

232551414

$0.87

39

Washer

417127155

$8.26

40

Ball Bearing

504152574

$35.99

41

Loctite 609, 10 ml

413703100

$26.99

42

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

43

Drive Belt

417300531

$199.99

44

RETAINER RING - Call your local BRP dealership

417300419

Unavailable

45

SOCKET SET SCREW M6X6 DIN 916 - Call your local BRP dealership

417127203

Unavailable

46

Belt Guard

417300382

$90.99

47

Security label, Belt Guard

516004649

Unavailable

48

Reinforcement

417300380

$7.29

49

Avex Rivet

390909200

$0.30

50

Guide

417300381

$11.99

51

Side Protector

417300356

$14.76

52

Pop Rivet 3/16"

293150103

$0.55

53

Belt Guard Bracket

417300373

$34.99

54

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

55

Hair Pin

114045200

$11.11

56

BELT GUARD BRACKET - Call your local BRP dealership

417300396

Unavailable

57

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

58

Brake Hose Cover | Except Package SWT

518325626

$29.99

59

Belt Guard Bracket | Except Package SWT

417300363

$14.49

60

Rivet Hucklok

293150163

$2.99

61

Protective Rubber

504153054

$17.49

62

PULLEY COVER PLATE - Call your local BRP dealership | Model North America

518326566

Unavailable

63

Warning Decal | Europe

516003919

$8.09

64

Caution Label, Air Intake

516004651

Unavailable

65

Release Spring

417127467

$46.49

66

Spring Pin M3 X 18

250400061

$2.11
