Description

Price

1

Transmission Ass'y (Fast Ratio)

619230078

$2.00

2

Protective Rubber

504153054

$17.49

3

Hex. Flange Elastic Nut M8

233281414

$1.47

4

Hex. Elastic Stop Nut M8

232581414

$0.56

5

Switch Ass'y

515176472

$72.99

6

Brass Nut

250000373

$7.51

7

Rubber plug

Not in use

Unavailable

8

SYNTHETIC OIL 75W-140 - Call your local BRP dealership

293600140

Unavailable

9

Lever Shifter

504153288

$154.99

10

Sleeve

504152787

$28.49

11

Shifter Arm

504153287

$51.99

12

WELDED LEVER - Call your local BRP dealership

504152834

Unavailable

13

Pin

41012

$6.39

14

LH BALL JOINT - Call your local BRP dealership

707000690

Unavailable

15

RH BALL JOINT - Call your local BRP dealership

707000689

Unavailable

16

ROD - Call your local BRP dealership

504152836

Unavailable

17

LH HEX. NUT M6 - Call your local BRP dealership

232066414

Unavailable

18

Hex. Nut M6

232061414

$0.53

19

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

20

Elastic Stop Nut M6

232561434

$1.99

21

Spring

504152882

$38.99

22

Socket Screw M5 X 25

205052544

$1.68

23

Flange Elastic Nut M5

233251434

$2.00

24

Forming Screw M5 x 16

250000676

$1.01

25

Bushing

504152890

$42.49

26

Sensor Bracket

504152902

$17.99

27

Rivet Hucklok

293150163

$2.99

28

Cotter Pin

250400035

$2.11

29

Handle

504152837

$80.99

30

Retaining Ring

504153886

$21.99

31

Ball Bearing

293350059

$30.99

32

O-Ring

293300122

$2.11

33

Magnetic Cap

504152619

$23.49

34

Circlip

504152572

$6.95

36

Bearing Housing Ass'y | Includes 2500 to 2500a

504153418

$17.53

37

Hex. Elastic Stop Nut M8

232581414

$0.56

38

Drive Axle Ass'y | With Gear Box 1.98

504153976

$529.99

39

Track 20 X 154 X 1,25 | Includes 3200 to 3200b

504154705

$1.00

39

Track | Includes 3200 to 3200b

605613004

$1.00

40

Guide

5318323

Unavailable

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Rotation Sensor

504152896

$37.99

44

Shim

504153207

$12.49

45

Allen Screw M8 x 10

619230037

$6.03

46

Allen Screw M10 x 16

619230038

$4.02

47

Gasket-ring - Call your local BRP dealership

615580812

Unavailable

48

Seal Ring

619230047

$4.02

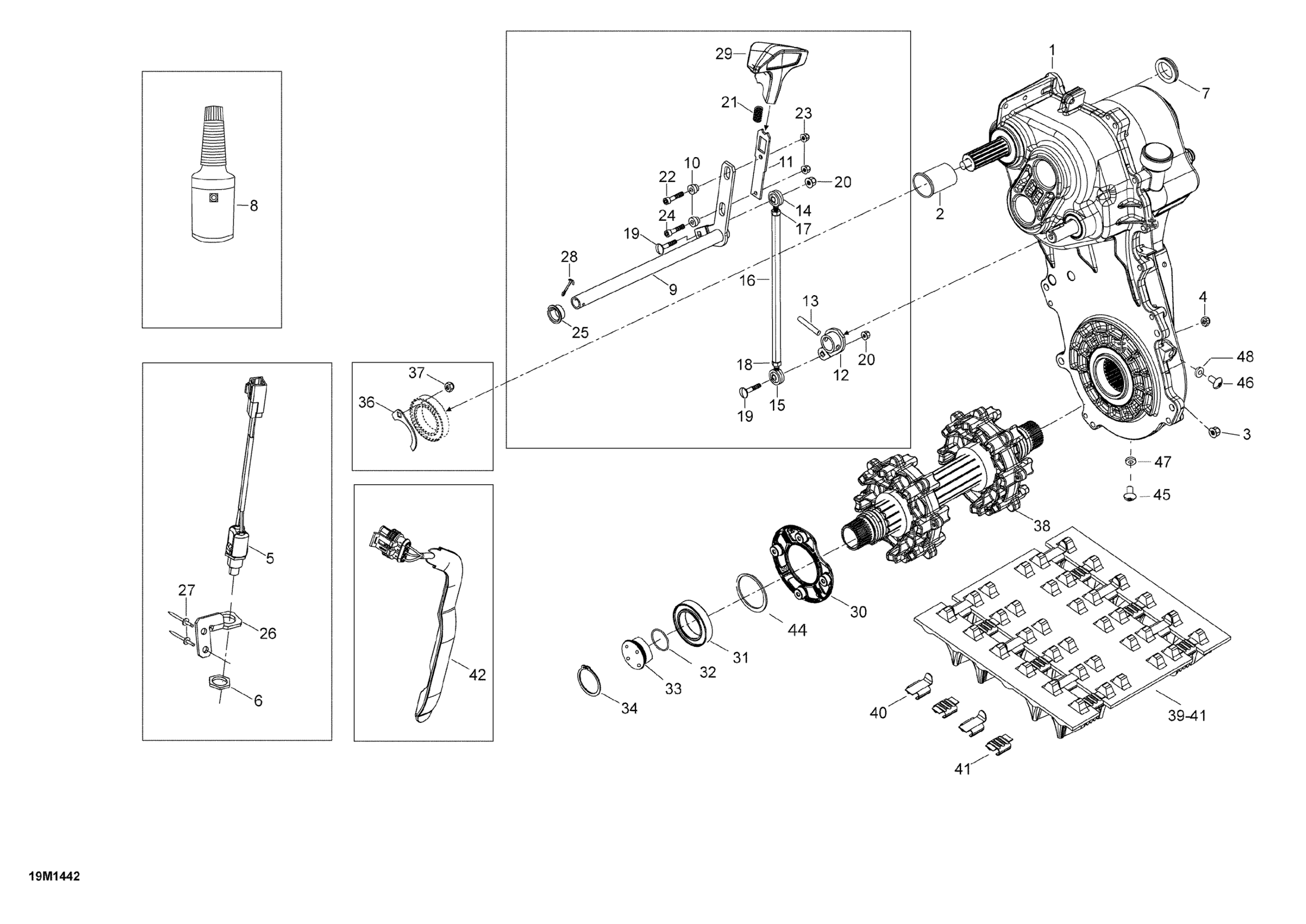

Ski-Doo EXPEDITION SE 1200 XU, 2014 05- Drive System Diagram

Transmission Ass'y (Fast Ratio)

Protective Rubber

Hex. Flange Elastic Nut M8

Hex. Elastic Stop Nut M8

Switch Ass'y

Brass Nut

Rubber plug

SYNTHETIC OIL 75W-140 - Call your local BRP dealership

Lever Shifter

Sleeve

Shifter Arm

WELDED LEVER - Call your local BRP dealership

Pin

LH BALL JOINT - Call your local BRP dealership

RH BALL JOINT - Call your local BRP dealership

ROD - Call your local BRP dealership

LH HEX. NUT M6 - Call your local BRP dealership

Hex. Nut M6

Carriage Bolt M6 X 20 | DS 650 X

Elastic Stop Nut M6

Spring

Socket Screw M5 X 25

Flange Elastic Nut M5

Forming Screw M5 x 16

Bushing

Sensor Bracket

Rivet Hucklok

Cotter Pin

Handle

Retaining Ring

Ball Bearing

O-Ring

Magnetic Cap

Circlip

Bearing Housing Ass'y | Includes 2500 to 2500a

Hex. Elastic Stop Nut M8

Drive Axle Ass'y | With Gear Box 1.98

Track 20 X 154 X 1,25 | Includes 3200 to 3200b

Track | Includes 3200 to 3200b

Guide

Not Available As Spare Part - Friction Washer

Rotation Sensor

Shim

Allen Screw M8 x 10

Allen Screw M10 x 16

Gasket-ring - Call your local BRP dealership

Seal Ring
