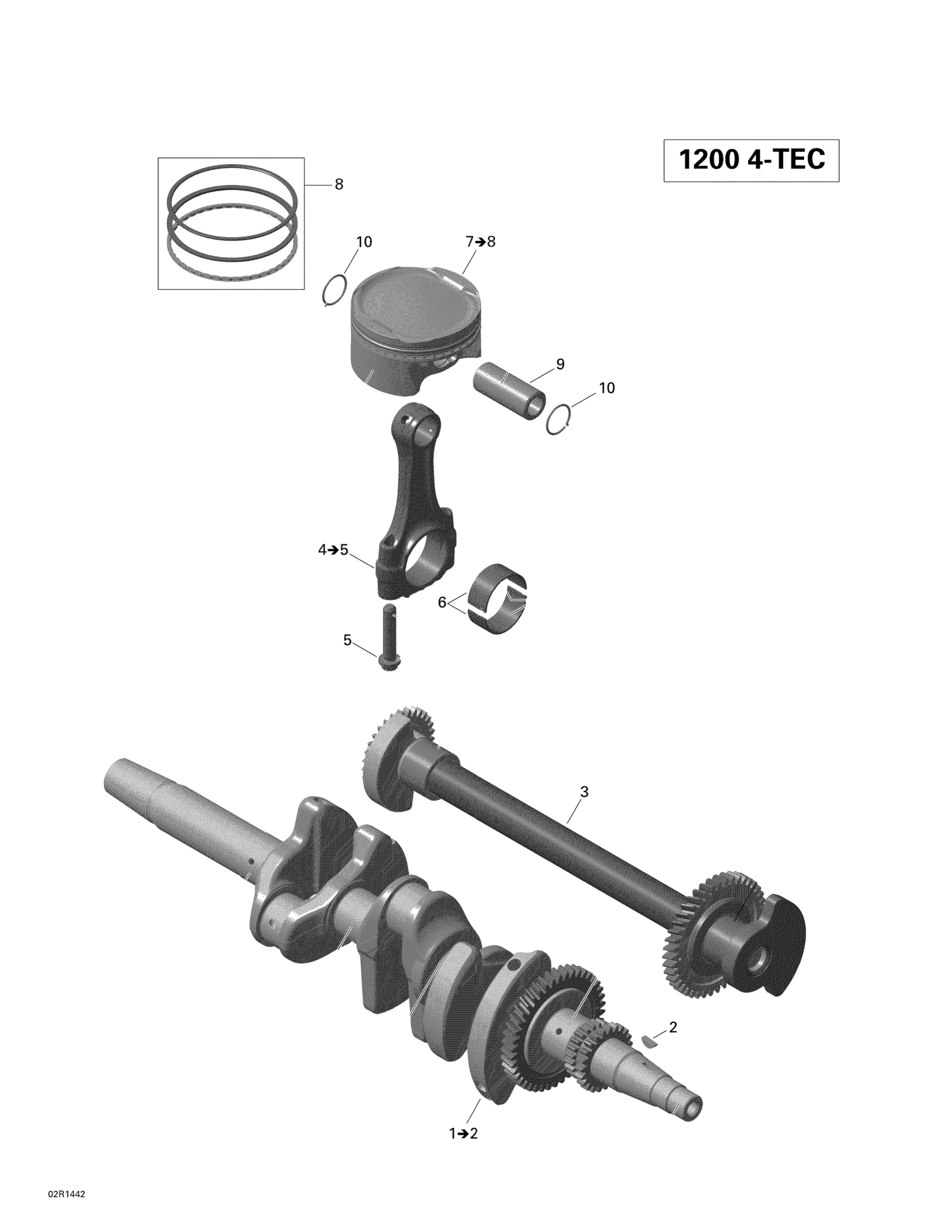

Ski-Doo EXPEDITION SE 1200 XU, 2014 Crankshaft, Pistons And Balance Shaft Diagram

#

Description

Price

1

CRANKSHAFT ASS'Y - Call your local BRP dealership | Includes 1 to 2

420819796

$949.97

2

Woodruff Key 4 X 5

420246570

$3.29

3

Balance Shaft This part replaces 420820054.

420820053

$520.74

4

CONNECTING ROD ASS'Y - Call your local BRP dealership | Includes 4 to 5

420917645

$236.12

5

Connecting Rod Screw M9 X 1

420641475

$16.30

6

Plain Bearing

420933842

$18.43

7

Piston Ass'y, 90.958 mm | Includes 7 to 8

420891890

$184.99

8

Piston Ring Set | 400HO

420296774

$81.99

9

Piston Pin

420216274

$29.97

10

Piston Circlip

420245436

$4.33
