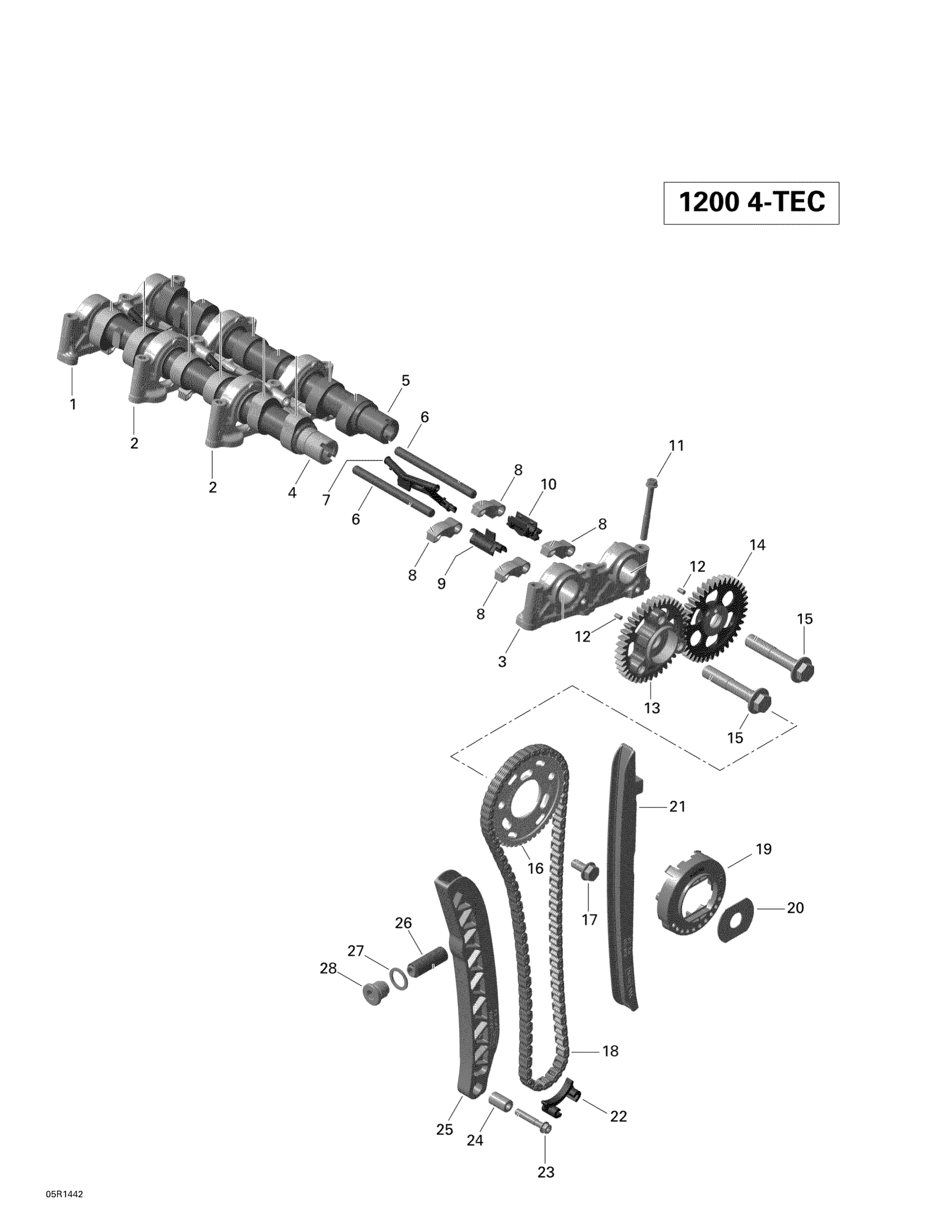

Ski-Doo EXPEDITION SE 1200 XU, 2014 01- Camshaft And Timing Chain Diagram

#

Description
Price

1

Camshaft Support

420910200

$51.99

2

Camshaft Support

420910202

$51.99

3

Camshaft Support

420910205

$51.99

4

Camshaft, Intake

420620850

$440.49

5

CAMSHAFT, EXHAUST - Call your local BRP dealership

420620840

Unavailable

6

Swing Arm Shaft

420254730

$14.49

7

Oil Distribution Device

420956060

$9.27

8

Finger Follower

420254722

$56.99

9

Spacer, Interior

420460680

$2.11

10

Spacer, Exterior

420460685

$2.11

11

Torx Flange Screw M6 X 55

420440702

$3.06

12

GROOVED PIN - Call your local BRP dealership

420929600

Unavailable

13

DRIVE GEAR, 39 TEETH - Call your local BRP dealership

420834930

$124.99

14

MATING GEAR, 39 TEETH - Call your local BRP dealership

420834935

$114.99

15

HEX. COLLAR SCREW M12 X 65 - Call your local BRP dealership

420240780

$14.49

16

Camshaft Sprocket, 48 Teeth

420855070

$98.49

17

Hex Screw

295501162

$15.28

18

Camshaft Chain

420898530

$142.99

19

Cover

420460710

$14.28

20

Thrust Washer

420627494

$7.41

21

Chain Guide

420936430

$14.22

22

Chain Guide

420236355

$2.11

23

Torx Flange Screw M6 X 35

420641258

$3.38

24

DISTANCE SLEEVE - Call your local BRP dealership

420247101

Unavailable

25

Chain Tension Guide

420936490

$14.28

26

Chain Tensioner

415129408

$63.49

27

O-Ring

420430622

$4.44

28

Plug Screw

420640455

$17.53
