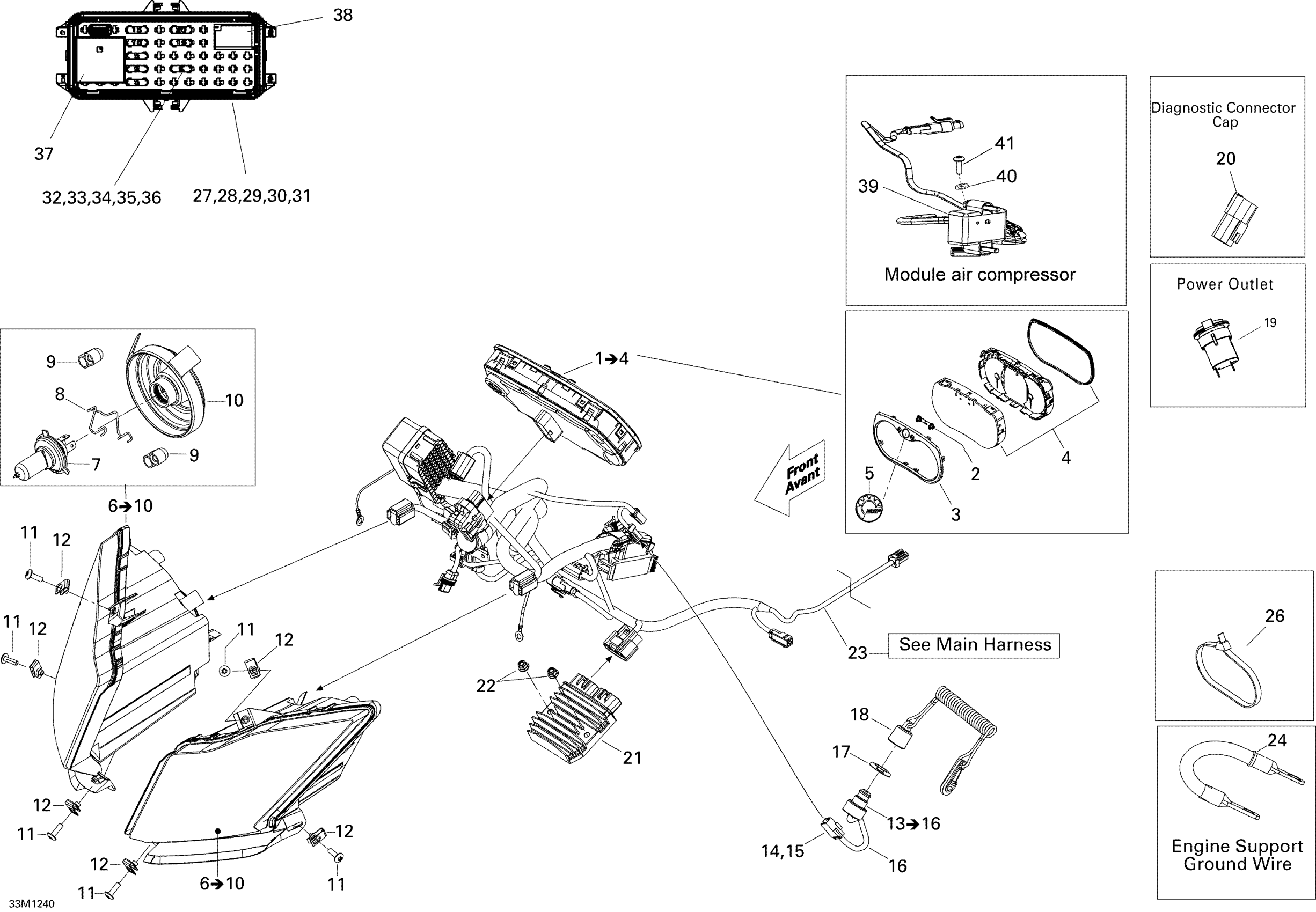

Ski-Doo Expedition SE 1200 XU, 2012 10- Electrical System Diagram

#

Description
Price

1

Speedometer | Includes 10 to 10c

515177910

$659.99

2

Speedometer Button | XTP

415129355

$15.80

3

Gauge Ring

415129348

$13.99

4

Lens | XTP

415129349

$24.49

5

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

6

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$149.99

6

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$149.99

7

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Cap

515176498

$12.99

10

Rubber Cap Protector

219800280

$19.49

11

Torx Screw M6 X 20

250000722

$1.68

12

Lever Axle

417223164

$4.49

13

DESS Switch

515177249

$114.99

14

Male Terminal

515175232

$1.58

15

Male Housing, 3 Circuits

515175494

$16.18

16

Tubing 12 mm

409902000

Unavailable

17

Safety Nut (DESS Switch)

278002963

$3.28

18

DESS

515178284

$84.99

19

DC Outlet

710001248

$37.99

20

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable

21

Voltage Regulator | Package-DPS, Model-Europe

710005569

$103.99

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

23

WIRING HARNESS MAIN - Call your local BRP dealership | Includes 1 to VC

515177076

Unavailable

24

Ground Wire

515176883

$28.99

26

Tie Wrap 94 mm | 4X4

293750001

$1.03

26

Tie Wrap 142 mm

293750002

$1.25

26

Tie-Rap 180 mm

414115200

$0.11

26

Tie Wrap 368 mm

293750008

$1.04

27

Fuse Puller

710000781

$8.09

28

Fuse Cover

710001026

$21.99

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Foam

278002172

$5.89

31

Fuse Box Base Ass´y

415129856

$50.99

32

Little Fuse, 5 Amperes

710000742

$8.79

33

Little Fuse, 7.5 Amperes

710000743

$8.49

34

Little Fuse, 10 Amperes

710000744

$8.79

35

Little Fuse, 15 Ampere

710000745

$8.49

36

Little Fuse, 30 Amperes

710000747

$8.49

37

Relay, 50 AMP

515176775

$15.79

38

Relay, 30 AMP

515176774

$21.99

39

Compressor Module

515177234

$409.99

40

Flat Washer 6 mm

234061410

$1.36

41

Hex. Flange Screw M6 X 35

207063544

$1.37
