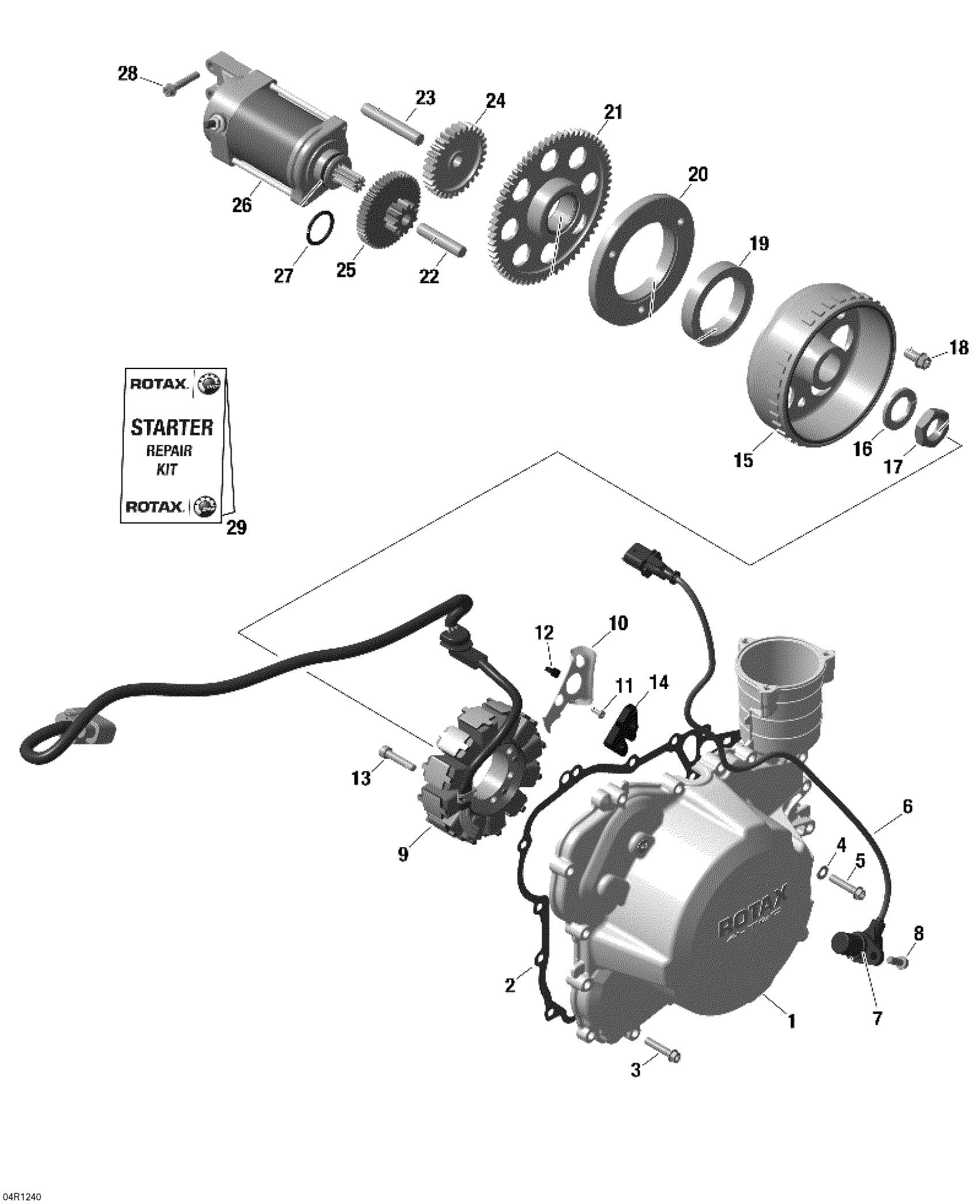

Ski-Doo Expedition SE 1200 XU, 2012 Magneto Diagram

#

Description
Price

1

Cover

420611833

$185.49

2

Gasket

420430750

$20.49

3

Torx Flange Screw M6 X 30

420440647

$2.00

4

Sealing Washer

404146600

$2.97

5

Torx Flange Screw M6 X 30

420440647

$2.00

6

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

7

O-Ring

420431580

$14.83

8

Torx Flange Screw M6 X 16

420440162

$3.17

9

Stator Ass'y | Includes 8 to 11

420892378

$340.99

10

Cable Holder

420951192

$15.89

11

TORX SCREW 3.5 X 8 - Call your local BRP dealership

420640085

Unavailable

12

CLAMP - Call your local BRP dealership

420866717

Unavailable

13

Socket Head Screw M6 X 30

205063044

$1.69

14

Spacer

420860052

$10.33

15

Magneto Flywheel

420892361

$306.49

16

Lock Washer, 22 mm

420945759

$1.90

17

Hex. Nut, M22 X 1.5

420842239

$17.53

18

Torx Flange Screw M8 X 16

420440852

$4.12

19

Sprag Clutch

420659113

$259.99

20

Housing Sprag Clutch

420659266

$174.99

21

Free Wheel Gear, 64 Teeth | Includes 5a to 6

420434235

$194.99

22

Location Pin 10 M6x50

420229302

$3.17

23

Needle Pin

420229475

$14.83

24

Starter Intermediate Gear, 30 Teeth

420634605

$81.49

25

Starter Double Gear 11/49 T

420634741

$199.99

26

Starter Ass'y | Includes 25 to 26

420893531

$297.99

27

O-Ring

420250140

$8.57

28

Torx Flange Screw M6 X 30

420440647

$2.00

29

Carbon Brush Set This part replaces 420881140.

420881141

$67.99
