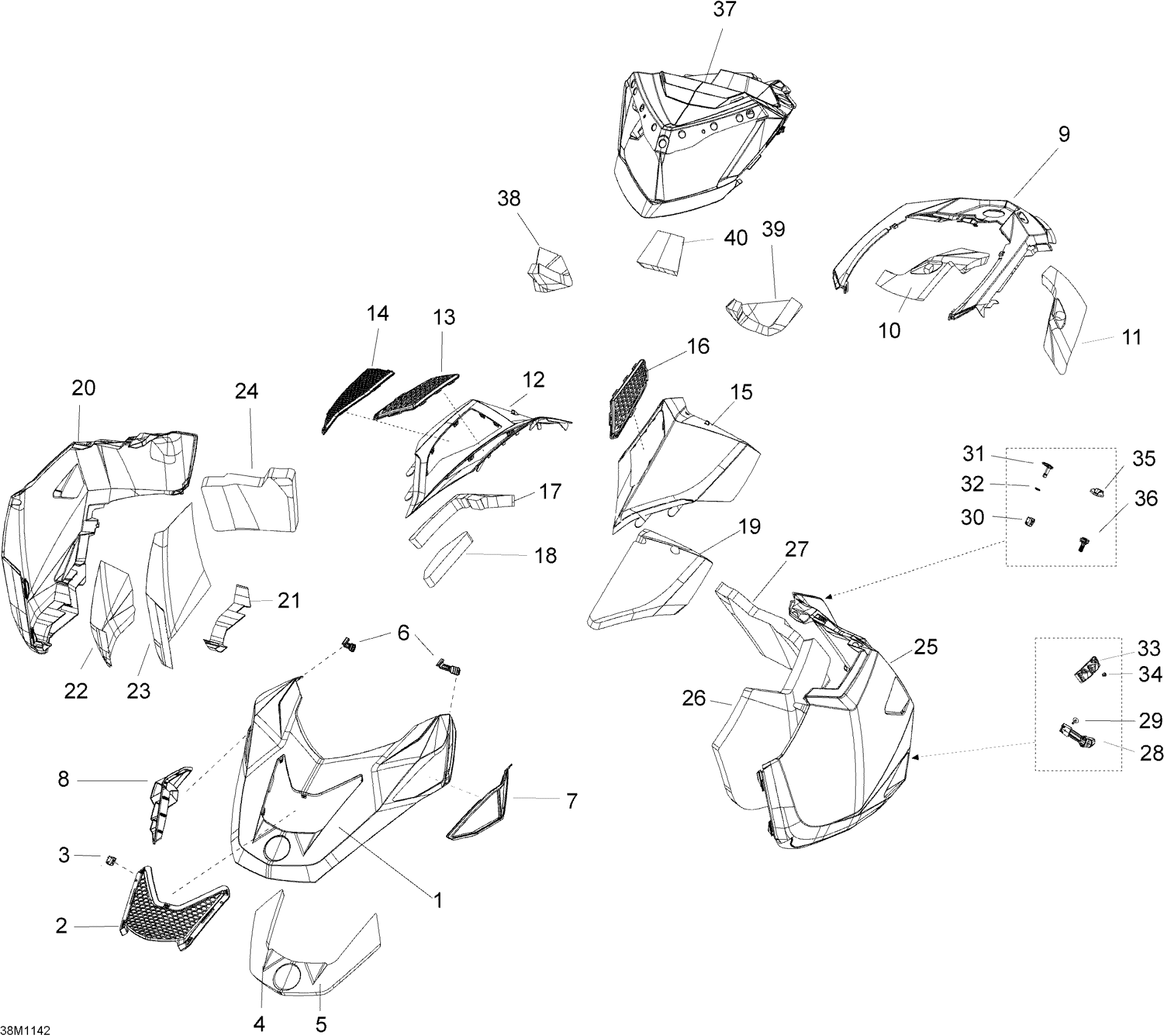

Ski-Doo Expedition SE 1200 XU, 2011 Hood Diagram

#

Description
Price

1

Red Hood | SE EU models

517304818

$619.99

2

Hood Grille

517304843

$79.82

3

Edge Clip

517302785

$0.81

4

Insulator

517304330

$33.55

5

Insulator

517304214

$29.07

6

Latch Pannel

517304289

$9.61

7

Air Filter

508000609

$44.75

8

Scoop Grille

517306980

$33.55

9

Console

517304819

$149.99

10

Insulator

517304318

$47.73

11

INSULATOR - Call your local BRP dealership

517304317

Unavailable

12

Red Side Access Panel RH | SE EU models

517304824

$278.33

13

RH Access Panel Grille

517304015

$32.81

14

RH Lower Acces Grille

517304016

$28.33

15

PANEL_BODY UP L B-283 - Call your local BRP dealership | SE EU models

517304835

Unavailable

16

LH Access Panel Grille

517303893

$32.81

17

Insulator

517304311

$61.16

18

Insulator

517304312

$29.07

19

Insulator

517304313

$61.16

20

RH Acces Panel Grille | North America

517304867

Unavailable

21

Aluminium Foil

517304215

$17.88

22

Aluminium Foil

517304216

$20.12

23

Aluminium Foil

517304512

$26.09

24

RH Rear Foam

517304310

$60.42

25

LH Side Panel

517304868

Unavailable

26

LH Foam

517303891

$51.46

27

LH Rear Foam

517304309

$60.42

28

Latch-Panel

517304572

$9.19

29

Pop Rivet 3/16”

293150108

$1.19

30

Handle Fastener Quarter-Turn

517304297

$14.18

31

Quarter-Turn Handle

517304296

$14.18

32

Locking Plate

517304538

$4.16

33

Side Panel Support | Except Package SWT

517304497

$17.88

34

Rivet

36005

$1.96

35

Black Latch Kit | Includes 390 to 400

860200239

$15.64

36

Latch-Panel

517306057

$22.36

37

Indicator Support

517304272

$164.15

38

Insulator

517304315

$29.07

39

Insulator

517304316

$29.07

40

Insulator

517304319

$29.07
