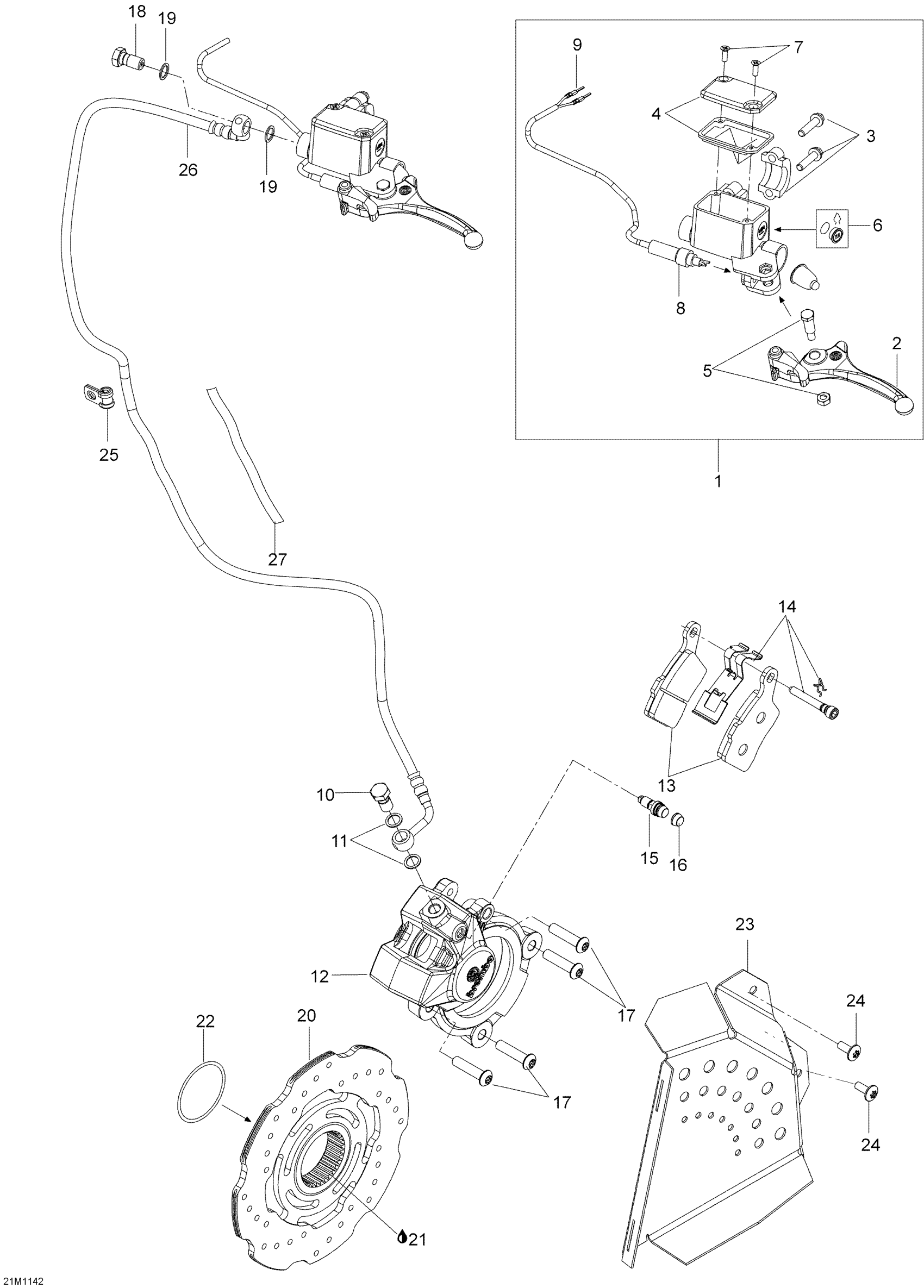

Ski-Doo Expedition SE 1200 XU, 2011 Brakes Diagram

#

Description
Price

1

Master Cylinder Ass'y | Includes 10 to 10h

507032598

$282.81

2

Lever With Parking Lock

507032476

$98.48

3

Clamp And Screw Kit

507032477

$22.36

4

Master Cylinder Reservoir Ass'y | Includes 10c to 10c1

507032478

$106.69

5

Pin Ass'y

415030000

$17.13

6

Not Available As Spare Part - Friction Washer

Unavailable

7

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable

8

Microswitch | Grand Touring

507032479

$94.00

9

Male Terminal

515175232

$1.45

10

Banjo Bolt

414920500

$8.24

11

Washer

414920600

$1.75

12

Brake Caliper | Includes 200 to 200c

507032720

$323.10

13

Brake Pads Kit

507032489

$73.85

14

Brake Spring Kit

507032722

$35.79

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$1.91

18

Banjo Bolt

414920500

$8.24

19

Washer

414920600

$1.75

20

Disk

507032513

$226.84

21

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

22

O-Ring

293300134

$2.18

23

Disk Protector

507032525

$64.15

24

Torx Screw M6 X 16

250000365

$2.00

25

Clamp

293650256

$5.00

26

HOSE - Call your local BRP dealership

507032515

Unavailable

27

Was 409901800 Tubing (13 mm)

219704400

$10.79
