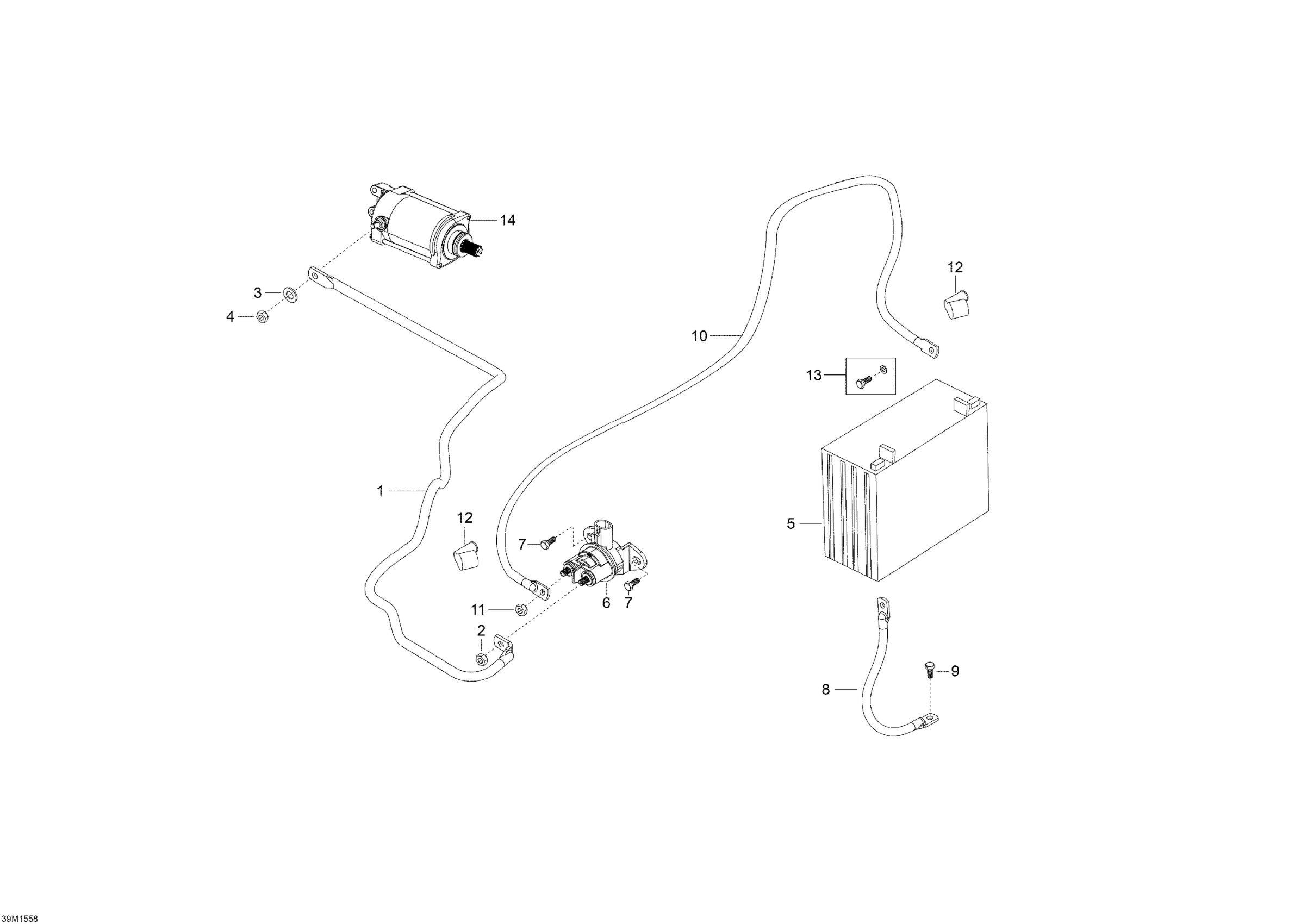

Ski-Doo Expedition SE 1200, 2015 Battery And Starter _39M1558 Diagram

#

Description

Price

1

Start cable 1000 mm.

515176779

$57.66

2

Elastic Stop Nut M6

232561434

$1.55

3

Flat Washer 6 mm

234061410

$1.04

4

Elastic Stop Nut M6

232561434

$1.55

5

Battery | Includes 900 to 900a

515176151

$174.17

6

Starter Relay

278003012

$35.07

7

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

8

Ground Wire

515176777

Unavailable

9

Hex. Flange Screw M6 X 16

207661644

$0.61

10

Battery Wire

515176778

Unavailable

11

Elastic Stop Nut M6

232561434

$1.55

12

Protector Cap

710000495

$10.14

13

Battery Bolt Kit

250000282

$2.95

14

Starter Ass'y | Includes 25 to 26

420893531

$297.99
