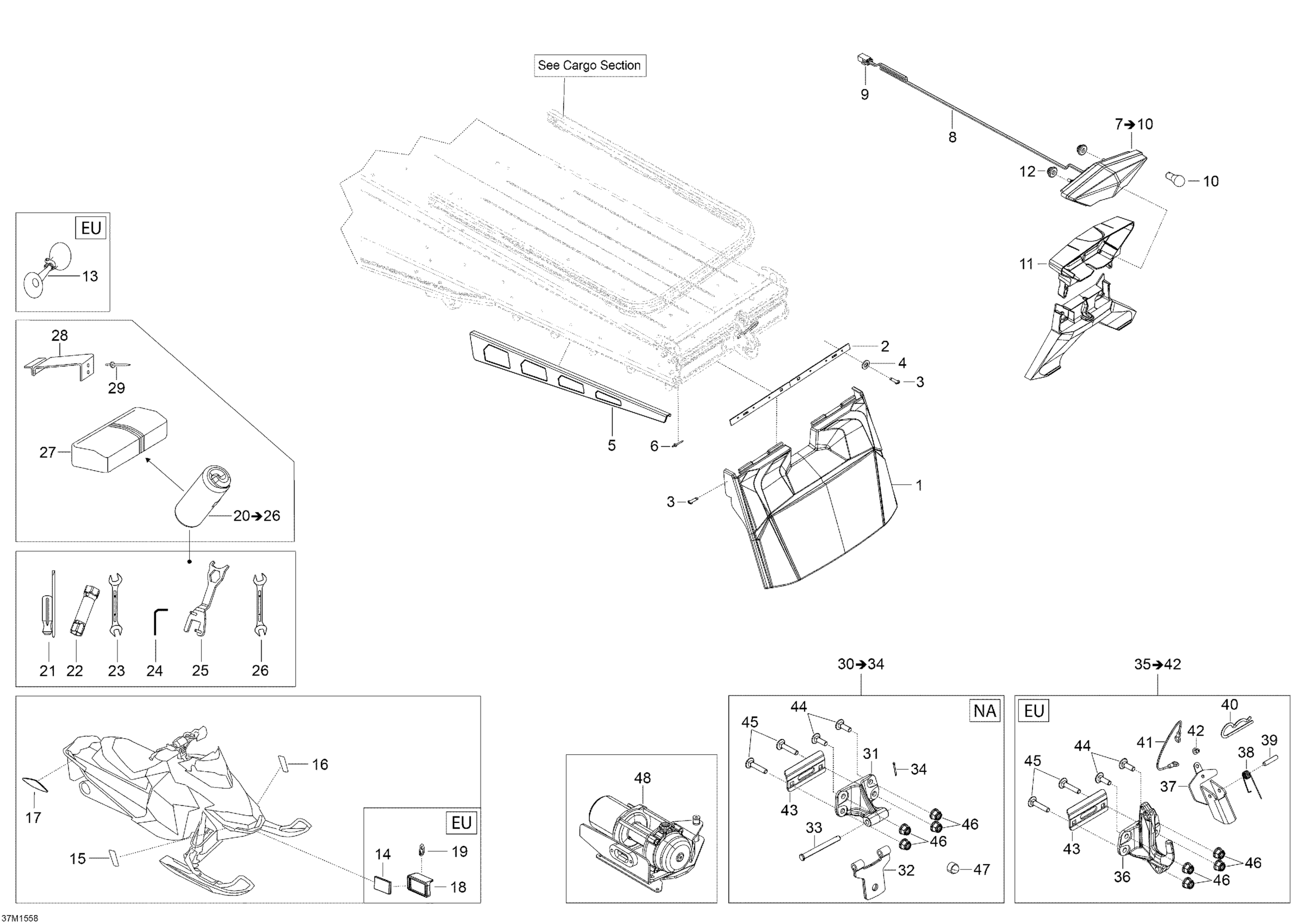

Ski-Doo Expedition SE 1200, 2015 09- Utilities _37M1558 Diagram

#

Description
Price

1

Snow Guard

520001406

$85.49

1

Black, Snow Guard Long

520001410

$106.99

2

Plate

520001021

$37.99

3

Forming Screw M5 x 16

250000676

$1.01

4

Washer M5

250200025

$0.74

5

RH Protector

520000693

$52.99

5

LH Protector

520000694

$52.99

6

Rivet Hucklok

293150163

$2.99

7

Rear Light | Includes 200 to 200a

520000848

$99.49

8

Rear Wiring Harness

520000849

$53.99

9

Male Housing, 3 Circuits

515175494

$16.18

10

Bulb

520000758

$9.10

11

Rear Light Cover

511000764

$38.99

12

Stopper Rubber

705014429

$5.95

13

Horn

549011291

$35.99

14

Reflector (Bright)

21118

$28.99

15

Yellow, RH Reflector

520001600

$33.99

16

Yellow, LH Reflector

520001601

$33.99

17

Red, Lateral Reflector

705003412

$15.49

17

Amber, Lateral Reflector

705002423

$15.49

18

Deep Black, Reflector Support

520000871

$5.79

19

TIE RAP - Call your local BRP dealership

27120

$0.95

20

Tool Kit | Includes 16 To 22

529000066

$45.99

21

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

22

Set Key, 16/21 mm

529000046

$14.49

23

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

24

Spacing Tool

520001142

$10.52

25

WRENCH SUSPENSION - Call your local BRP dealership

520000988

Unavailable

26

Wrench

34017

Unavailable

27

TOOLS BOX - Call your local BRP dealership

708200043

Unavailable

28

Tool Kit Rack

5346728

$22.49

29

Rivet

36108

$1.90

30

Hitch Ass'y | Includes 3600 to 3600a

520001398

$72.99

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable

33

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

34

Cotter Pin

41031

$7.65

35

Hitch Ass'y | Includes 3600 to 3600f

520001774

$73.99

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Pin

41012

$6.39

40

Hair pin

41029

$4.44

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Avex Rivet

390909100

$0.30

43

Plate

520000727

$36.99

44

Carriage Bolt, M8 X 25 | XXC

207782544

$1.58

45

Bolt Carriage M8 X 40

207784044

$1.15

46

Hex. Flange Elastic Nut M8

233281414

$1.47

47

Cover | Model-T3

28056

$5.89

48

WINCH KIT - Call your local BRP dealership | Includes 30 to 30,009

619400069

Unavailable
