Description

Price

1

Hood | Model-SE

517305596

$449.99

2

Hood Grille

517304843

$88.99

3

Insulator

517304330

$36.99

4

Insulator

517304214

$31.99

5

Latch Pannel

517304289

$11.49

6

Scoop Grille

517306980

$37.99

7

CONSOLE - Call your local BRP dealership

517305223

Unavailable

8

Insulator

517305644

$38.99

9

Insulator

517304318

$48.99

10

RH Side Access Panel | Model-SE

517305598

$289.99

11

RH Access Panel Grille

517304015

$36.99

12

RH Lower Acces Grille

517304016

$31.99

13

Insulator

517304311

$61.99

14

Insulator

517304312

$31.99

15

LH Side Access Panel | Model-SE

517305600

$289.99

16

LH Access Panel Grille

517303893

$36.99

17

Insulator

517304313

$61.99

18

Insulator

517305311

$14.49

19

Grille plate

502007312

$31.99

20

Black, Dart

414644300

$0.98

21

Indicator Support

517304272

$179.99

22

Insulator

517304314

$62.99

23

Insulator

517304315

$31.99

24

Insulator

517304316

$31.99

25

Insulator

517304319

$31.99

26

Windshield Ass'y

860201000

$209.99

27

Button

517304744

$2.19

28

Grommet

517303756

$4.09

29

Black, RH Side Panel

517306970

$249.99

30

Aluminium Foil

517304215

$19.99

31

Aluminium Foil

517304216

$22.49

32

Aluminium Foil

517304512

$28.99

33

RH Rear Foam

517304310

$60.99

34

Black, LH Side Panel

517306973

$219.99

35

LH Foam

517303891

$52.99

36

LH Rear Foam

517304309

$60.99

37

Latch-Panel

517304572

$11.99

38

Pop Rivet 3/16”

293150108

$1.19

39

Handle Fastener Quarter-Turn

517304297

$16.99

40

Quarter-Turn Handle

517304296

$16.99

41

Locking Plate

517304538

$4.59

42

Side Panel Support | Except Package SWT

517304497

$19.99

43

Rivet | Except Package SWT

293150211

$2.19

44

Black Latch Kit | Includes 390 to 400

860200239

$16.88

45

Latch-Panel

517306057

$24.49

46

RH/LH Mirror Ass'y | Includes 50 to 54

517305787

$72.99

47

Mirror

517304629

Unavailable

48

Torx Truss Screw M6 X 16

250000721

$1.69

49

Domed Nut M6

232361493

$2.11

50

Rubber Washer 5 mm

250200024

$2.19

51

Washer

20117

$6.39

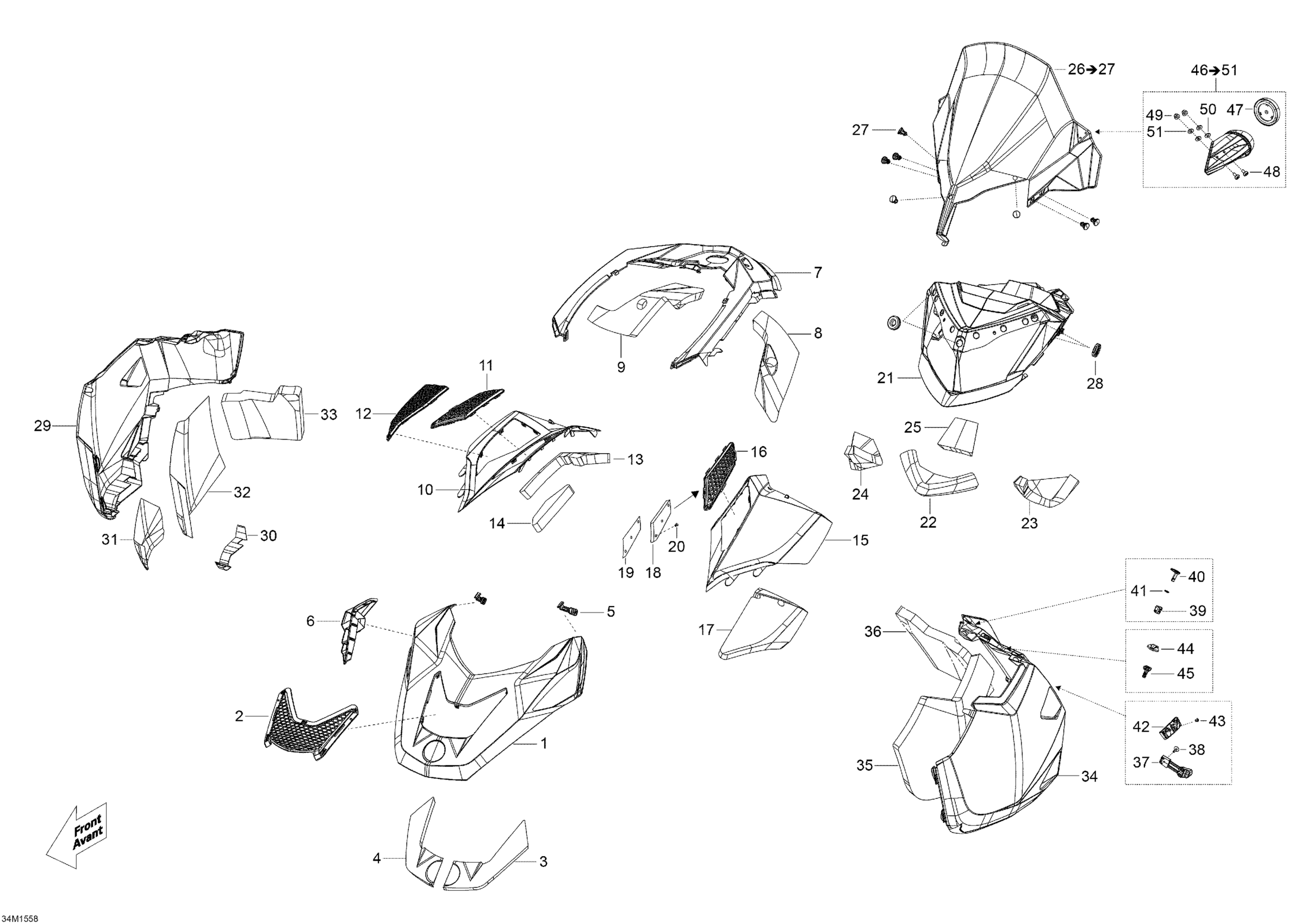

Ski-Doo Expedition SE 1200, 2015 09- Hood _34M1558 Diagram

Hood | Model-SE

Hood Grille

Insulator

Insulator

Latch Pannel

Scoop Grille

CONSOLE - Call your local BRP dealership

Insulator

Insulator

RH Side Access Panel | Model-SE

RH Access Panel Grille

RH Lower Acces Grille

Insulator

Insulator

LH Side Access Panel | Model-SE

LH Access Panel Grille

Insulator

Insulator

Grille plate

Black, Dart

Indicator Support

Insulator

Insulator

Insulator

Insulator

Windshield Ass'y

Button

Grommet

Black, RH Side Panel

Aluminium Foil

Aluminium Foil

Aluminium Foil

RH Rear Foam

Black, LH Side Panel

LH Foam

LH Rear Foam

Latch-Panel

Pop Rivet 3/16”

Handle Fastener Quarter-Turn

Quarter-Turn Handle

Locking Plate

Side Panel Support | Except Package SWT

Rivet | Except Package SWT

Black Latch Kit | Includes 390 to 400

Latch-Panel

RH/LH Mirror Ass'y | Includes 50 to 54

Mirror

Torx Truss Screw M6 X 16

Domed Nut M6

Rubber Washer 5 mm

Washer
