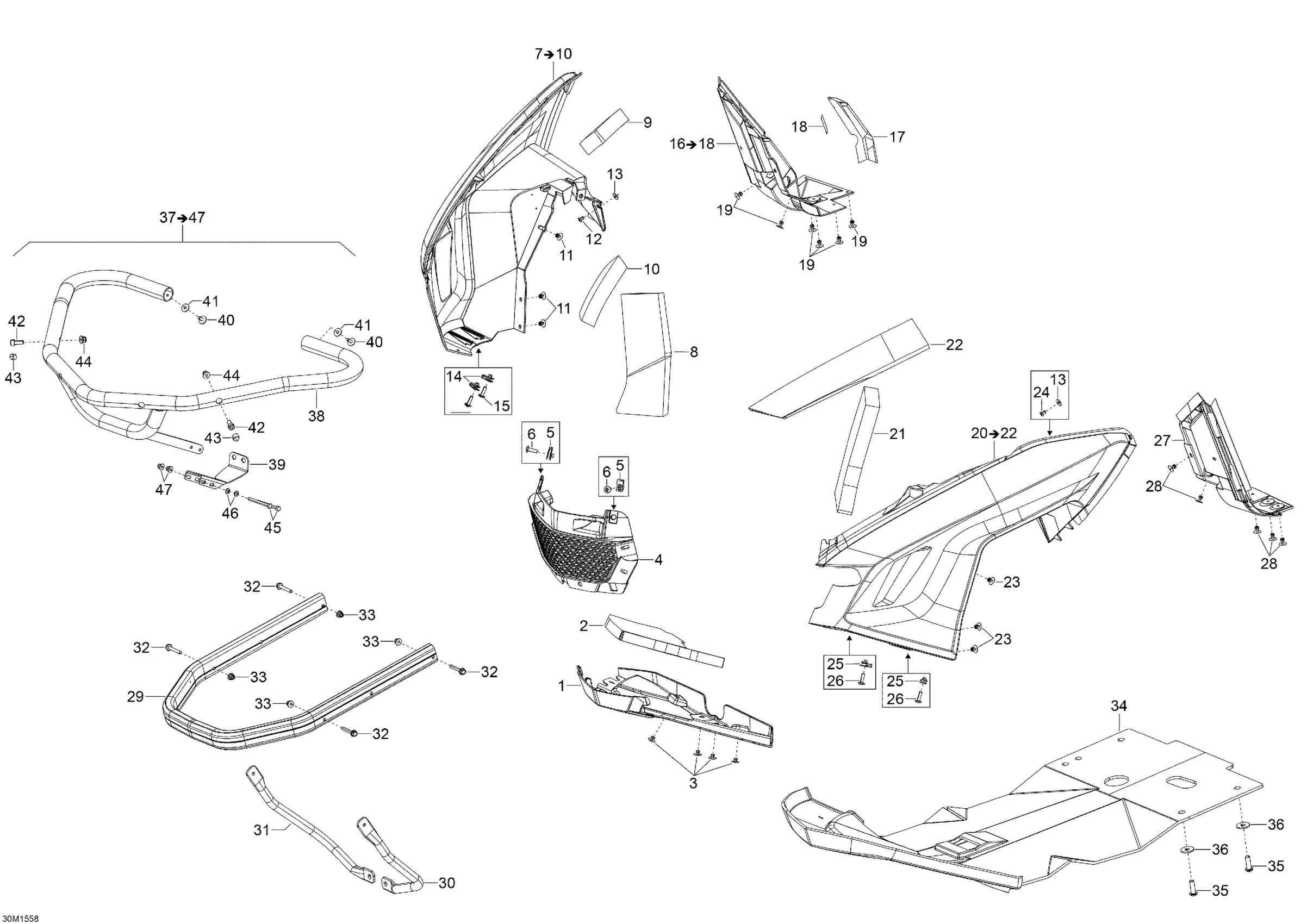

Ski-Doo Expedition SE 1200, 2015 09- Bottom Pan _30M1558 Diagram

#

Description
Price

1

Black, Front Bottom Pan

502008006

$149.99

2

Insulator

502007002

$28.99

3

Pop Rivet 3/16"

293150103

$0.55

4

Grille

502007145

$56.99

5

Panel Nut M6 X 1.0

250100198

$2.11

6

Torx Screw M6 X 20

250000722

$1.68

7

Bottom Pan R.H. | Package SE This part replaces 502007187.

502007992

$169.99

8

Insulator | Model LE, SE

502007006

$28.99

9

Insulator | Model LE, SE

502007008

$19.49

10

Insulator | Except Package EXTREME

502007009

$19.49

11

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

12

Pop Rivet 3/16"

390402200

$0.35

13

Flat Washer

234052450

$2.11

14

Panel Nut M6 X 1.0

250100198

$2.11

15

Torx Screw M6 X 20

250000722

$1.68

16

RH Rear Bottom Pan Ass'y | Includes 21 to 23

502008010

$99.99

17

Aluminium Foil

502007038

$18.99

18

Aluminum foil

44110

Unavailable

19

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

20

Deep Black, LH Bottom Pan | Package SE

502008002

$194.99

21

Insulator

502007003

$28.99

22

Insulator

502007185

$28.99

23

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

24

Pop Rivet 3/16"

390402200

$0.35

25

Panel Nut M6 X 1.0

250100198

$2.11

26

Torx Screw M6 X 20

250000722

$1.68

27

LH Rear Bottom Pan

502008012

$114.99

28

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

29

Black Bumper

502007229

$134.49

30

LH Bumper Support

502007014

$92.99

31

RH Bumper Support

502007015

$92.99

32

Hex. Flange Screw M6 X 40

207664044

$2.22

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

34

Skid Plate | Package SE

860200563

$222.49

35

Torx Screw M8 X 25, Scotch Grip

250000283

$6.25

36

Flat Washer 8 mm

234082410

$1.47

37

Extra Bumber Paint | Includes 50 to 50,01

860200537

Unavailable

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Lower Fastening Plate

502007022

$36.99

40

Torx Screw M6 X 16

250000223

$2.11

41

Washer

20117

$6.39

42

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

43

Cover | Model-T3

28056

$5.89

44

Hex. Flange Elastic Nut M8

233281414

$1.47

45

Hex. Screw M6 X 60

207066044

$0.67

46

Flat Washer 6 mm

234061410

$1.36

47

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
