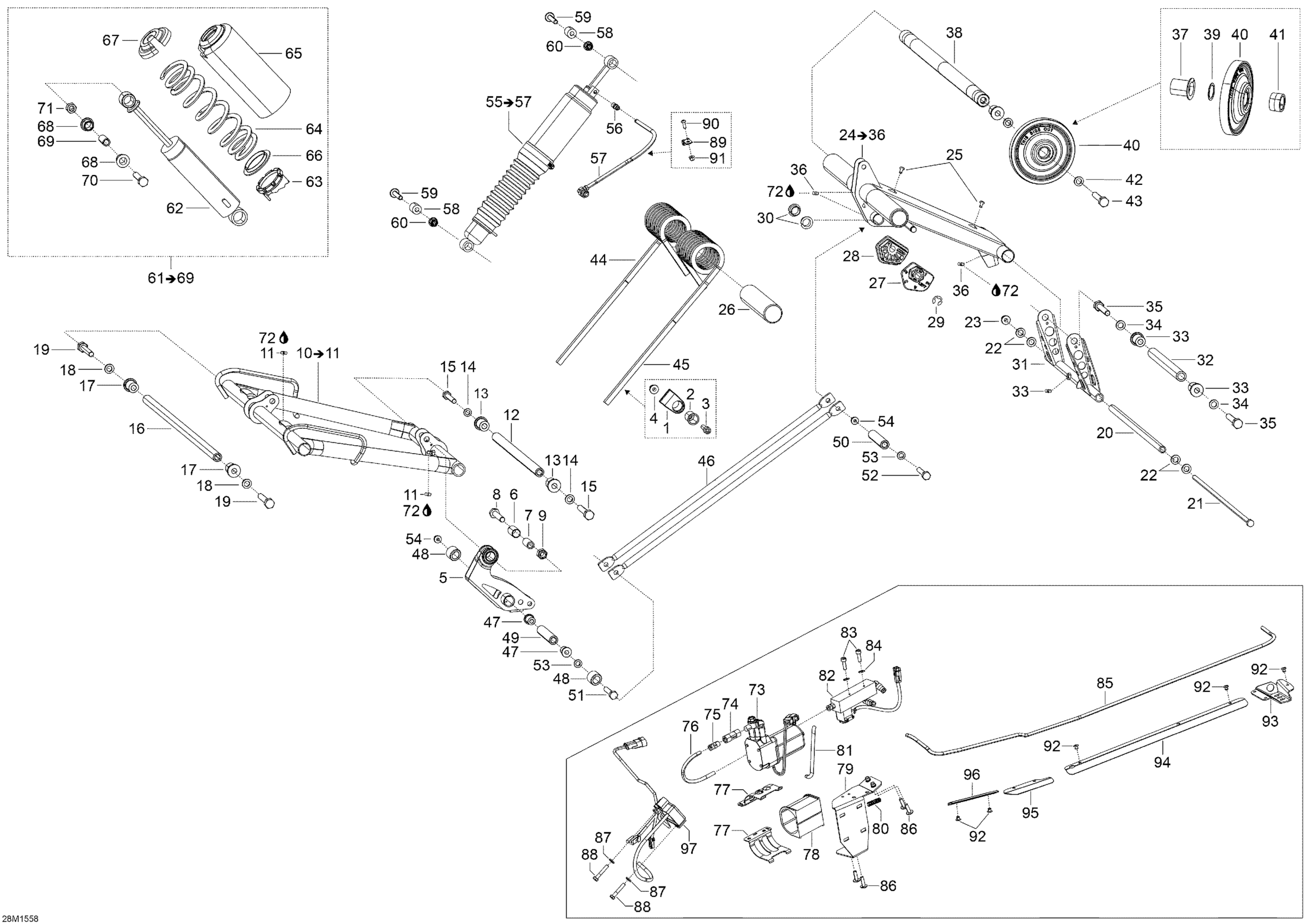

Ski-Doo Expedition SE 1200, 2015 Rear Suspension B _28M1558 Diagram

#

Description
Price

1

Spring Support Kit

861805547

$8.14

2

Spring Support Kit

861805547

$8.14

3

Socket Head Screw M8 X 25

205082544

$0.92

4

Hex. Flange Elastic Nut M8

233281414

$1.14

5

Rocker

503192211

$78.43

6

Bushing

503193037

$15.35

7

Bushing | Includes 240d to 240d1

503189282

$4.18

8

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

9

Elastic Locking Nut M10 X 1.5

233601416

$1.68

10

Front Arm Ass'y | Includes 1400 to 1400a

503193274

$212.28

11

Grease Fitting

408200700

$2.80

12

Lower Shaft

503191390

$27.66

13

Bushing

503189324

$11.17

14

Washer

503192496

$0.75

15

Hex. Screw S.Grip M10 X 55

250000605

$6.18

16

Upper Shaft

503191391

$34.58

17

Bushing

503189324

$11.17

18

Washer

503189564

$0.72

19

Hex. Screw S.Grip M10 X 55

250000605

$6.18

20

Axle Pivot

503191396

$78.43

21

Bolt 369MM

503195156

$25.35

22

Washer

503189157

$3.20

23

Hex. Flange Elastic Nut M8

233281414

$1.14

24

Rear Arm Ass'y | Includes 24 To 37

503191709

Unavailable

25

Black, Dart

414644300

$0.78

26

Not Available As Spare Part - Friction Washer

Unavailable

27

LH Cam Adjuster

503191565

$13.95

28

RH Cam Adjuster

503191566

$13.95

29

E-Circlip

293370013

$0.62

30

Swivel Bushing

503191555

$5.71

31

Pivot Arm | Includes 3000j to 3000j3

503195154

$96.12

32

Lower Shaft

503192330

$46.12

33

Cushion

503191640

$5.71

34

Washer | 7415/7416. 7417/7418.

503189148

$2.72

35

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.91

36

Grease Fitting

408200700

$2.80

37

Cushion

503191451

$11.17

38

Upper Shaft

503191405

$89.20

39

Washer

503190328

$11.34

40

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$46.12

41

Retaining Ring

503191099

$5.85

42

Washer

503192491

$4.38

43

Socket Screw M12 X 35

250000484

$6.18

44

Black RH Square Spring

503192377

$109.20

45

Black LH Square Spring

503192378

$109.20

46

Link Rod

503193026

Unavailable

47

Swivel Bushing

503191555

$5.71

48

Spacer

503190114

$15.35

49

Bar Axle (Short)

503190113

$37.66

50

Axle Bar (Long)

503190643

$15.35

51

Hex. Screw M8 X 130

230083044

$7.23

52

Hex. Screw M8 X 90

207089044

$2.82

53

Washer

503189157

$3.20

54

Hex. Flange Elastic Nut M8

233281414

$1.14

55

Rear Shock Ass'y | Includes 57 to 59

503193000

$716.99

56

Male Pneumatic Connector

503191939

$45.99

57

Pneumatic Hose Ass'y

503192649

$123.82

58

Bushing

414936000

$11.55

59

Hex. Flange Screw M8 X 40

207684044

$1.25

60

Hex. Flange Elastic Nut M8

233281414

$1.14

61

Not Available As Spare Part - Friction Washer

Unavailable

62

Center Shock

503192266

$157.66

62

Center Shock

503192991

$238.43

63

Adjustment Cam

505073625

$12.18

63

Adjustment Cam

505073625

$12.18

64

Black, Spring

503189686

$66.89

64

Black, Spring 242MM

503191880

$66.89

65

Protector

503193663

$35.35

66

Spring Guide

503191872

$2.18

67

Spring Stopper

706200881

$10.30

67

Spring Stopper

503194270

$16.89

68

Urethane Bushing

503189117

$6.88

69

Bushing | Includes 240d to 240d1

503189282

$4.18

70

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

71

Elastic Locking Nut M10 X 1.5

233601416

$1.68

72

Not Available As Spare Part - Friction Washer

Unavailable

73

Compressor

706001349

$436.89

74

Check Valve

706000940

$35.35

75

Connector

706000869

$33.05

76

Hose 4.32Mm 3000Mm Long

219704415

$44.17

77

Compressor Bracket

503193103

$4.42

78

Compressor Isolator

706000631

$13.22

79

SUPPORT - Call your local BRP dealership

503193484

Unavailable

80

TUBING 6 MM - Call your local BRP dealership

515175442

Unavailable

81

Tubing 6 Mm 3000Mm Long

219704425

$13.14

82

Air manifold Ass'y

503193009

$319.97

83

Socket Head Screw M6 X 20, Scotch Grip

205562044

$1.74

84

Flat Washer 6 mm

234061410

$1.04

85

Tube

503193034

$16.12

86

Torx Screw M6 X 20

250000722

$1.34

87

Flat Washer 6 mm

234061410

$1.04

88

Hex. Flange Screw M6 X 35

207063544

$1.35

89

Clamp

503193393

Unavailable

90

Torx Screw M5 X 14

235551494

$7.31

91

Flange Elastic Nut M5

233251434

$1.66

92

Rivet 3/16"

293150102

$0.71

93

BRACKET - Call your local BRP dealership

503193004

Unavailable

94

Hose Protector

503193006

Unavailable

95

Hose Protector

503193007

Unavailable

96

HOSE PROTECTOR PAINTED - Call your local BRP dealership

503193011

Unavailable

97

Compressor Module | With Air Suspension

515177125

$507.66
