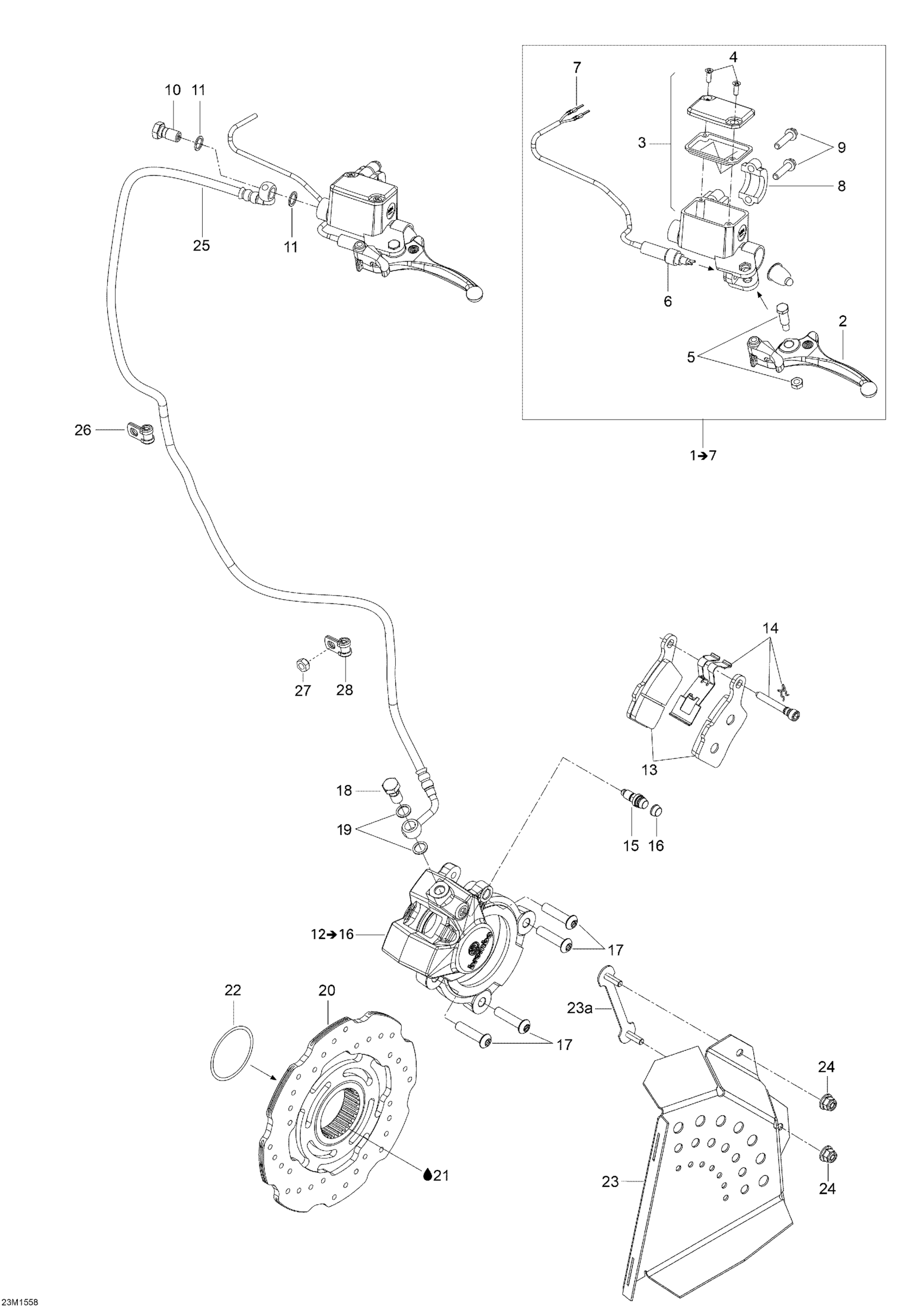

Ski-Doo Expedition SE 1200, 2015 Hydraulic Brake _23M1558 Diagram

Master Cylinder Ass'y | Includes 10 to 10h

507032598

$282.81

Lever With Parking Lock

507032476

$98.48

Master Cylinder Reservoir Ass'y | Includes 10c to 10c1

507032478

$106.69

Screw M4 X 20

415129356

$2.10

Pin Ass'y

415030000

$17.13

Microswitch | Grand Touring

507032479

$94.00

Male Terminal

515175232

$1.45

Clamps | Includes 75a to 75b

719000049

$22.36

Hex. Flange Screw M6 X 25

250000447

$2.00

Banjo Bolt

507032551

$5.22

Copper Washer

705601628

$4.21

Brake Caliper | Includes 200 to 200c

507032720

$323.10

Brake Pads Kit

507032473

$49.22

Brake Spring Kit

507032722

$35.79

Bleeder

507032475

$17.13

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$1.91

Banjo Bolt

507032551

$5.22

Copper Washer

705601628

$4.21

Disk

507032513

$226.84

Not Available As Spare Part - Friction Washer

Unavailable

O-Ring

293300134

$2.18

Disk Protector | WT

507032537

$58.93

Counter Plate | Includes 505 to 505a

518328661

$17.88

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Hose, Steel Braided | WT

507032548

$44.00

Clamp

293650256

$5.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Open Clamp

414176000

$1.81
