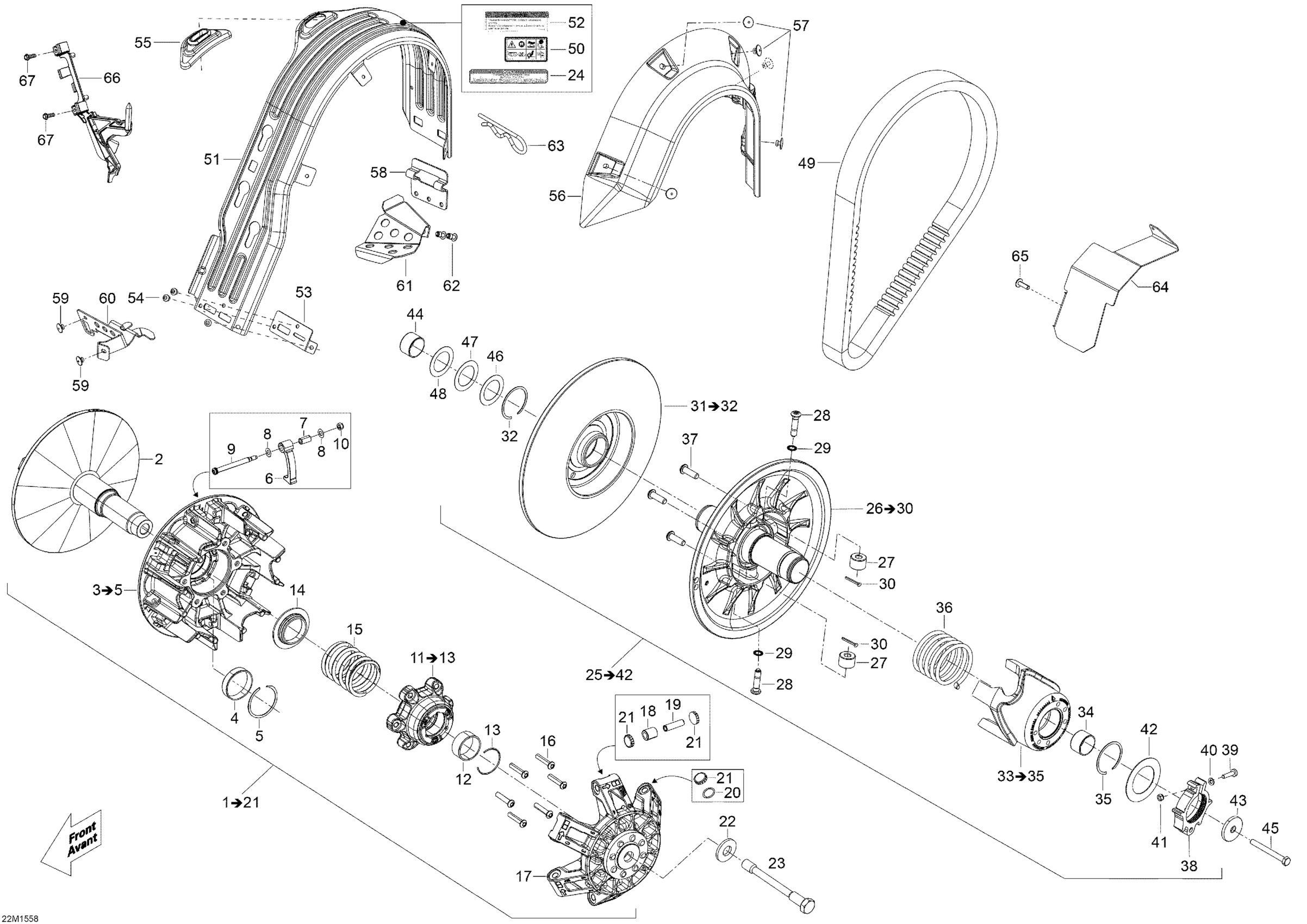

Ski-Doo Expedition SE 1200, 2015 Pulley System _22M1558 Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y

417224091

$309.99

3

Flange Slide Ass'y

417224044

$294.99

4

Bushing

417222758

$22.49

5

Circlip

293370037

$3.19

6

Rampe 735

417223679

$38.99

7

Not Available As Spare Parts

XXX

Unavailable

8

Stopper Washer

417223660

$3.17

9

Ramp Axle

417223694

$11.05

10

Elastic Stop Nut M5

232551414

$0.87

11

Spring Cover Ass'y

417223650

$44.99

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Circlip

293370065

$0.98

14

Seat Spring

417223752

$15.27

15

Clutch Spring

417224085

$17.39

16

Torx Screw M6 X 30

250000580

$6.08

17

Governor Cup Ass'y

417223865

$274.99

18

Roller

417223767

$11.59

19

Roller Axle

417223257

$6.99

20

O-Ring

293300185

$0.98

21

Slider Shoe

417223919

$6.83

22

Conical Spring Washer M14

250200144

$4.44

23

Pulley Drive Bolt

417300432

$41.49

24

Decal English

516005503

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Fixed Flange Ass'y

417127433

$629.99

27

Roller

417127189

$25.99

28

Pivot Stud

417127294

$14.49

29

Lock Washer 8 mm

250200009

$2.11

30

Spring Pin M3 X 30

250400063

$2.11

31

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$159.99

32

Circlip

293370049

$4.99

33

Cam Ass'y

417127412

$159.49

34

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

35

Circlip

293370049

$4.99

36

Release Spring

417127467

$46.49

37

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

38

Calibration Ass'y

415129604

$21.49

39

Socket Screw M5 X 25

205052544

$1.68

40

Flat Washer M5

234051410

$0.53

41

Elastic Stop Nut M5

232551414

$0.87

42

Washer

417127155

$8.26

43

Strength Washer

517302322

$12.63

44

Sleeve

417300453

$19.49

45

Hex. Cap Screw M8 X 75

207287544

$5.18

46

Spacer

417300252

$5.49

47

Spacer

417300265

$2.29

48

Shim

504112000

$8.59

49

Drive Belt

417300531

$199.99

50

Warning Decal | Europe

516003919

$8.09

51

Belt Guard

417300382

$90.99

52

Security Label, Belt Guard

516006900

Unavailable

53

Reinforcement

417300380

$7.29

54

Avex Rivet

390909200

$0.30

55

Guide

417300381

$11.99

56

Side Protector

417300356

$14.76

57

Pop Rivet 3/16"

293150103

$0.55

58

Belt Guard Bracket | Except Package SWT

417300363

$14.49

59

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

60

Belt Guard Bracket

417300373

$34.99

61

Brake Hose Cover | Except Package SWT

518325626

$29.99

62

Rivet Hucklok

293150163

$2.99

63

Hair Pin

114045200

$11.11

64

Air Duct | North America

417300468

$49.99

65

Torx Screw M6 X 20

250000722

$1.68

66

BELT GUARD BRACKET - Call your local BRP dealership

417300396

Unavailable

67

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47
