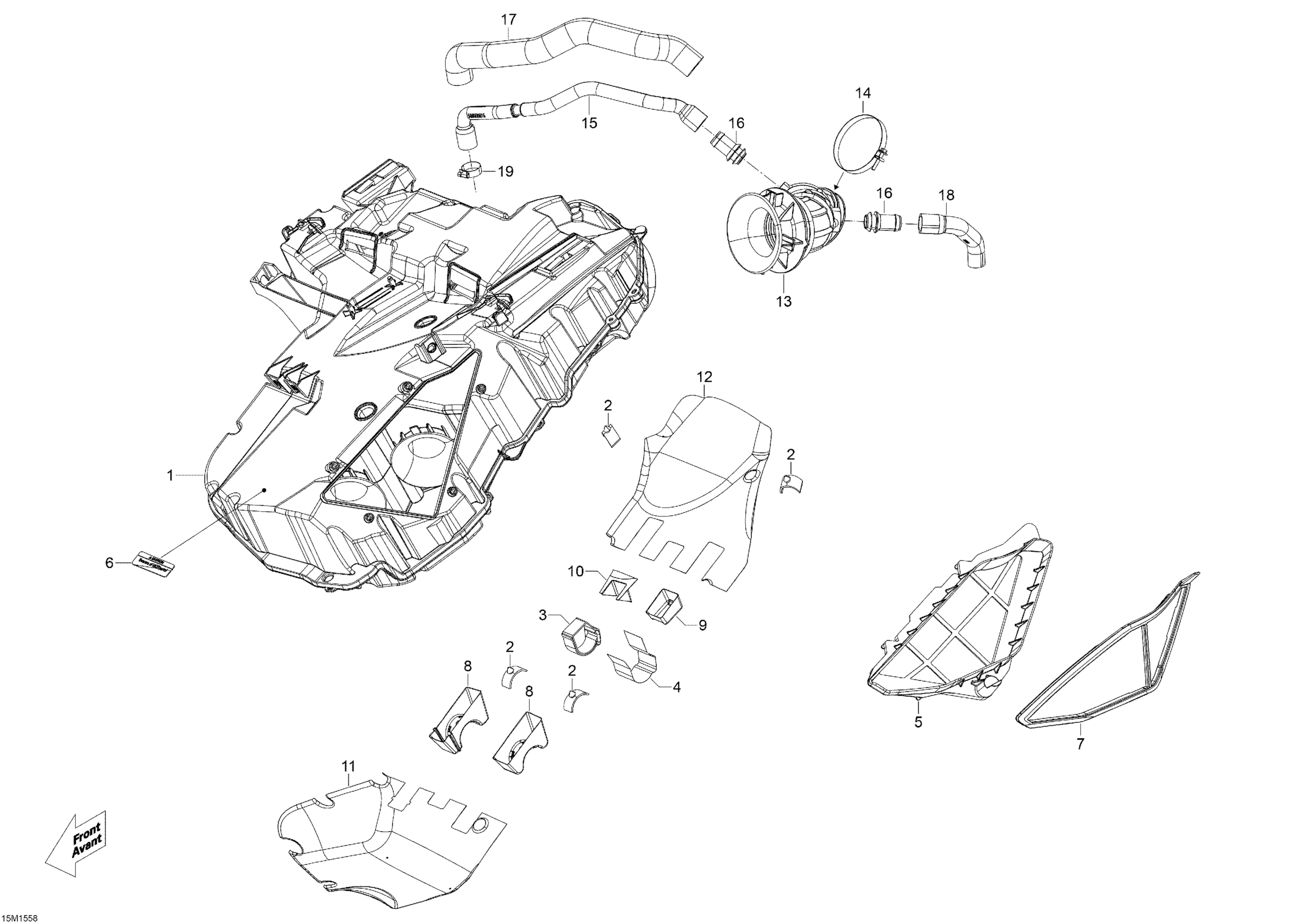

Ski-Doo Expedition SE 1200, 2015 Air Intake System _15M1558 Diagram

#

Description
Price

1

Secondary Chamber Ass'y

508000789

$191.51

2

Stopper

508000537

$7.35

3

Velcro Strip

508000820

$7.35

4

Aluminum foil

44110

Unavailable

5

Adaptor

508001020

$29.97

6

Caution Label, Air Intake

516004651

Unavailable

7

Air Filter

508000609

$46.12

8

Heat Shield

508000723

$11.63

9

Heat Shield

508000725

$9.62

10

HEAT SHIELD - Call your local BRP dealership

508000636

Unavailable

11

Heat Shield

508000726

$17.66

12

Heat Shield

508000627

$14.62

13

INTAKE HOSE - Call your local BRP dealership

508000549

Unavailable

14

Gemi Clamp

508000346

$9.31

15

VENT HOSE - Call your local BRP dealership

508000615

Unavailable

16

Breather Valve

273000234

$10.63

17

Tube Isolator

508000648

$15.35

18

FORMED HOSE - Call your local BRP dealership

508000616

Unavailable

19

Tridon Gear Clamp

293650172

$2.68
