Description

Price

1

Speedometer | Includes 10 to 10c

515177910

$659.99

2

Speedometer Button | XTP

415129355

$15.80

3

Gauge Ring

415129348

$13.99

4

Lens | XTP

415129349

$24.49

5

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

6

DESS Switch

515177249

$114.99

7

Male Terminal

515175232

$1.58

8

Male Housing, 3 Circuits

515175494

$16.18

9

Tubing 12 mm

409902000

Unavailable

10

Safety Nut (DESS Switch)

278002963

$3.28

11

DESS

515178284

$84.99

12

Visor Harness

515177837

$33.99

13

Cap

572103300

$10.49

14

Extension

515175851

$11.12

15

DC Outlet

710001248

$37.99

16

Temperature Sensor This part replaces 420664508.

420664509

$149.99

17

Female Terminal Housing, 2 Circuits

515175670

$8.39

18

Female Terminal

278000632

$2.09

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Air Temperature Sensor

515176366

$19.99

21

Seal

508000769

$6.39

22

Push Nut

389804300

$0.53

23

Main Harness | Includes 1 To WMS

515177941

Unavailable

23

WIRING HARNESS MAIN - Call your local BRP dealership | Includes 1 To WMS

515177798

Unavailable

24

Fusebox Support

515177925

$10.16

25

Clip

270000141

$11.49

26

Avdel Rivet 3/16"

293150037

$0.56

27

Pop Rivet 3/16"

390402200

$0.35

28

Lock Washer 4 mm

234141601

$1.15

29

Screw-Torx Button Head M4 X 8

250000741

$1.15

30

Housing

710003006

$8.79

31

Compressor Module | With Air Suspension

515177125

$539.99

32

Ground Wire

515177289

$26.99

33

Capacitor

515177272

$90.99

34

Capacitor Support

515176607

$20.99

35

Capacitor Harness

515176605

$33.99

36

Socket Head Screw M10 X 32

250000462

$2.11

37

Lock washer | Quest XT 650.

250200026

$1.90

38

CAPACITOR DECAL (ENGLISH) - Call your local BRP dealership

516005515

Unavailable

39

Cap

515177193

$4.69

40

Dual Thermocouple Module This part replaces 515177758.

415129998

$269.99

41

Tab Lock

514055100

$8.45

42

Not Available As Spare Part - Friction Washer

Unavailable

43

Tie-Rap 180 mm

414115200

$0.11

43

Tie Wrap 368 mm

293750008

$1.04

43

Tie Wrap 94 mm | 4X4

293750001

$1.03

44

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$149.99

44

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$149.99

45

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

46

Not Available As Spare Part - Friction Washer

Unavailable

47

Cap

515176498

$12.99

48

Rubber Cap Protector

219800280

$19.49

49

Torx Screw M6 X 20

250000722

$1.68

50

Panel Nut M6 X 1.0

250100198

$2.11

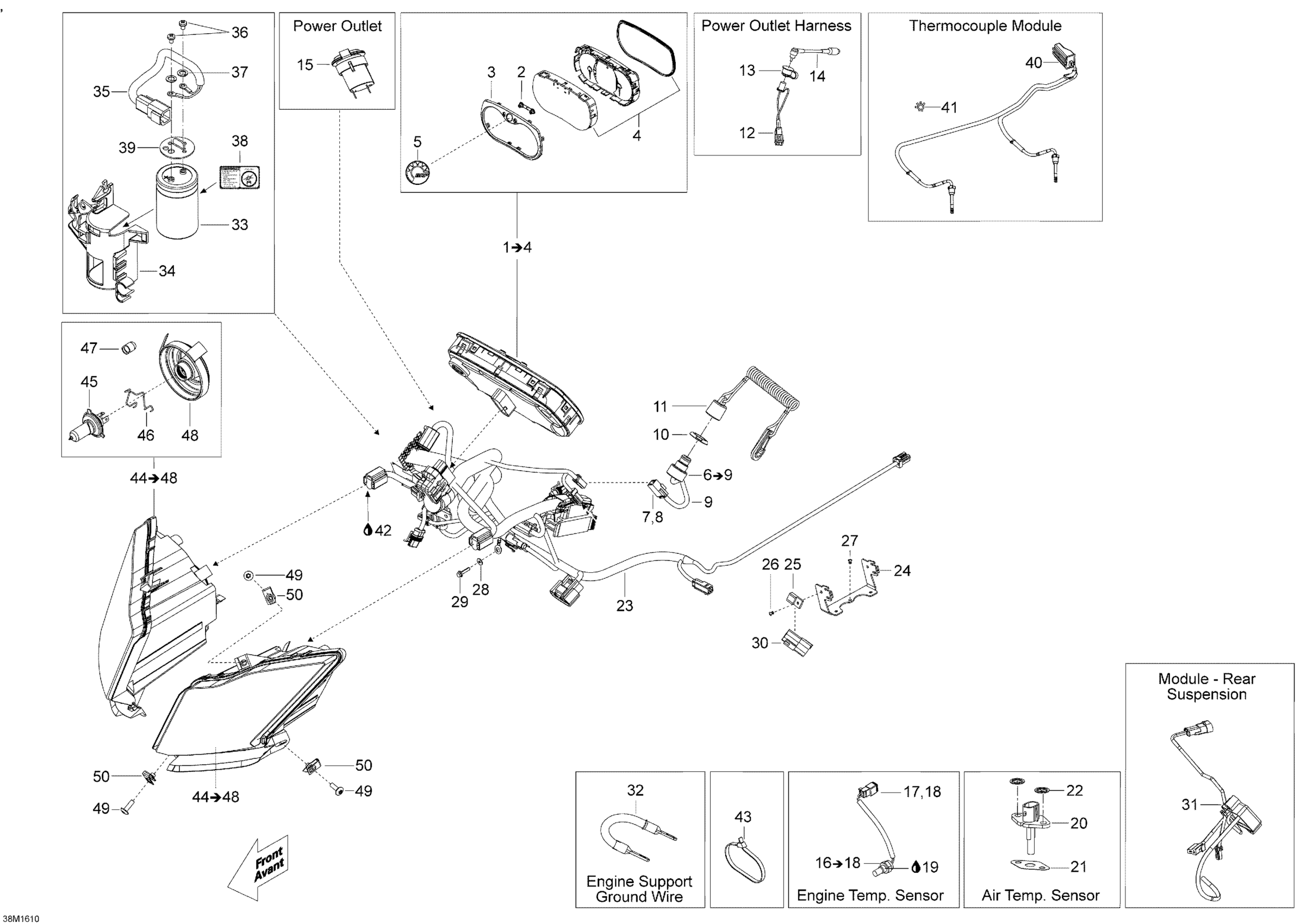

Ski-Doo EXPEDITION - LE-SE-Xtreme 2-STROKE, 2016 10- Electrical System Diagram
