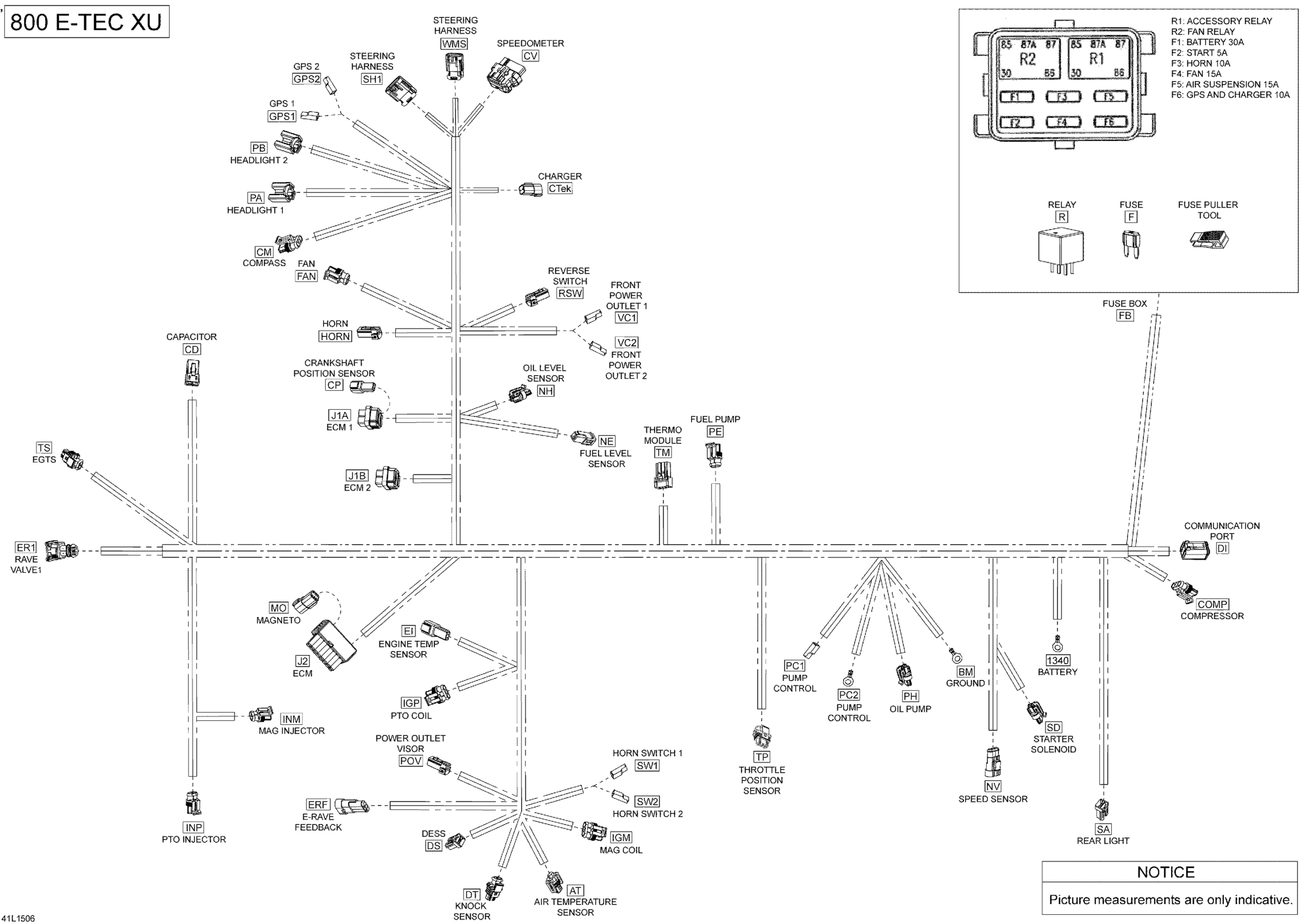

Ski-Doo EXPEDITION - LE-SE-Xtreme 2-STROKE, 2016 10- Electrical Harness - 800 E-TEC Diagram

#

Description
Price

1

WIRING HARNESS MAIN - Call your local BRP dealership | Includes 1 To WMS

515177798

Unavailable

2

Tubing 6 Mm 3000Mm Long

219704425

$13.75

2

Was 409901700 Tubing (9 mm)

219704399

$84.99

2

Tubing 10 MM 1000MM Long

219704407

$2.79

2

Was 409901800 Tubing (13 mm)

219704400

$14.49

2

Tubing 16 Mm 1000Mm Long

219704408

$7.49

2

Was 409901600 Tubing 19mm

219704398

$95.99

2

Not Available As Spare Part - Friction Washer

Unavailable

2

Tubing 25 MM 1000MM Long

219704402

$15.99

3

Not Available As Spare Part - Friction Washer

Unavailable

1340

Open Barrel

278000992

$2.21

AT

Female Terminal Housing

515176890

$12.99

AT

Female Terminal

710001164

$8.89

AT

Wire Seal

710001163

$7.69

BM

Open Barrel

278000992

$2.21

CD

Female Terminal Housing, 2 Circuits

278001673

$23.49

CD

Female Terminal

515175567

$7.69

CD

Female Lock, 2 Circuits

278001671

$3.58

CM

Female Housing, 3 Circuits

409209600

$35.99

CM

Female Terminal

710001340

$5.89

CM

Wire Seal

515176621

$7.49

CM

Tie Wrap 142 mm

293750002

$1.25

COMP

Female Housing, 3 Circuits

409209600

$35.99

COMP

Female Terminal

710001340

$5.89

COMP

Wire Seal

515176621

$7.49

CP

Male Terminal Housing, 2 Circuits

515175665

$9.29

CP

Male Terminal

278000631

$4.39

CP

Male Lock, 2 Circuits

409207500

$3.19

CTek

Mâle Terminal Housing, 2 Circuits

278001674

$30.49

CTek

Male Lock, 2 Circuits

278001672

$3.49

CTek

Male Terminal

515175568

$9.12

CV

Female Housing, 24 Circuits

515175801

$9.59

CV

Retainer Block

515175802

$11.49

CV

Wire Seal

515175803

$2.99

CV

BLOCK - Call your local BRP dealership

515175804

Unavailable

CV

LOCK - Call your local BRP dealership

515175805

Unavailable

CV

Female Terminal

515175806

$0.99

CV

Plug

515175812

$2.19

CV

Female Housing

710000399

$16.49

DI

Male Housing, 6 Circuits

515175673

$15.49

DI

Female Terminal

278000632

$2.09

DI

Sealing Cap

293000052

$3.19

DI

Male Wedge, 6 Circuits

515175678

$5.39

DS

Female Housing, 3 Circuits

515175495

$16.18

DS

Female Terminal

515175231

$4.39

DT

Male Housing, 2 Circuits

278001005

$19.49

DT

Female Terminal

278000998

$4.39

DT

Wire Seal

278000999

$3.19

EI

Male Terminal Housing, 2 Circuits

515175665

$9.29

EI

Male Terminal

278000631

$4.39

EI

Male Lock, 2 Circuits

409207500

$3.19

ER1

Female Terminal Housing, 2 Circuits

415128500

$7.62

ER1

Female Terminal

278000998

$4.39

ER1

Seal

415128501

$1.89

ERF

Housing

710000568

$11.12

ERF

Male Terminal

515176164

$7.16

ERF

Clip

710000992

$4.29

ERF

Wire Seal

515176621

$7.49

F

Little Fuse, 5 Amperes

710000742

$8.79

F

Little Fuse, 7.5 Amperes

710000743

$8.49

F

Little Fuse, 10 Amperes

710000744

$8.79

F

Little Fuse, 15 Ampere

710000745

$8.49

F

Little Fuse, 20 Amperes

710000746

$8.49

F

Little Fuse, 30 Amperes

710000747

$8.49

FB

Fuse Box Cover

515177451

$14.24

FB

Case Ass'y with seal, 24 positions

278002824

$35.99

FB

Wire Seal

278000218

$4.39

FB

Wire Seal

278001065

$7.69

FB

Wire Seal

710000048

$7.69

FB

Not Available As Spare Part - Friction Washer

Unavailable

FB

Female Terminal

278002578

$1.04

FB

Female Terminal

710000890

$4.55

FB

Female Terminal

710000918

$7.69

FAN

Female Housing, 2 Circuits

409209500

$15.27

FAN

Female Terminal

278001014

$3.28

FAN

Wire Seal

515176621

$7.49

GPS1

Female Terminal Housing, 1 Circuit

409010400

$7.62

GPS1

Female Terminal

409010100

$5.61

GPS2

Female Terminal Housing, 1 Circuit

409010400

$7.62

GPS2

Female Terminal

409010100

$5.61

HORN

Female Housing, 2 Circuits

515175658

$16.18

HORN

Female Terminal

515175231

$4.39

IGM

Female Housing, 3 Circuits

409209600

$35.99

IGM

Female Terminal

278001014

$3.28

IGM

Wire Seal

515176621

$7.49

IGP

Female Housing, 3 Circuits

409209600

$35.99

IGP

Female Terminal

278001014

$3.28

IGP

Wire Seal

515176621

$7.49

INM

Female Housing, 2 Circuits

409209500

$15.27

INM

Female Terminal

278001014

$3.28

INM

Wire Seal

515176621

$7.49

INM

Tie Wrap 94 mm | 4X4

293750001

$1.03

INP

Female Housing, 2 Circuits

409209500

$15.27

INP

Female Terminal

278001014

$3.28

INP

Wire Seal

515176621

$7.49

INP

Tie Wrap 94 mm | 4X4

293750001

$1.03

J1A

Female Terminal Housing, 34 Circuits

515176342

$21.99

J1A

Female Terminal

515176348

$6.99

J1A

Female Terminal

515176541

$4.55

J1A

Plug

515176345

$21.99

J1B

Female Terminal Housing, 26 Circuits

515176341

$29.49

J1B

Female Terminal

515176348

$6.99

J1B

Female Terminal

515176541

$4.55

J1B

Plug

515176345

$21.99

J2

Female Terminal Housing, 16 Circuits

515176340

$15.80

J2

FEMALE TERMINAL - Call your local BRP dealership

415128499

Unavailable

J2

Female Terminal

278000998

$4.39

J2

Seal

415128501

$1.89

MO

Male Terminal Housing, 6 Circuits

515175668

$16.49

MO

Male Terminal

278000631

$4.39

MO

Female Lock, 6 Circuits

278000735

$3.19

NE

Male Terminal Housing, 2 Circuits

515175654

$9.12

NE

Male Terminal

515175232

$1.58

NH

Male Connector, 2 Circuits

278001113

$16.86

NH

Female Terminal

710001119

$5.39

NV

Housing

710000568

$11.12

NV

Male Terminal

515176164

$7.16

NV

Clip

710000992

$4.29

NV

Wire Seal

515176621

$7.49

PA

Female Housing

515176908

$13.99

PA

Terminal

515176909

$2.21

PB

Female Housing

515176908

$13.99

PB

Terminal

515176909

$2.21

PC1

Female Terminal Housing, 1 Circuit

409010400

$7.62

PC1

Female Terminal

409010100

$5.61

PC2

Open Barrel

278000992

$2.21

PE

Female Housing, 2 Circuits

409209500

$15.27

PE

Female Terminal

278001014

$3.28

PE

Wire Seal

515176621

$7.49

PH

Male Connector, 2 Circuits

278001113

$16.86

PH

Female Terminal

710001119

$5.39

POV

Female Housing, 2 Circuits

515175658

$16.18

POV

Female Terminal

515175231

$4.39

R

Relay, 30 AMP

515176774

$21.99

RSW

Female Terminal Housing, 2 Circuits

515176296

$5.89

RSW

Female Terminal

515175231

$4.39

SA

Female Housing, 3 Circuits

515175495

$16.18

SA

Female Terminal

515175231

$4.39

SD

Male Connector, 2 Circuits

278001113

$16.86

SD

Female Terminal

278001114

$3.19

SH1

Housing, Packard

710001929

$11.12

SW1

Female Terminal Housing, 1 Circuit

409010400

$7.62

SW1

Female Terminal

409010100

$5.61

SW2

Female Terminal Housing, 1 Circuit

409010400

$7.62

SW2

Female Terminal

409010100

$5.61

TM

Female Terminal Housing, 4 Circuit

515177048

$10.99

TM

Lock, 4 Circuits

515177051

$10.49

TM

Female Terminal

515177049

$5.61

TM

Seal

515177050

$7.86

TP

Male Housing, 3 Circuits

278000997

$19.49

TP

Female Terminal

278000998

$4.39

TS

Male Housing, 2 Circuits

278001005

$19.49

TS

Female Terminal

278000998

$4.39

TS

Wire Seal

278000999

$3.19

VC1

Female Terminal Housing, 1 Circuit

409010400

$7.62

VC1

Female Terminal

409010100

$5.61

VC2

Female Terminal Housing, 1 Circuit

409010400

$7.62

VC2

Female Terminal

409010100

$5.61

WMS

Housing

710001927

$8.79
