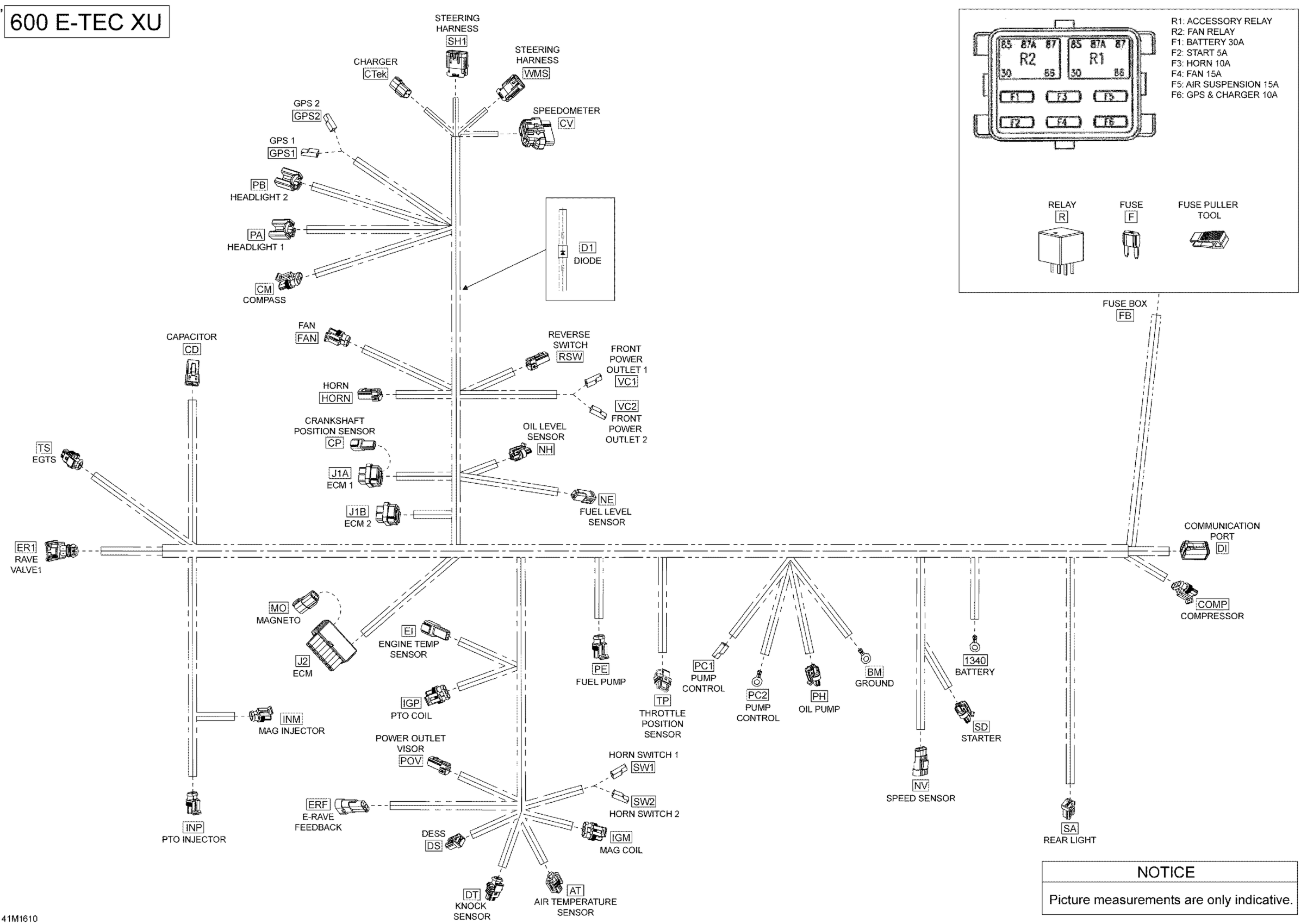

Ski-Doo EXPEDITION - LE-SE-Xtreme 2-STROKE, 2016 Electrical Harness - 600 E-TEC Diagram

#

Description
Price

1

Main Harness | Includes 1 To WMS

515177941

Unavailable

2

Tubing 6 Mm 3000Mm Long

219704425

$13.14

2

Was 409901700 Tubing (9 mm)

219704399

$79.97

2

Tubing 10 MM 1000MM Long

219704407

$2.20

2

Was 409901800 Tubing (13 mm)

219704400

$9.40

2

Tubing 16 Mm 1000Mm Long

219704408

$6.23

2

Was 409901600 Tubing 19mm

219704398

$89.97

2

Not Available As Spare Part - Friction Washer

Unavailable

2

Tubing 25 MM 1000MM Long

219704402

$12.69

3

Not Available As Spare Part - Friction Washer

Unavailable

1340

Open Barrel

278000992

$1.79

AT

Female Terminal Housing

515176890

$11.14

AT

Female Terminal

710001164

$5.92

AT

Wire Seal

710001163

$5.10

BM

Open Barrel

278000992

$1.79

CD

Female Terminal Housing, 2 Circuits

278001673

$23.05

CD

Female Terminal

515175567

$6.03

CD

Female Lock, 2 Circuits

278001671

$3.22

CM

Female Housing, 3 Circuits

409209600

$35.35

CM

Female Terminal

710001340

$5.11

CM

Wire Seal

515176621

$7.00

CM

Tie Wrap 142 mm

293750002

$0.88

COMP

Female Housing, 3 Circuits

409209600

$35.35

COMP

Female Terminal

710001340

$5.11

COMP

Wire Seal

515176621

$7.00

CP

Male Terminal Housing, 2 Circuits

515175665

$8.02

CP

Male Terminal

278000631

$4.12

CP

Male Lock, 2 Circuits

409207500

$3.02

CTek

Mâle Terminal Housing, 2 Circuits

278001674

$29.97

CTek

Male Lock, 2 Circuits

278001672

$3.02

CTek

Male Terminal

515175568

$7.48

CV

Female Housing, 24 Circuits

515175801

$9.00

CV

Retainer Block

515175802

$10.66

CV

Wire Seal

515175803

$2.41

CV

BLOCK - Call your local BRP dealership

515175804

Unavailable

CV

LOCK - Call your local BRP dealership

515175805

Unavailable

CV

Female Terminal

515175806

$0.81

CV

Plug

515175812

$1.70

CV

Female Housing

710000399

$14.02

D1

Not Available As Spare Part - Friction Washer

Unavailable

DI

Male Housing, 6 Circuits

515175673

$13.05

DI

Female Terminal

278000632

$1.69

DI

Sealing Cap

293000052

$2.55

DI

Male Wedge, 6 Circuits

515175678

$5.11

DS

Female Housing, 3 Circuits

515175495

$15.35

DS

Female Terminal

515175231

$4.12

DT

Male Housing, 2 Circuits

278001005

$15.57

DT

Female Terminal

278000998

$3.48

DT

Wire Seal

278000999

$2.55

EI

Male Terminal Housing, 2 Circuits

515175665

$8.02

EI

Male Terminal

278000631

$4.12

EI

Male Lock, 2 Circuits

409207500

$3.02

ER1

Female Terminal Housing, 2 Circuits

415128500

$6.31

ER1

Female Terminal

278000998

$3.48

ER1

Seal

415128501

$1.51

ERF

Housing

710000568

$10.83

ERF

Male Terminal

515176164

$6.43

ERF

Clip

710000992

$4.00

ERF

Wire Seal

515176621

$7.00

F

Little Fuse, 5 Amperes

710000742

$7.24

F

Little Fuse, 7.5 Amperes

710000743

$8.02

F

Little Fuse, 10 Amperes

710000744

$7.24

F

Little Fuse, 15 Ampere

710000745

$6.77

F

Little Fuse, 20 Amperes

710000746

$6.77

F

Little Fuse, 30 Amperes

710000747

$6.77

FB

Fuse Box Cover

515177451

$10.88

FB

Case Ass'y with seal, 24 positions

278002824

$29.22

FB

Wire Seal

278000218

$3.48

FB

Wire Seal

278001065

$6.03

FB

Wire Seal

710000048

$5.10

FB

Not Available As Spare Part - Friction Washer

Unavailable

FB

Female Terminal

278002578

$0.86

FB

Female Terminal

710000890

$3.73

FB

Female Terminal

710000918

$5.10

FAN

Female Housing, 2 Circuits

409209500

$13.48

FAN

Female Terminal

278001014

$2.72

FAN

Wire Seal

515176621

$7.00

GPS1

Female Terminal Housing, 1 Circuit

409010400

$7.48

GPS1

Female Terminal

409010100

$5.46

GPS2

Female Terminal Housing, 1 Circuit

409010400

$7.48

GPS2

Female Terminal

409010100

$5.46

HORN

Female Housing, 2 Circuits

515175658

$15.35

HORN

Female Terminal

515175231

$4.12

IGM

Female Housing, 3 Circuits

409209600

$35.35

IGM

Female Terminal

278001014

$2.72

IGM

Wire Seal

515176621

$7.00

IGP

Female Housing, 3 Circuits

409209600

$35.35

IGP

Female Terminal

278001014

$2.72

IGP

Wire Seal

515176621

$7.00

INM

Female Housing, 2 Circuits

409209500

$13.48

INM

Female Terminal

278001014

$2.72

INM

Wire Seal

515176621

$7.00

INM

Tie Wrap 94 mm | 4X4

293750001

$0.83

INP

Female Housing, 2 Circuits

409209500

$13.48

INP

Female Terminal

278001014

$2.72

INP

Wire Seal

515176621

$7.00

INP

Tie Wrap 94 mm | 4X4

293750001

$0.83

J1A

Female Terminal Housing, 34 Circuits

515176342

$20.74

J1A

Female Terminal

515176348

$6.03

J1A

Female Terminal

515176541

$4.42

J1A

Plug

515176345

$20.74

J1B

Female Terminal Housing, 26 Circuits

515176341

$28.43

J1B

Female Terminal

515176348

$6.03

J1B

Female Terminal

515176541

$4.42

J1B

Plug

515176345

$20.74

J2

Female Terminal Housing, 16 Circuits

515176340

$13.94

J2

FEMALE TERMINAL - Call your local BRP dealership

415128499

Unavailable

J2

Female Terminal

278000998

$3.48

J2

Seal

415128501

$1.51

MO

Male Terminal Housing, 6 Circuits

515175668

$14.02

MO

Male Terminal

278000631

$4.12

MO

Female Lock, 6 Circuits

278000735

$3.02

NE

Male Terminal Housing, 2 Circuits

515175654

$7.48

NE

Male Terminal

515175232

$1.49

NH

Female Housing, 2 Circuits

515177192

$6.32

NH

Not Available As Spare Part - Friction Washer

Unavailable

NV

Housing

710000568

$10.83

NV

Male Terminal

515176164

$6.43

NV

Clip

710000992

$4.00

NV

Wire Seal

515176621

$7.00

PA

Female Housing

515176908

$12.05

PA

Terminal

515176909

$2.12

PB

Female Housing

515176908

$12.05

PB

Terminal

515176909

$2.12

PC1

Female Terminal Housing, 1 Circuit

409010400

$7.48

PC1

Female Terminal

409010100

$5.46

PC2

Open Barrel

278000992

$1.79

PE

Female Housing, 2 Circuits

409209500

$13.48

PE

Female Terminal

278001014

$2.72

PE

Wire Seal

515176621

$7.00

PH

Female Housing, 2 Circuits

515177192

$6.32

PH

Not Available As Spare Part - Friction Washer

Unavailable

POV

Female Housing, 2 Circuits

515175658

$15.35

POV

Female Terminal

515175231

$4.12

R

Relay, 30 AMP

515176774

$19.20

RSW

Female Terminal Housing, 2 Circuits

515176296

$5.11

RSW

Female Terminal

515175231

$4.12

SA

Female Housing, 3 Circuits

515175495

$15.35

SA

Female Terminal

515175231

$4.12

SD

Female Housing, 2 Circuits

515177192

$6.32

SD

Not Available As Spare Part - Friction Washer

Unavailable

SH1

Housing, Packard

710001929

$10.83

SW1

Female Terminal Housing, 1 Circuit

409010400

$7.48

SW1

Female Terminal

409010100

$5.46

SW2

Female Terminal Housing, 1 Circuit

409010400

$7.48

SW2

Female Terminal

409010100

$5.46

TP

Male Housing, 3 Circuits

278000997

$15.57

TP

Female Terminal

278000998

$3.48

TS

Housing Connector

515177298

$10.14

VC1

Female Terminal Housing, 1 Circuit

409010400

$7.48

VC1

Female Terminal

409010100

$5.46

VC2

Female Terminal Housing, 1 Circuit

409010400

$7.48

VC2

Female Terminal

409010100

$5.46

WMS

Housing

710001927

$8.57
