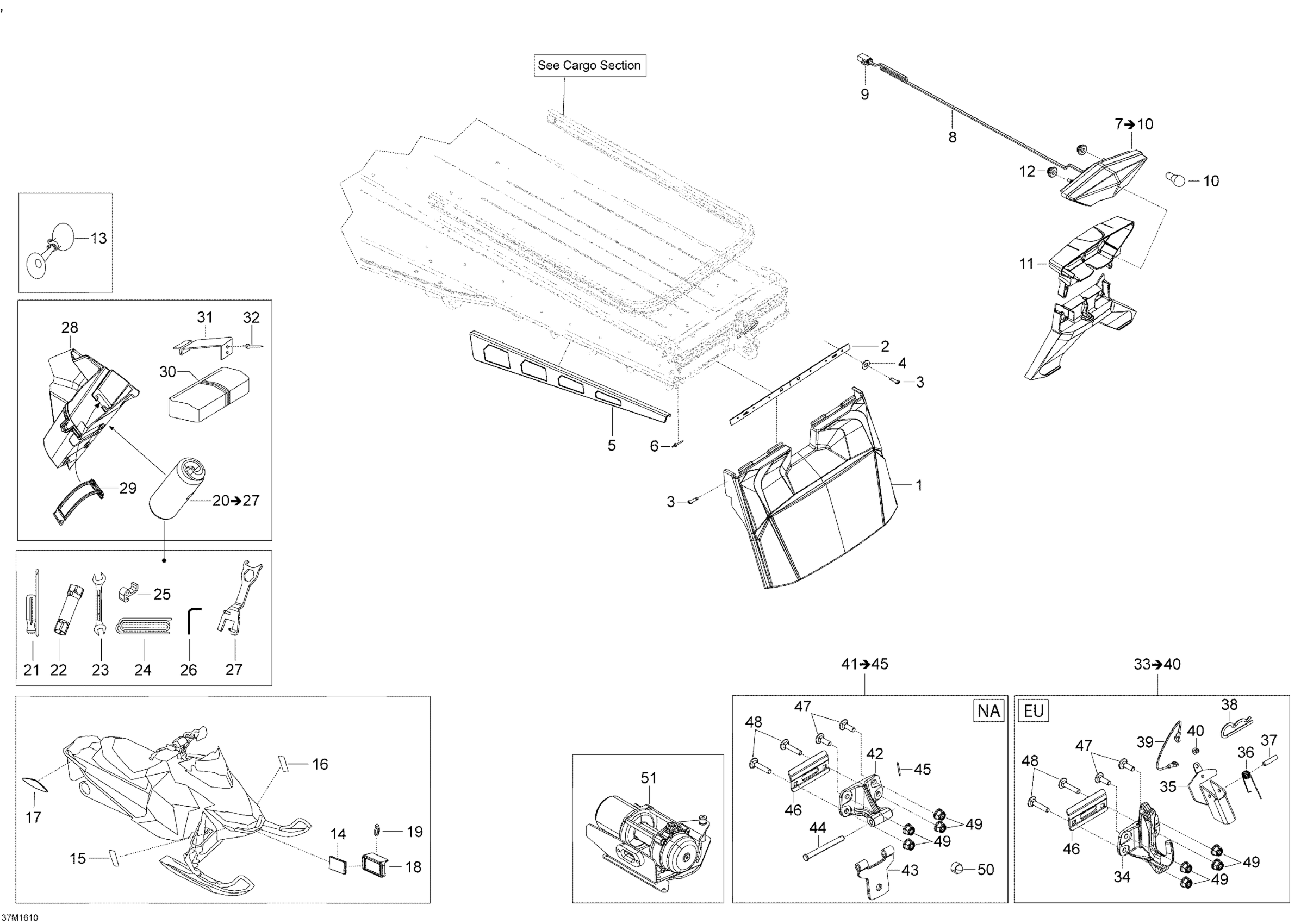

Ski-Doo EXPEDITION - LE-SE-Xtreme 2-STROKE, 2016 09- Utilities Diagram

#

Description
Price

1

Black, Snow Guard Long

520001410

$106.99

1

Snow Guard

520001406

$85.49

2

Plate

520001021

$37.99

3

Forming Screw M5 x 16

250000676

$1.01

4

Washer M5

250200025

$0.74

5

RH Protector

520000693

$52.99

5

LH Protector

520000694

$52.99

6

Rivet Hucklok

293150163

$2.99

7

Rear Light | Includes 200 to 200a

520000848

$99.49

8

Rear Wiring Harness

520000849

$53.99

9

Male Housing, 3 Circuits

515175494

$16.18

10

Bulb

520000758

$9.10

11

Rear Light Cover

511000764

$38.99

12

Stopper Rubber

705014429

$5.95

13

Horn

549011291

$35.99

14

Reflector (Bright)

21118

$28.99

15

Yellow, RH Reflector

520001600

$33.99

16

Yellow, LH Reflector

520001601

$33.99

17

Amber, Lateral Reflector

705002423

$15.49

17

Red, Lateral Reflector

705003412

$15.49

18

Deep Black, Reflector Support

520000871

$5.79

19

TIE RAP - Call your local BRP dealership

27120

$0.95

20

Tools Kit | Includes 1400 to 1400e

520001670

$49.49

21

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

22

Set Key, 16/21 mm

529000046

$14.49

23

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

24

Was 412500100 Rope-Starter

219704403

$158.99

25

Starter Grip

529000060

$14.15

26

Spacing Tool

520001142

$10.52

27

Wrench

520001499

$13.73

28

TOOL KIT RACK - Call your local BRP dealership | Model-LE & SE

520000720

Unavailable

29

Latch

520000528

$7.69

30

TOOLS BOX - Call your local BRP dealership

708200043

Unavailable

31

Tool Kit Rack

5346728

$22.49

32

Rivet

36108

$1.90

33

Hitch Ass'y | Includes 3600 to 3600f

520001774

$73.99

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Pin

41012

$6.39

38

Hair pin

41029

$4.44

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Avex Rivet

390909100

$0.30

41

Hitch Ass'y | Includes 3600 to 3600a

520001398

$72.99

42

Not Available As Spare Part - Friction Washer

Unavailable

43

Not Available As Spare Part - Friction Washer

Unavailable

44

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

45

Cotter Pin

41031

$7.65

46

Plate

520000727

$36.99

47

Carriage Bolt, M8 X 25 | XXC

207782544

$1.58

48

Bolt Carriage M8 X 40

207784044

$1.15

49

Hex. Flange Elastic Nut M8

233281414

$1.47

50

Cover | Model-T3

28056

$5.89

51

WINCH KIT - Call your local BRP dealership | Includes 30 to 30,009

619400069

Unavailable
