Description

Price

1

Front Seat Foam

510005999

$424.58

2

Cover, front

510005724

$230.74

3

Cover rear

510005256

$166.12

4

Rear Seat Foam

510006094

$313.82

5

Seat Base

510004816

$90.74

6

Backrest Plate

510005330

$66.12

7

Flat Washer 6 mm

234062410

$0.64

8

Black, Dart

414644300

$0.78

9

Rivet | Model-T3

293150067

$2.29

10

Latch, Black

708000144

$11.09

11

Spring

708000369

$8.60

12

Hex. Screw M6 X 80

207068044

$3.39

13

Push Nut

732610072

$1.72

14

Flat Washer 6 mm

234061410

$1.04

15

Stopper Rubber

510006005

$5.25

16

Pop Rivet 1/8”

293150015

$0.34

17

Backrest Foam

510006205

$164.99

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Backrest Cover

510005259

$221.51

20

RH Arm

510005420

$69.20

21

LH Arm

510005419

$70.74

22

Forming Screw M10 x 25

250000553

$4.28

23

Not Available As Spare Part - Friction Washer

Unavailable

24

RH HANDLE - Call your local BRP dealership

510005865

Unavailable

25

Torx Truss Screw M6 X 16

250000721

$1.39

26

Nut Welded, M6

293100003

$6.32

27

Handle Grip

510004449

$10.65

28

RH Deflector

510004415

$26.12

29

Screw 25MM

250000961

$2.38

30

Heater

515176393

$59.20

31

Was 515175506 Tubing

219704426

$136.12

32

HANDLE REINFORFORCEMENT - Call your local BRP dealership

510004709

Unavailable

33

Adapter

510004939

$14.09

34

Not Available As Spare Part - Friction Washer

Unavailable

35

LH Handle

510005862

$120.74

36

Torx Truss Screw M6 X 16

250000721

$1.39

37

Nut Welded, M6

293100003

$6.32

38

Handle Grip

510004449

$10.65

39

LH Deflector

510004416

$26.12

40

Screw 25MM

250000961

$2.38

41

Heater

515176393

$59.20

42

Was 515175506 Tubing

219704426

$136.12

43

Switch Housing

510004566

$11.94

44

Torx Screw K50 X 16

250000720

$1.39

45

Rocker Switch

510004413

$8.57

46

Switch Protector

510004414

$7.37

47

LH Handle Harness

515176241

Unavailable

48

Tie-Rap 180 mm

414115200

$0.09

49

Handle Heater Decal

516002835

$10.35

50

HANDLE REINFORFORCEMENT - Call your local BRP dealership

510004709

Unavailable

51

Passenger Handle Trim

510006602

$11.71

52

Counter Plate

510004990

$29.97

53

Hex Forming Screw DIN.7500D

250000376

$7.31

54

Lock Ass'y | Includes 54 to 57

510004992

$34.58

55

Lock

5243419

$7.57

56

Screw

510004993

$13.99

57

Pin

414821400

$6.23

58

Sleeve

510005507

$18.43

59

Security Lock

510005139

$55.35

60

Socket Screw HD.DIN.912

205064044

$2.06

61

Elastic Stop Nut M6

232561434

$1.55

62

Hex. Flange Screw M8 x 60

207686044

$2.56

63

Hex. Flange Elastic Nut M8

233281414

$1.14

64

Cover | Model-T3

28056

$5.52

65

Seat Wiring Harness This part replaces 515177209.

515179606

Unavailable

66

Female Housing, 3 Circuits

515175495

$15.35

66

Female Terminal

515175231

$4.12

67

Female Terminal Housing, 8 Circuits

515175819

$7.46

67

Female Terminal

515175231

$4.12

68

Not Available As Spare Part - Friction Washer

Unavailable

69

Male Housing, 3 Circuits

515175494

$15.35

70

Male Terminal Housing, 8 Circuits

515175817

$8.57

71

Seat Wiring Harness This part replaces 515177210.

515179607

$101.51

72

Female Housing, 3 Circuits

515175495

$15.35

72

Female Terminal

515175231

$4.12

73

Male Housing, 3 Circuits

515175494

$15.35

73

Male Terminal

515175232

$1.49

74

Not Available As Spare Part - Friction Washer

Unavailable

75

OPEN BARREL - Call your local BRP dealership

515175172

Unavailable

76

Cap

572103300

$9.65

77

Storage Box

510006243

$218.43

78

Storage Box Cover

510006244

$39.99

79

Bushing

510005147

$9.91

80

Torx Truss Screw M6 x 12 | Model-T3

250000675

$0.92

81

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

82

Cover

510004999

$16.12

83

Lock tube

510005714

$402.28

84

Cable Support Plate

510005156

$17.66

85

Seat Retainer Cable

293750070

$10.23

86

Pop Rivet 3/16"

390402200

$0.26

87

Plug

605452114

$8.60

88

Latch Spring

269700017

$7.27

89

Puller

510005072

$18.43

90

Lock Pin Cover

510005698

$19.20

91

Forming Screw M5 x 16

250000676

$0.83

92

Locking Plate

510005845

$63.82

93

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

94

LOCK PIN - Call your local BRP dealership

605452035

Unavailable

95

Elastic Flange Nut M6 X 1.0

233261416

$1.74

96

Lock Pin Guide

510005044

$14.02

97

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

98

FASTENER PIN - Call your local BRP dealership

510004876

Unavailable

99

Hex. Nut M6

250000135

$0.51

100

Washer

20117

$5.22

101

Elastic Stop Nut M6

232561434

$1.55

102

Foam

510005043

$66.12

103

Battery Cover

510005079

$17.66

104

Battery Support

515176804

$74.58

105

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

106

Tie-Rap

605627000

$3.68

107

Forming Screw M5 x 16

250000676

$0.83

108

Cap

572051500

$5.38

109

Battery Strap

510005143

$74.58

109

Battery Strap | 30 ampere/hour

510005250

$77.66

110

Strap Cover

510005146

$26.89

111

Strap Cover | 30 ampere/hour

605356094

$8.62

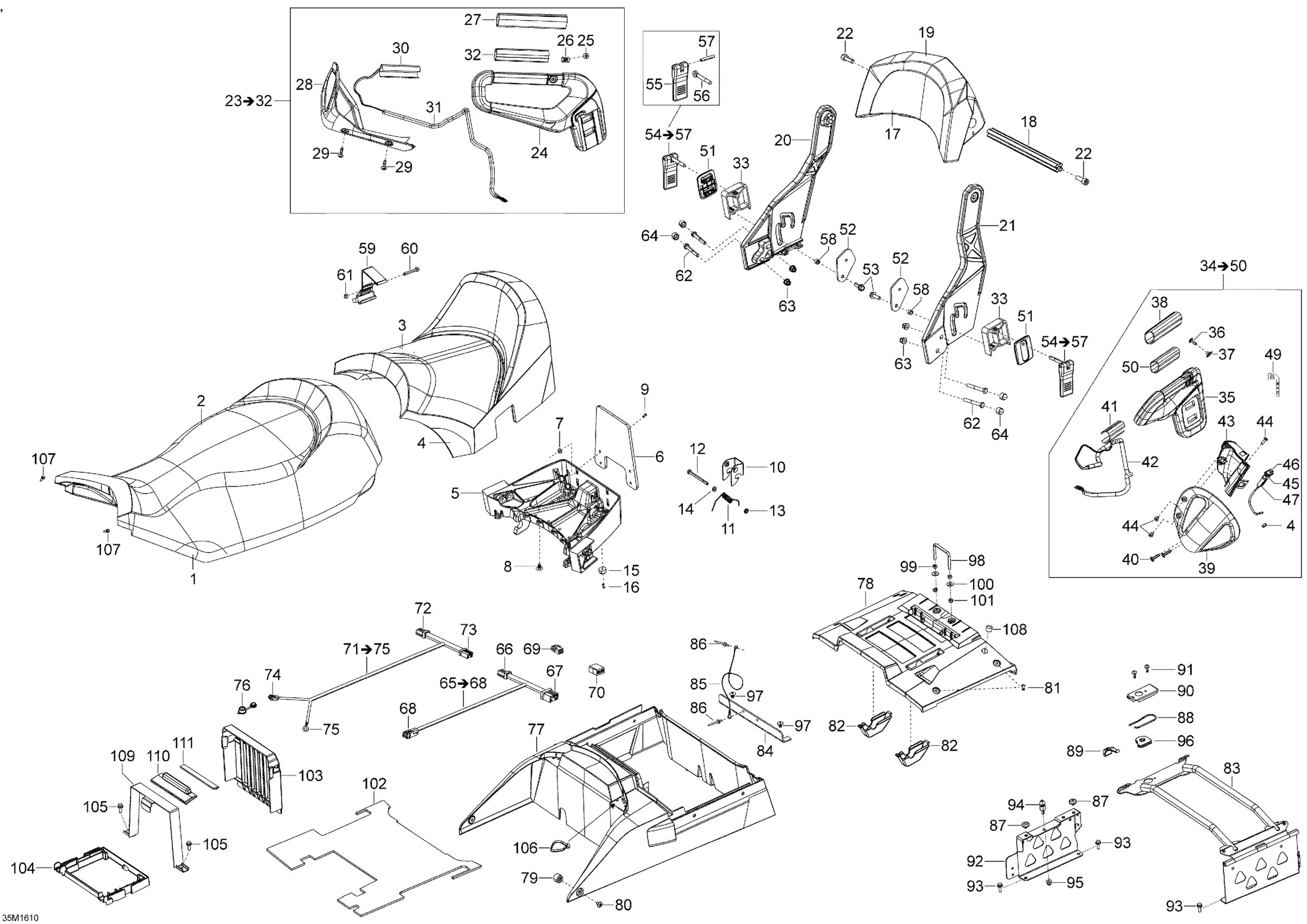

Ski-Doo EXPEDITION - LE-SE-Xtreme 2-STROKE, 2016 Seat Diagram

Front Seat Foam

Cover, front

Cover rear

Rear Seat Foam

Seat Base

Backrest Plate

Flat Washer 6 mm

Black, Dart

Rivet | Model-T3

Latch, Black

Spring

Hex. Screw M6 X 80

Push Nut

Flat Washer 6 mm

Stopper Rubber

Pop Rivet 1/8”

Backrest Foam

Not Available As Spare Part - Friction Washer

Backrest Cover

RH Arm

LH Arm

Forming Screw M10 x 25

Not Available As Spare Part - Friction Washer

RH HANDLE - Call your local BRP dealership

Torx Truss Screw M6 X 16

Nut Welded, M6

Handle Grip

RH Deflector

Screw 25MM

Heater

Was 515175506 Tubing

HANDLE REINFORFORCEMENT - Call your local BRP dealership

Adapter

Not Available As Spare Part - Friction Washer

LH Handle

Torx Truss Screw M6 X 16

Nut Welded, M6

Handle Grip

LH Deflector

Screw 25MM

Heater

Was 515175506 Tubing

Switch Housing

Torx Screw K50 X 16

Rocker Switch

Switch Protector

LH Handle Harness

Tie-Rap 180 mm

Handle Heater Decal

HANDLE REINFORFORCEMENT - Call your local BRP dealership

Passenger Handle Trim

Counter Plate

Hex Forming Screw DIN.7500D

Lock Ass'y | Includes 54 to 57

Lock

Screw

Pin

Sleeve

Security Lock

Socket Screw HD.DIN.912

Elastic Stop Nut M6

Hex. Flange Screw M8 x 60

Hex. Flange Elastic Nut M8

Cover | Model-T3

Seat Wiring Harness This part replaces 515177209.

Female Housing, 3 Circuits

Female Terminal

Female Terminal Housing, 8 Circuits

Female Terminal

Not Available As Spare Part - Friction Washer

Male Housing, 3 Circuits

Male Terminal Housing, 8 Circuits

Seat Wiring Harness This part replaces 515177210.

Female Housing, 3 Circuits

Female Terminal

Male Housing, 3 Circuits

Male Terminal

Not Available As Spare Part - Friction Washer

OPEN BARREL - Call your local BRP dealership
