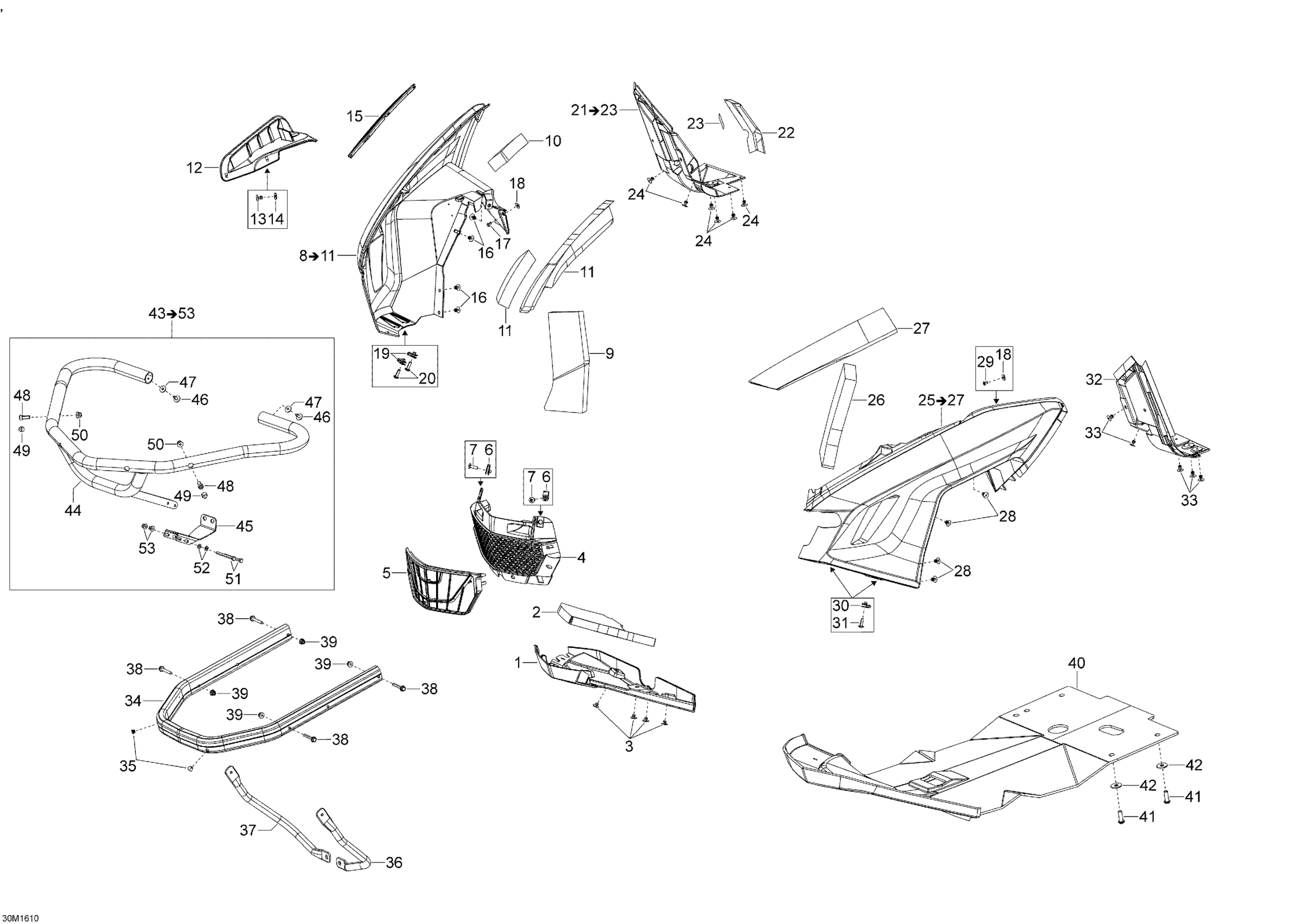

Ski-Doo EXPEDITION - LE-SE-Xtreme 2-STROKE, 2016 Bottom Pan Diagram

#

Description
Price

1

Black, Front Bottom Pan

502008006

$136.89

2

Insulator

502007002

$27.66

3

Pop Rivet 3/16"

293150103

$0.54

4

Grille

502007145

$52.28

5

Front Grille With Mesh | Package EXTREME

502007393

$76.12

6

Panel Nut M6 X 1.0

250100198

$1.73

7

Torx Screw M6 X 20

250000722

$1.34

8

Bottom Pan R.H. | Package SWT & LE This part replaces 502007993.

502007994

$136.89

8

Bottom Pan R.H. | Package SE This part replaces 502007187.

502007992

$155.35

8

Bottom Pan R.H. | Package EXTREME This part replaces 502007995.

502007996

$155.35

9

Insulator | Model LE, SE

502007006

$27.66

9

Insulator

502007526

$27.66

10

Insulator | Model LE, SE

502007008

Unavailable

11

Insulator | Except Package EXTREME

502007009

$17.66

11

Insulator | Package EXTREME

517305977

$67.66

12

RH Bottom Pan Air Vent | Package EXTREME

517306982

$28.43

13

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

14

Washer M5

250200025

$0.61

15

RH Bottom Pan Grille | Package EXTREME

517305976

$34.58

16

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

17

Pop Rivet 3/16"

390402200

$0.26

18

Flat Washer

234052450

$2.06

19

Panel Nut M6 X 1.0

250100198

$1.73

20

Torx Screw M6 X 20

250000722

$1.34

21

Black Bottom Pan Rear Ass'y RH | Includes 21 To 23

502007191

$93.05

22

Aluminium Foil

502007038

$16.12

23

Aluminum foil

44110

Unavailable

24

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

25

Black, LH Bottom Pan | Except Package SE

502008000

$110.74

25

Deep Black, LH Bottom Pan | Package SE

502008002

$179.97

26

Insulator

502007003

$27.66

27

Insulator

502007185

$27.66

28

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

29

Pop Rivet 3/16"

390402200

$0.26

30

Panel Nut M6 X 1.0

250100198

$1.73

31

Torx Screw M6 X 20

250000722

$1.34

32

LH Rear Bottom Pan

502008012

$103.05

33

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

34

Bumper | Model-LE

502007469

Unavailable

34

Bumper | Model-SE

502007470

$138.43

35

Full Moon Dart 8 mm

293730041

$2.12

35

Black, Dart 8 mm

293730047

$2.14

36

LH Bumper Support

502007014

$94.58

37

RH Bumper Support

502007015

$94.58

38

Hex. Flange Screw M6 X 40

207664044

$2.18

39

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

40

Skid Plate | Package SE

860200563

Unavailable

41

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.61

42

Flat Washer 8 mm

234082410

$1.11

43

Extra Bumber Paint | Includes 50 to 50,01

860200537

Unavailable

44

Not Available As Spare Part - Friction Washer

Unavailable

45

Lower Fastening Plate

502007022

$33.82

46

Torx Head Screw M6 X 16

250000717

$1.74

47

Washer

20117

$5.22

48

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

49

Cover | Model-T3

28056

$5.52

50

Hex. Flange Elastic Nut M8

233281414

$1.14

51

Hex. Screw M6 X 60

207066044

$0.56

52

Flat Washer 6 mm

234061410

$1.04

53

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11
