Description

Price

1

Black, Ski

505073227

$179.99

2

Ski Bushing

505071781

$16.18

3

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$92.99

4

Hex. Flange Elastic Nut M8

233281414

$1.47

5

Black, Handle

505072976

$35.99

6

Retainer 17mm long

505071812

$5.95

7

Retainer 23mm Long

505072133

$6.78

8

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

9

Spacer

506133300

$23.99

10

Washer

732900049

$0.58

11

Hex. Flange Elastic Nut M10

233201414

$1.58

12

Ski Stopper

505072594

$18.49

13

LH Ski Leg

505073628

$249.99

13

Black, LH Ski Leg | Package SE

505073630

$249.99

13

RH Ski Leg

505073629

$249.99

13

Black, Ski Leg RH | Package SE

505073631

$249.99

14

Leg Bushing

505072690

$12.49

15

Spacer

505071999

$14.99

16

Black Epoxy, RH Lower Arm

505073584

$204.99

16

Black Epoxy, LH Lower Arm

505073583

$204.99

17

Bushing

505073330

$9.23

18

Sleeve

505072209

$17.84

19

Wear Plate

505072634

$6.29

20

Screw Hex. M10 X 70

250001024

$2.11

21

Black Epoxy, LH Upper Arm

505073588

$154.99

21

Black Epoxy, RH Upper Arm

505073589

$154.99

22

Bushing

505073329

$9.23

23

Sleeve

505072143

$9.00

24

Screw Hex. M10 X 60

250001023

$2.11

25

Screw Hex. M10 X 50

250001022

$1.69

26

Washer

503189564

$0.74

27

Washer

505072392

$4.76

28

Hex. Flange Elastic Nut M10

250100165

$0.85

29

Stabilisator

505072602

$68.99

30

Bushing

505072064

$2.32

31

Stabilisator Lever

505072394

$18.73

32

Hex. Flange Screw M6 X 30

207663046

$1.69

33

Elastic Flange Nut M6 X 1.0

233261416

$2.11

34

Sway Bar Double Joint Link

505072204

$21.99

35

Hex. Flange Screw M6 X 30

207663046

$1.69

36

Elastic Flange Nut M6 X 1.0

233261416

$2.11

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Front Shock

505072517

$248.99

38

Front Shock | Includes 1 to 12

505073555

$635.99

39

Full Moon Spring 300mm-14 N/MM

503192286

$51.99

39

Deep Black, Spring

505072741

$67.99

40

Spring Seat

230076

$9.69

40

Spring Stopper

503194270

$19.99

41

Adjustment Cam

505073625

$12.99

42

Spring Guide

503191872

$2.29

43

Adjustment Knob

505072753

$2.19

44

Allen Screw M3 X 0.5 X 10

250000644

$2.11

45

Hex. Screw M10 X 55

207005544

$2.22

46

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

47

Washer

503189564

$0.74

48

Hex. Flange Elastic Nut M10

233201414

$1.58

49

Ball Joint

505073636

$51.99

50

Circlip

293370070

$8.99

51

Flat Washer 12 mm

234021410

$0.72

52

Hex. Elastic Hex. Nut M12

250100089

$0.46

53

Upper Ball Joint

505072913

$72.99

54

Circlip

293370035

$2.64

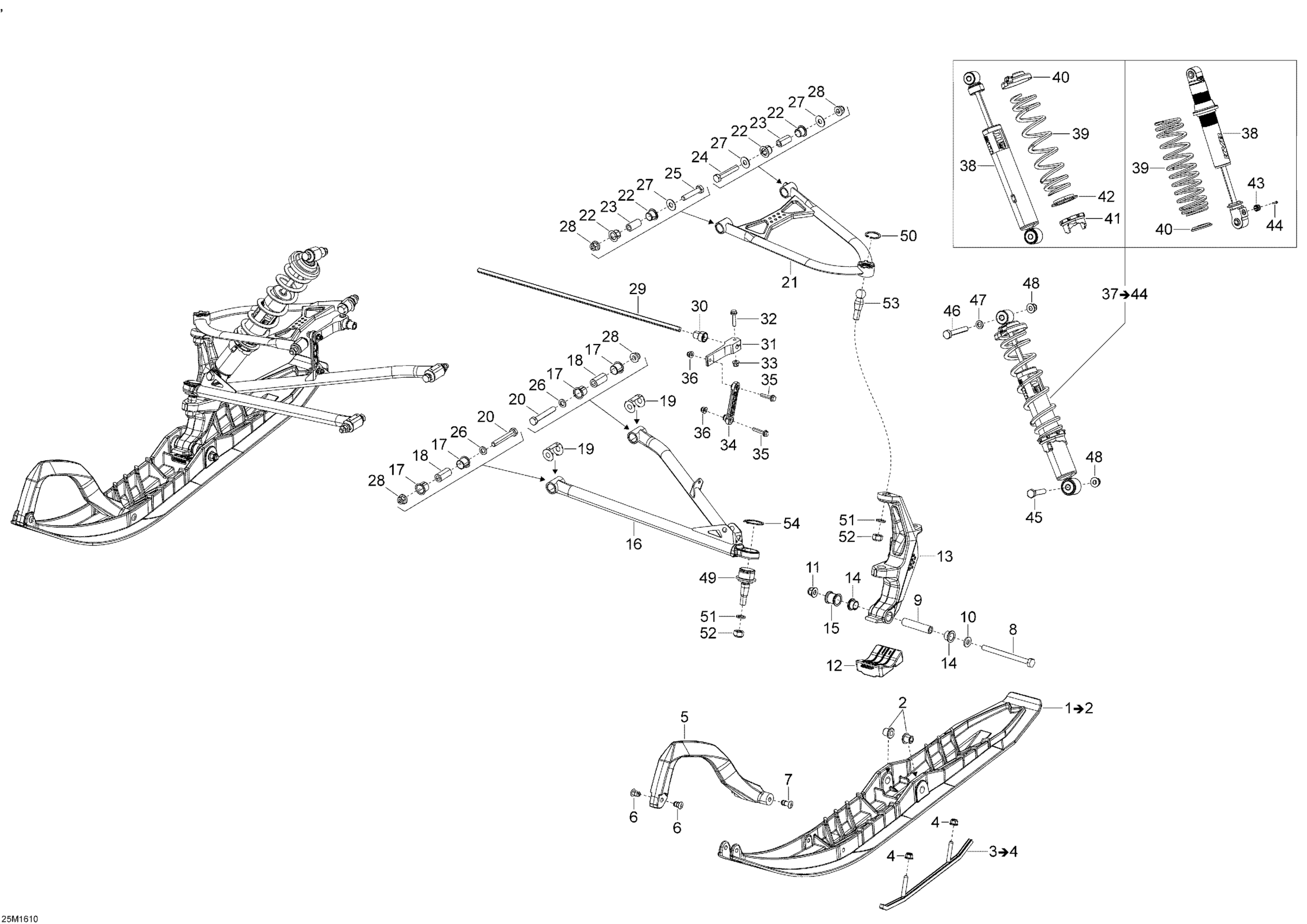

Ski-Doo EXPEDITION - LE-SE-Xtreme 2-STROKE, 2016 07- Front Suspension and Ski Diagram

Black, Ski

Ski Bushing

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

Hex. Flange Elastic Nut M8

Black, Handle

Retainer 17mm long

Retainer 23mm Long

Hex. Screw M10 X 130 | Model-RT STD

Spacer

Washer

Hex. Flange Elastic Nut M10

Ski Stopper

LH Ski Leg

Black, LH Ski Leg | Package SE

RH Ski Leg

Black, Ski Leg RH | Package SE

Leg Bushing

Spacer

Black Epoxy, RH Lower Arm

Black Epoxy, LH Lower Arm

Bushing

Sleeve

Wear Plate

Screw Hex. M10 X 70

Black Epoxy, LH Upper Arm

Black Epoxy, RH Upper Arm

Bushing

Sleeve

Screw Hex. M10 X 60

Screw Hex. M10 X 50

Washer

Washer

Hex. Flange Elastic Nut M10

Stabilisator

Bushing

Stabilisator Lever

Hex. Flange Screw M6 X 30

Elastic Flange Nut M6 X 1.0

Sway Bar Double Joint Link

Hex. Flange Screw M6 X 30

Elastic Flange Nut M6 X 1.0

Not Available As Spare Part - Friction Washer

Front Shock

Front Shock | Includes 1 to 12

Full Moon Spring 300mm-14 N/MM

Deep Black, Spring

Spring Seat

Spring Stopper

Adjustment Cam

Spring Guide

Adjustment Knob

Allen Screw M3 X 0.5 X 10

Hex. Screw M10 X 55

Hex. Screw M10 X 1.5 X 65

Washer

Hex. Flange Elastic Nut M10

Ball Joint

Circlip

Flat Washer 12 mm

Hex. Elastic Hex. Nut M12

Upper Ball Joint

Circlip
