Description

Price

1

Fuel Tank

513033757

$589.99

2

Fuel Tank Cap 95 Octane | Europe

513033723

$26.99

2

Fuel Tank Cap 91 Octane

513033722

$22.49

3

Fuel Sensor

513033538

$82.99

4

Grommet

293720058

$11.99

5

Check Valve

513033842

$35.99

6

Grommet

513033596

$21.99

7

Polyurethane Hose 10000Mm Long

219704410

$56.99

8

Tie-Rap 180 mm

414115200

$0.11

9

O Ring

293300184

$3.38

10

Fuel Pump Ass'y | Includes 13 to 15

513033643

$259.99

11

Fuel Filter

415129451

$25.99

12

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

13

Ring

513033180

$19.99

14

Gasket

513033334

$24.49

15

Clamp

513033628

$20.49

16

Hose Ass'y

513033589

$194.99

17

Locking Clip

513033135

$5.89

18

Tubing 16 Mm 1000Mm Long

219704408

$7.49

19

Hose Ass'y | Includes 22 to 23

513033594

$88.99

20

Locking Clip

513033135

$5.89

21

Bracket

513033542

$14.99

22

Bracket

513033593

$18.99

23

Hex. Flange Screw M5 X 10

207551044

$4.12

24

Hose Ass`Y

513033631

$309.99

25

FORMED HOSE - Call your local BRP dealership

513033544

Unavailable

26

Crimp Clamp, 15.3-706R

293650047

$3.29

27

Insulate Foam

513033788

$10.49

28

HOSE CONNECTOR - Call your local BRP dealership

513033821

Unavailable

29

Spring Clamp

414554800

$0.88

30

Protector Tube

504153074

$14.49

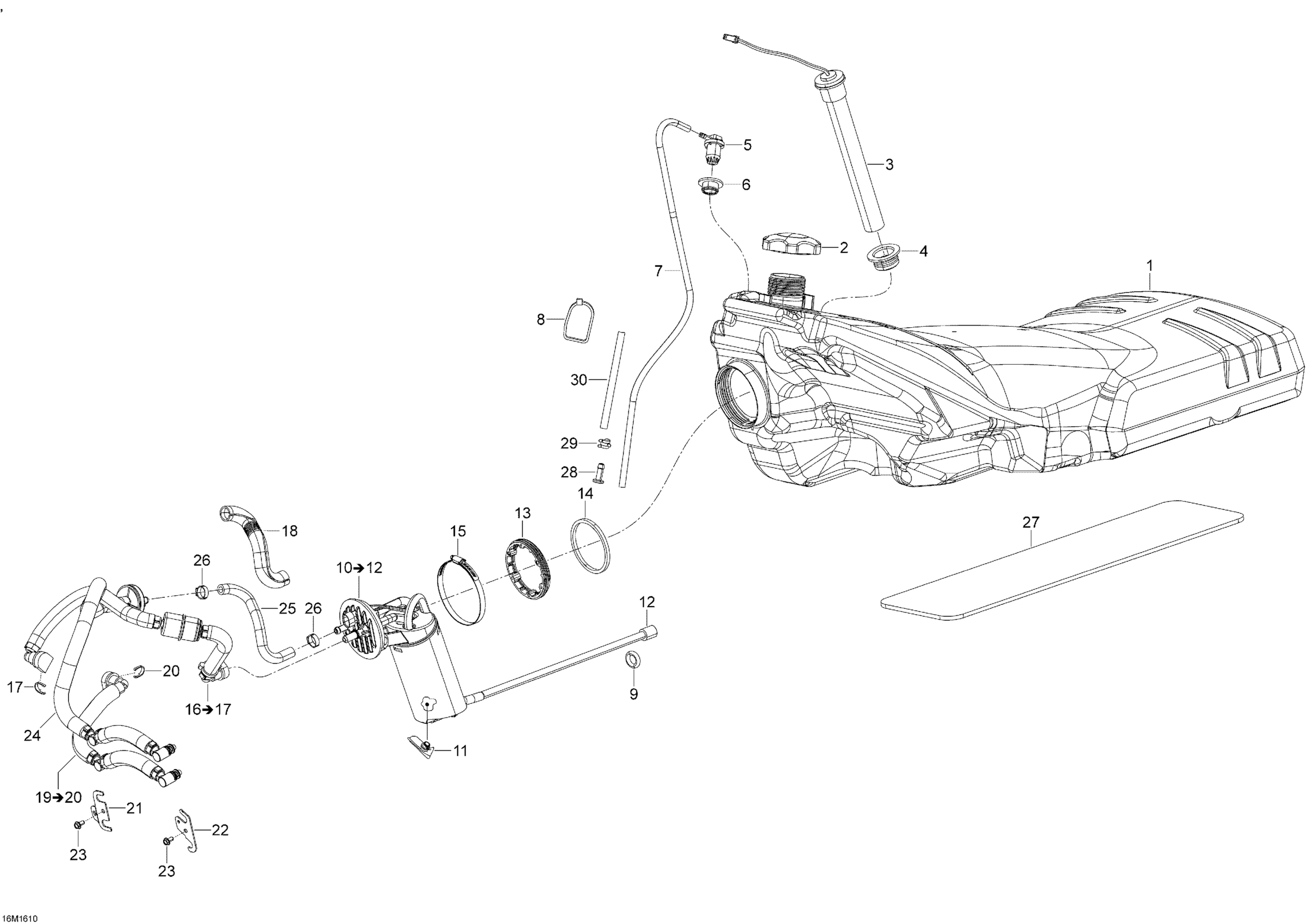

Ski-Doo EXPEDITION - LE-SE-Xtreme 2-STROKE, 2016 02- Fuel System Diagram

Fuel Tank

Fuel Tank Cap 95 Octane | Europe

Fuel Tank Cap 91 Octane

Fuel Sensor

Grommet

Check Valve

Grommet

Polyurethane Hose 10000Mm Long

Tie-Rap 180 mm

O Ring

Fuel Pump Ass'y | Includes 13 to 15

Fuel Filter

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

Ring

Gasket

Clamp

Hose Ass'y

Locking Clip

Tubing 16 Mm 1000Mm Long

Hose Ass'y | Includes 22 to 23

Locking Clip

Bracket

Bracket

Hex. Flange Screw M5 X 10

Hose Ass`Y

FORMED HOSE - Call your local BRP dealership

Crimp Clamp, 15.3-706R

Insulate Foam

HOSE CONNECTOR - Call your local BRP dealership

Spring Clamp

Protector Tube
