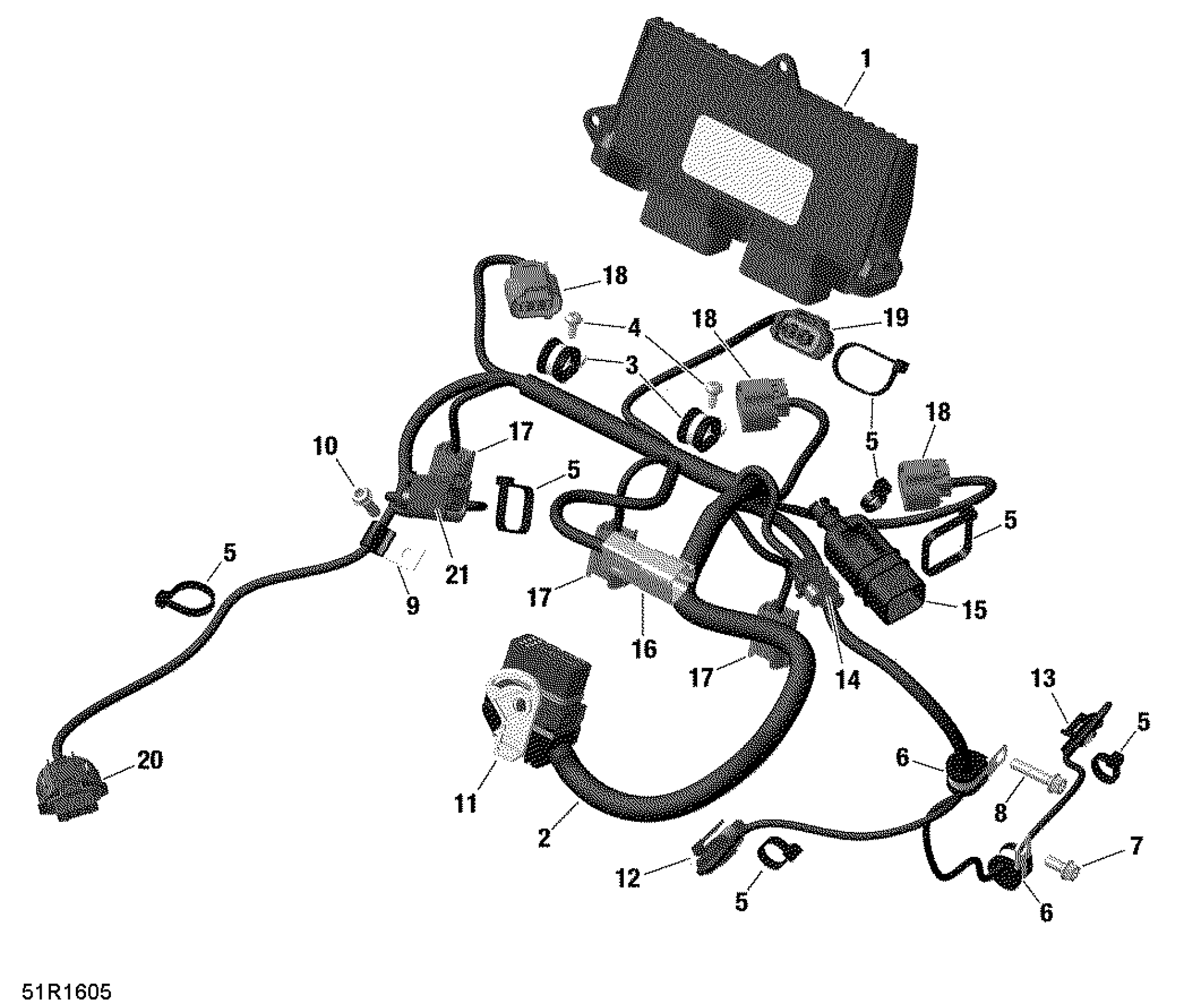

Ski-Doo EXPEDITION - LE-SE 4-STROKE, 2016 Engine Harness and Electronic Module - 1200iTC 4-TEC Diagram

Electronic Box

420666920

$1.00

Engine Wiring Harness Ass'Y | Includes 11 to 21 Except 15 This part replaces 420666691.

420666692

$519.99

CABLE CLAMP - Call your local BRP dealership

420851108

$8.79

Torx Screw M5 X 12

420640086

$2.11

Tie Rap

420651397

$1.01

Cable Clamp

420851492

$14.28

Hex. Flange Screw M6 X 12

420440147

$2.00

Torx Flange Screw M6 X 25

420440234

$3.06

CABLE CLAMP - Call your local BRP dealership

420253150

Unavailable

Torx Flange Screw M6 X 25

420440234

$3.06

Not Available As Spare Part - Friction Washer

Unavailable

Male Housing, 2 Circuits

278001005

$19.49

Male Housing, 1 Circuit

278001012

$16.86

Male Housing, 2 Circuits

278001005

$19.49

PROTECTOR - Call your local BRP dealership

420201070

Unavailable

Female Housing, 4 Circuits

278000635

$16.49

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Female Terminal

710000335

$2.29

Seal

409012300

$4.54

Housing

278003197

$15.99

Male Connector

515176410

$51.49

Female Housing

515177406

$38.99
