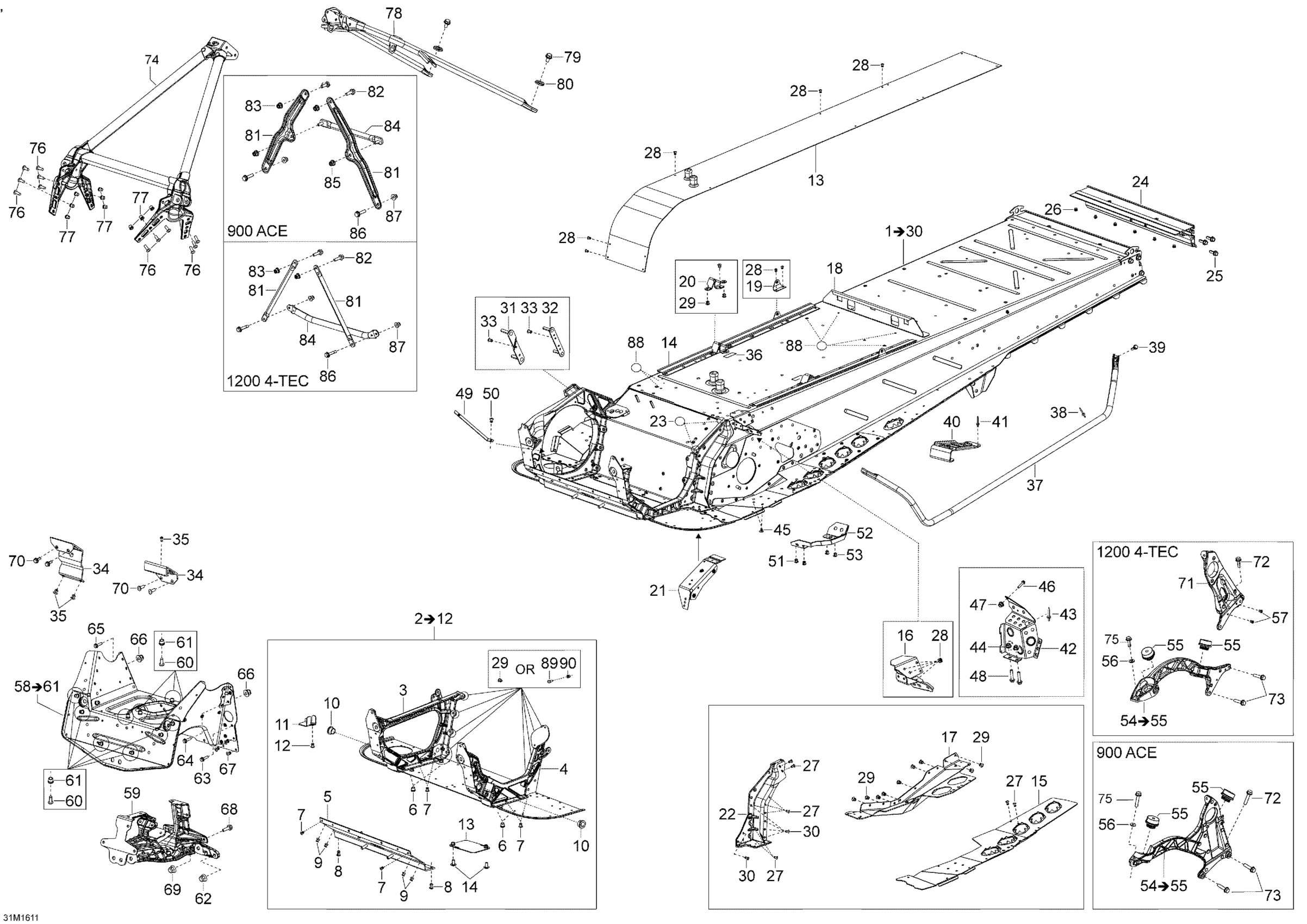

Ski-Doo EXPEDITION - LE-SE 4-STROKE, 2016 09- Frame Diagram

#

Description
Price

1

BLACK FRAME - Call your local BRP dealership | Includes 1 To 30, Model-900 ACE

518328840

Unavailable

1

BLACK FRAME - Call your local BRP dealership | Includes 1 To 30, Model-1200 4-TEC

518328841

Unavailable

2

Module E | Includes 2 To 12

518328815

$959.99

2

Module E | Engine 1200 4-TEC

518328187

$989.99

3

RH Side Member

518326328

$284.99

4

LH Side Member

518326330

$284.99

5

Front Member

518326198

$64.99

6

Clinch Nut Hexsert M8

605636002

$7.51

7

Avex Rivet

390909100

$0.30

8

Hemlock Rivet 6.5 mm

293150120

$7.41

9

Hemlock Rivet, 6.5 mm

293150119

$4.29

10

Leg Bushing

505072690

$12.49

11

Muffler Support

518327983

$21.99

11

Muffler Support

518327448

$16.49

12

Rivet Hucklok

293150163

$2.99

13

Tunnel Radiator | Includes 10p to 10q

509000976

$719.99

14

Fastening rail

518326107

$18.49

15

LH Footrest

518328821

$88.99

15

RH Footrest

518328822

$88.99

16

Fastening Bracket

605355235

$56.99

17

LH Drive Axle Cover

518328016

$209.99

17

RH Drive Axle Cover

518328017

$209.99

18

BATTERY SUPPORT PLATE - Call your local BRP dealership

518325986

$78.99

19

Seat Box Bracket

518327457

$31.99

20

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

Unavailable

20

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

Unavailable

21

Clinch Nut plate

518326430

$44.49

22

LH Frame Corner

518325524

$56.99

22

RH Frame Corner

518328024

$52.99

23

Adhesive Patch

518325560

$4.69

24

Rear Profile

518328748

$234.99

25

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

26

Hemlock Rivet, 6.4 mm

293150174

$7.86

27

Avex Rivet

390909100

$0.30

28

Avex Rivet

390909200

$0.30

29

Hemlock Rivet, 6.5 mm

293150119

$4.29

30

Rivet

293150183

$2.11

31

Gearbox Front Plate

518326123

$17.49

32

Gearbox Rear Plate

518326124

$17.99

33

Pop Rivet 3/16"

390402200

$0.35

34

Engine Support

518326178

$64.49

34

MAG Engine Support

518325371

$77.49

35

Hemlock Rivet, 6.4 mm

293150174

$7.86

35

Hemlock Rivet, 6.4 mm

293150174

$7.86

36

LH Footboard Support Tube

518326963

$139.99

36

RH Footboard Support Tube

518326964

$139.99

37

Avex Rivet

390909100

$0.30

38

Hex. Flange Screw M6 x 20

207662056

$1.01

39

Black Rear Footrest

520001208

$19.99

40

Rivet 3/16"

293150102

$0.70

41

Black, LH Toe Hook | Package LE

518327374

$39.99

41

Toe hold L.H. | Package SE

518327375

$42.99

41

TOE HOOK LH - Call your local BRP dealership | North America

518328969

$85.99

41

Black RH Toe Hook

518327376

$42.99

42

Avex Rivet

390909200

$0.30

43

Clinch Nut M6 Hexsert

605636003

$4.23

44

Black, Dart

414644300

$0.98

44

Clinch Nut M6 Hexsert

605636003

$4.23

45

Hex. Flange Screw M6 x 20

207662056

$1.01

46

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

47

Torx Head Screw M6 X 16

250000717

$2.11

48

Spring Bracket

514054846

$4.69

49

Avex Rivet

390909200

$0.30

50

Avex Rivet

390909200

$0.30

51

PULLEY COVER PLATE - Call your local BRP dealership | Model North America

518326566

Unavailable

52

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

53

ASS'Y BRACE KIT - Call your local BRP dealership | Includes 200 to 200a This part replaces 518327535.

415130014

$284.99

53

Brace Ass'y | Includes 200 to 200a

518327392

$199.99

54

Vibration Damper

512061516

$61.99

55

Conical Spring Washer M8

234281474

$1.48

56

Rivet This part replaces M36087.

36087

$1.04

58

Module S | Package SE

518328395

$619.99

59

Front Suspension Support

518327487

$289.99

60

Hex. Flange Screw M6 X 20

207662044

$2.00

61

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

62

Hexagonal Head Screw

210262050

$2.11

63

Hex. Flange Screw M6 X 25

207662544

$0.64

64

Hex. Flange Screw M6 X 25

207662544

$0.64

65

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

66

Rivet Hucklok

293150163

$2.99

67

Hex. Flange Screw M6 X 20

207662044

$2.00

68

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

69

Hex. Flange Screw M6 X 16

207661644

$0.74

70

Pulley Support

518328434

$144.99

71

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

72

Hex. Flange Screw M8 X 35

250000986

$2.11

73

Hex. Flange Screw M8 X 40, Scotch Grip

207584044

$1.69

73

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

74

Front Member

518326975

$389.99

74

Front Member

518326970

$299.99

75

Hex. Flange Screw M6 X 20

207662044

$2.00

76

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

77

Upper Support Tube Welded M6 This part replaces 518326103.

518329107

$199.99

78

Hex. Flange Screw M6 x 20

207662056

$1.01

79

Not Available As Spare Part - Friction Washer

Unavailable

80

Upper Column Support

518326848

$15.49

80

Upper Lateral Column Support

518325114

$22.49

81

Hex. Flange Screw M6 x 20

207662056

$1.01

82

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

83

Center Column Support

518326355

$22.49

83

Center Column Support

518326657

$19.99

84

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

85

Hex. Flange Screw M6 X 25

207662556

$4.44

86

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

87

Adhesive Patch

518325560

$4.69

88

Hex. Flange Screw M6 X 20

207662044

$2.00

89

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
