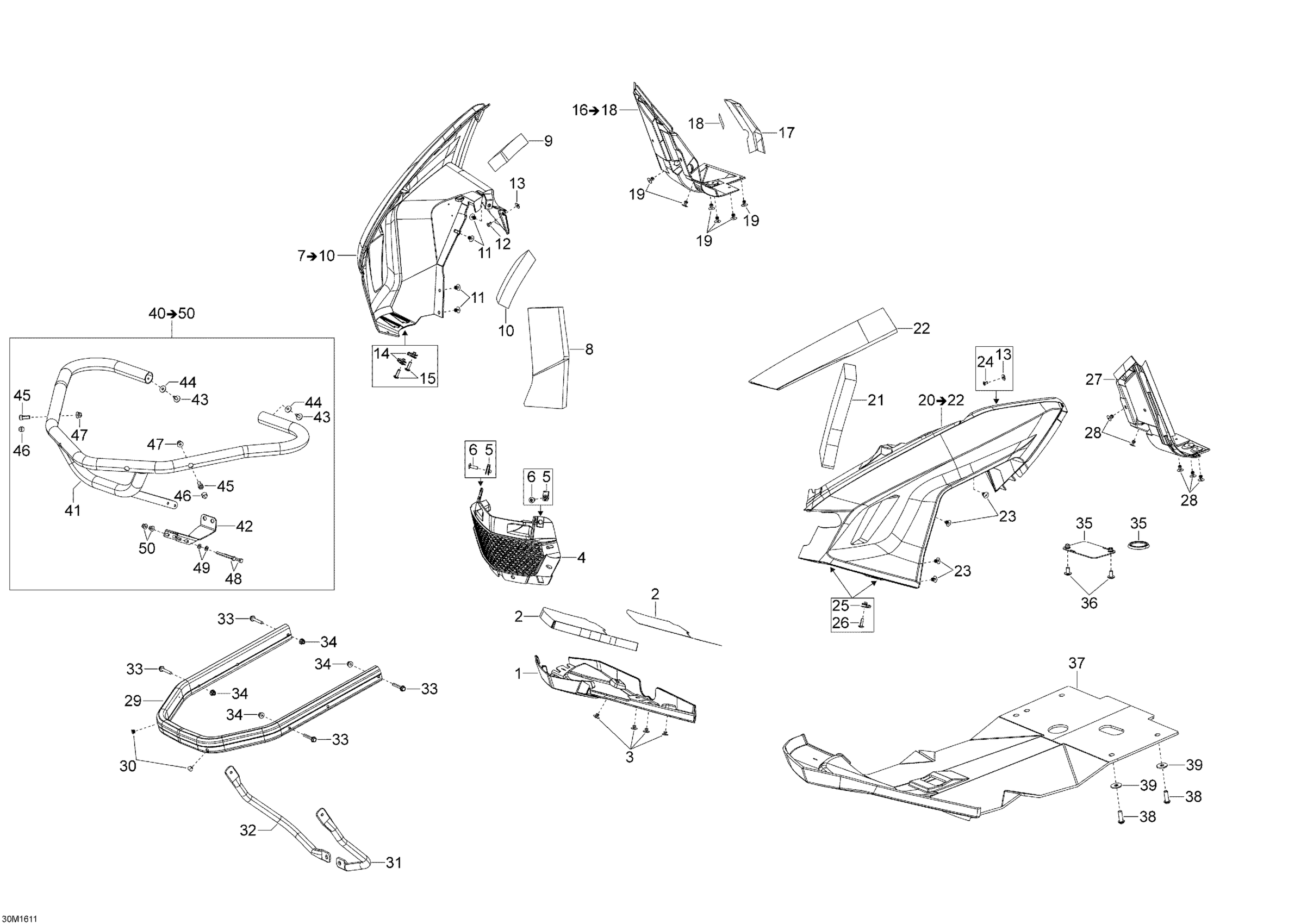

Ski-Doo EXPEDITION - LE-SE 4-STROKE, 2016 09- Bottom Pan Diagram

#

Description
Price

1

Black, Front Bottom Pan

502008006

$149.99

2

Insulator

502007002

$28.99

2

HEAT SHIELD - Call your local BRP dealership | Engine 900 ACE

508000840

Unavailable

3

Pop Rivet 3/16"

293150103

$0.55

4

Grille

502007145

$56.99

5

Panel Nut M6 X 1.0

250100198

$2.11

6

Torx Screw M6 X 20

250000722

$1.68

7

Bottom Pan R.H. | Package SWT & LE This part replaces 502007993.

502007994

$149.99

7

Bottom Pan R.H. | Package SE This part replaces 502007187.

502007992

$169.99

8

Insulator | Model LE, SE

502007006

$28.99

9

Insulator | Model LE, SE

502007008

$19.49

10

Insulator | Except Package EXTREME

502007009

$19.49

11

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

12

Pop Rivet 3/16"

390402200

$0.35

13

Flat Washer

234052450

$2.11

14

Panel Nut M6 X 1.0

250100198

$2.11

15

Torx Screw M6 X 20

250000722

$1.68

16

RH Rear Bottom Pan Ass'y | Includes 21 to 23

502008010

$99.99

17

Aluminium Foil

502007038

$18.99

18

Aluminum foil

44110

Unavailable

19

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

20

Black, LH Bottom Pan | Except Package SE

502008000

$119.99

20

Deep Black, LH Bottom Pan | Package SE

502008002

$194.99

21

Insulator

502007003

$28.99

22

Insulator

502007185

$28.99

23

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

24

Pop Rivet 3/16"

390402200

$0.35

25

Panel Nut M6 X 1.0

250100198

$2.11

26

Torx Screw M6 X 20

250000722

$1.68

27

LH Rear Bottom Pan

502008012

$114.99

28

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

29

Bumper | Model-LE

502007469

$142.99

29

Bumper | Model-SE

502007470

$142.99

30

Full Moon Dart 8 mm

293730041

$2.21

31

LH Bumper Support

502007014

$92.99

32

RH Bumper Support

502007015

$92.99

33

Hex. Flange Screw M6 X 40

207664044

$2.22

34

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

35

Oil Plate | Not Shown

518328317

$13.99

35

Oil Plate Cover | Not Shown

518329102

Unavailable

36

Torx Truss Screw M6 X 12

250000767

$2.00

37

Skid Plate | Package SE

860200563

$222.49

38

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

39

Flat Washer 8 mm

234082410

$1.47

40

Extra Bumber Paint | Includes 50 to 50,01

860200537

Unavailable

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Lower Fastening Plate

502007022

$36.99

43

Torx Head Screw M6 X 16

250000717

$2.11

44

Washer

20117

$6.39

45

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

46

Cover | Model-T3

28056

$5.89

47

Hex. Flange Elastic Nut M8

233281414

$1.47

48

Hex. Screw M6 X 60

207066044

$0.67

49

Flat Washer 6 mm

234061410

$1.36

50

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
