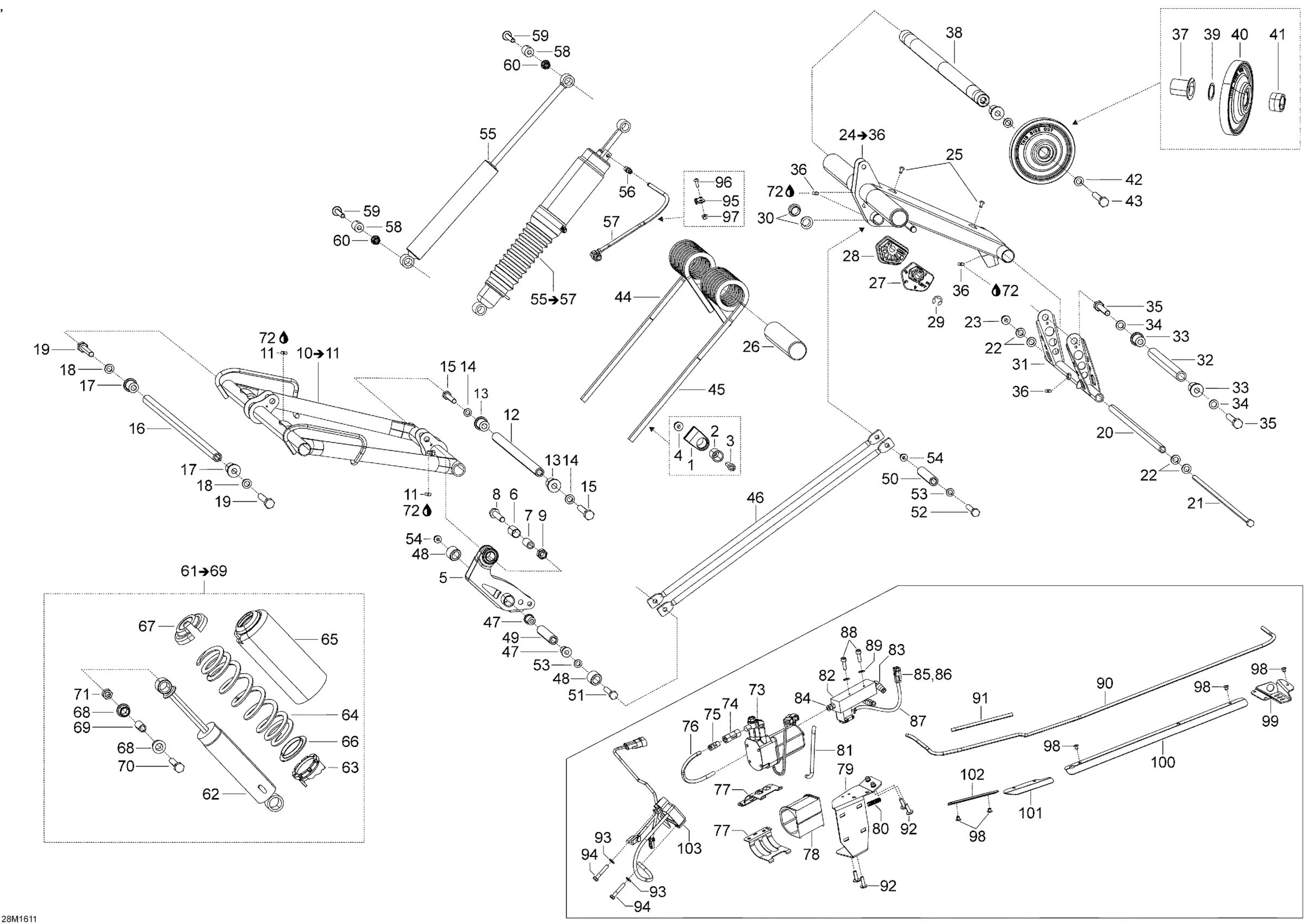

Ski-Doo EXPEDITION - LE-SE 4-STROKE, 2016 08- Rear Suspension B Diagram

#

Description
Price

1

Spring Support Kit

861805547

$10.49

2

Spring Support Kit

861805547

$10.49

3

Socket Head Screw M8 X 25

205082544

$1.15

4

Hex. Flange Elastic Nut M8

233281414

$1.47

5

Rocker

503192211

$83.99

6

Bushing

503193037

$16.18

7

Bushing | Includes 240d to 240d1

503189282

$4.34

8

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

9

Elastic Locking Nut M10 X 1.5

233601416

$1.69

10

Front Arm Ass'y | Includes 1400 to 1400a

503193274

$222.49

11

Grease Fitting

408200700

$3.49

12

Lower Shaft

503191390

$28.99

13

Bushing

503189324

$14.15

14

Washer

503192496

$0.77

15

Hex. Screw S.Grip M10 X 55

250000605

$8.11

16

Upper Shaft

503191391

$36.99

17

Bushing

503189324

$14.15

18

Washer

503189564

$0.74

19

Hex. Screw S.Grip M10 X 55

250000605

$8.11

20

Axle Pivot

503191396

$80.49

21

Bolt 369MM

503195156

$25.99

22

Washer

503189157

$3.28

23

Hex. Flange Elastic Nut M8

233281414

$1.47

24

Rear Arm Ass'y | Includes 24 To 37

503191709

Unavailable

25

Black, Dart

414644300

$0.98

26

Not Available As Spare Part - Friction Washer

Unavailable

27

LH Cam Adjuster

503191565

$16.49

28

RH Cam Adjuster

503191566

$16.49

29

E-Circlip

293370013

$0.65

30

Swivel Bushing

503191555

$7.83

31

Pivot Arm | Includes 3000j to 3000j3

503195154

$104.99

32

Lower Shaft

503192330

$45.99

33

Cushion

503191640

$5.93

34

Washer | 7415/7416. 7417/7418.

503189148

$2.85

35

Socket Head Screw M12 X 35

205523554

$4.44

36

Grease Fitting

408200700

$3.49

37

Cushion

503191451

$14.15

38

Upper Shaft

503191405

$94.99

39

Washer

503190328

$12.65

40

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$48.49

41

Retaining Ring

503191099

$8.29

42

Washer

503192491

$4.54

43

Socket Screw M12 X 35

250000484

$7.51

44

Black RH Square Spring

503192377

$111.49

45

Black LH Square Spring

503192378

$111.49

46

Link Rod

503191765

$18.49

46

Link Rod

503193026

$28.99

47

Swivel Bushing

503191555

$7.83

48

Spacer

503190114

$19.99

49

Axle Bar (Long)

503190643

$17.39

49

Bar Axle (Short)

503190113

$38.99

50

Axle Bar (Long)

503190643

$17.39

51

Hex. Screw M8 X 90

207089044

$3.48

51

Hex. Screw M8 X 130

230083044

$7.41

52

Hex. Screw M8 X 90

207089044

$3.48

53

Washer

503189157

$3.28

54

Hex. Flange Elastic Nut M8

233281414

$1.47

55

Rear Shock

503193520

$248.99

55

Rear Shock Ass'y | Includes 57 to 59

503193000

$716.99

56

Male Pneumatic Connector

503191939

$44.49

57

Pneumatic Hose Ass'y

503192649

$134.99

58

Bushing

414936000

$13.99

59

Hex. Flange Screw M8 X 40

207684044

$1.48

60

Hex. Flange Elastic Nut M8

233281414

$1.47

61

Not Available As Spare Part - Friction Washer

Unavailable

62

Center Shock

503192991

$248.99

62

Center Shock

503192266

$164.49

63

Adjustment Cam

505073625

$12.99

64

Black, Spring

503189686

$67.99

65

Protector

503193663

$37.99

66

Spring Guide

503191872

$2.29

67

Spring Stopper

503189912

$10.99

67

Spring Stopper

706200881

$12.99

68

Urethane Bushing

503189117

$8.19

69

Bushing | Includes 240d to 240d1

503189282

$4.34

70

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

71

Elastic Locking Nut M10 X 1.5

233601416

$1.69

72

Not Available As Spare Part - Friction Washer

Unavailable

73

Compressor

706001349

$469.99

74

Check Valve

706000940

$37.99

75

Connector

706000869

$34.99

76

Hose 4.32Mm 3000Mm Long

219704415

$55.99

77

Compressor Bracket

503193103

$4.69

78

Compressor Isolator

706000631

$13.99

79

SUPPORT - Call your local BRP dealership

503193484

Unavailable

80

TUBING 6 MM - Call your local BRP dealership

515175442

Unavailable

81

Tubing 6 Mm 3000Mm Long

219704425

$13.75

82

Air manifold Ass'y

503193009

$339.99

83

Elbow 90°

706000872

$28.99

84

Connector

706000869

$34.99

85

Male Terminal

515175232

$1.58

86

Male Terminal Housing, 2 Circuits

515175654

$9.12

87

Tubing 6 Mm 3000Mm Long

219704425

$13.75

88

Socket Head Screw M6 X 20, Scotch Grip

205562044

$2.11

89

Flat Washer 6 mm

234061410

$1.36

90

Tube

503193034

$18.73

91

Tubing 6 Mm 3000Mm Long

219704425

$13.75

92

Torx Screw M6 X 20

250000722

$1.68

93

Flat Washer 6 mm

234061410

$1.36

94

Hex. Flange Screw M6 X 35

207063544

$1.37

95

Clamp

503193393

$8.32

96

Torx Screw M5 X 14

235551494

$7.51

97

Flange Elastic Nut M5

233251434

$2.00

98

Rivet 3/16"

293150102

$0.70

99

BRACKET - Call your local BRP dealership

503193004

Unavailable

100

Hose Protector

503193006

$12.99

101

Hose Protector

503193007

$11.49

102

HOSE PROTECTOR PAINTED - Call your local BRP dealership

503193011

Unavailable

103

Compressor Module | With Air Suspension

515177125

$539.99
