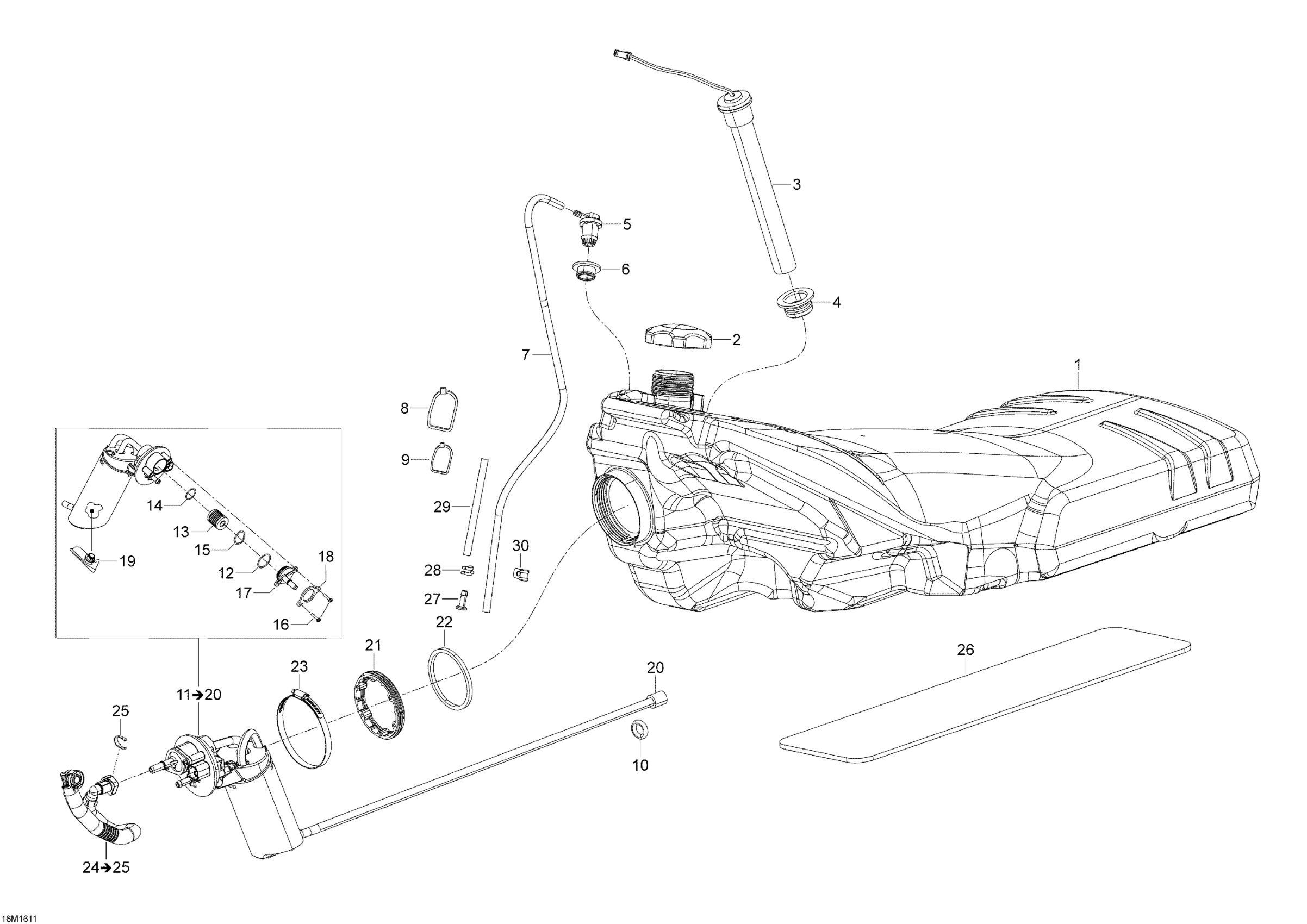

Ski-Doo EXPEDITION - LE-SE 4-STROKE, 2016 Fuel System Diagram

#

Description
Price

1

Fuel Tank

513033757

$551.51

2

Fuel Tank Cap 95 Octane | Europe

513033723

$25.35

2

Fuel Tank Cap

513033969

$25.35

3

Fuel Sensor

513033538

$77.66

4

Grommet

293720058

$11.00

5

Check Valve

513033842

$33.82

6

Grommet

513033596

$18.43

7

Polyurethane Hose 10000Mm Long

219704410

$46.12

8

Tie-Rap 180 mm

414115200

$0.09

9

Tie Wrap 142 mm

293750002

$0.88

10

O Ring

293300184

$3.29

11

Fuel Pump | Includes 300 to 300j This part replaces 513033694.

513034261

$257.66

12

O-Ring

415129509

$18.43

13

Fuel Filter

415129510

$23.05

14

O-Ring

415129511

$16.89

15

Wave Washer

415129512

$18.43

16

Screw

415129513

$9.00

17

Cover

415129685

$29.97

18

Fuel Pump Ring

415129569

Unavailable

19

Fuel Filter

415129451

$23.05

20

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

21

Ring

513033180

$17.66

22

Gasket

513033334

$23.05

23

Clamp

513033628

$20.74

24

Hose Ass'y | Includes 500 to 500a

513033582

$73.05

24

Hose Ass'y | Includes 27 to 28

513033583

$77.66

25

Locking Clip

513033135

$5.11

26

Insulate Foam

513033788

$8.74

27

HOSE CONNECTOR - Call your local BRP dealership

513033821

Unavailable

28

Spring Clamp

414554800

$0.83

29

Protector Tube

504153468

Unavailable

30

Open Clamp

293850125

$3.11
