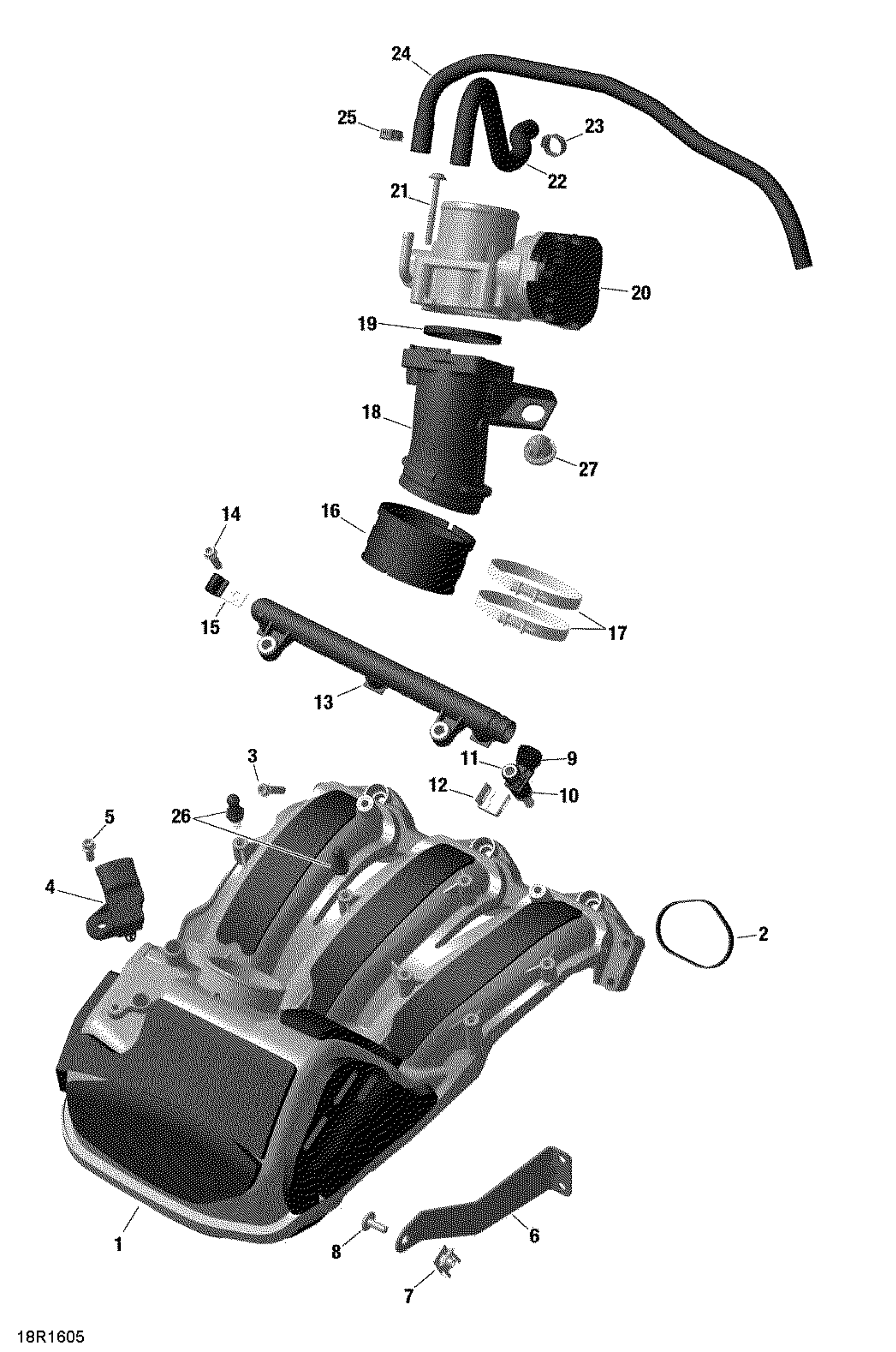

Ski-Doo EXPEDITION - LE-SE 4-STROKE, 2016 02- Air Intake Manifold and Throttle Body - 1200iTC 4-TEC Diagram

Air Intake Manifold | Includes 1 to 2

420667446

$469.99

Gasket

420950745

$16.33

Torx Flange Screw M6 X 30

420440647

$2.00

Pressure And Temperature Sensor

707000995

$88.99

Torx Flange Screw M6 X 16

420440162

$3.17

SUPPORT - Call your local BRP dealership

420951011

$9.89

Panel Nut M6 X 1

420942108

$14.28

Torx Screw M6 X 16

420241524

$2.11

Injection Valve Ass'y | Includes no. 7-9

420874886

$142.99

O-Ring

420431890

$7.49

O-Ring

420631220

$14.28

Injector Clip

420853030

$3.09

Fuel Rail

420874810

$134.99

Torx Flange Screw M6 X 25

420440234

$3.06

CABLE CLAMP - Call your local BRP dealership

420253150

Unavailable

INTAKE ADAPTOR - Call your local BRP dealership

420460490

Unavailable

Clamp

420251209

$8.57

CONNECTING TUBE - Call your local BRP dealership

420867560

Unavailable

Gasket Rubber

420850130

$4.63

Throttle Body

420893148

$381.49

Torx Flange Screw M6 X 50

420441588

$4.44

MOLDED HOSE - Call your local BRP dealership

420460483

Unavailable

Clamp

420851458

$7.41

Molded Hose | Except GT LE - Renegade Enduro

420822663

$30.49

MOLDED HOSE - Call your local BRP dealership | GT LE - Renegade Enduro

420822666

Unavailable

Oetiker Clamp

293650125

$3.29

Screw

420441840

$2.11

Rubber Cap

420201630

$4.44
