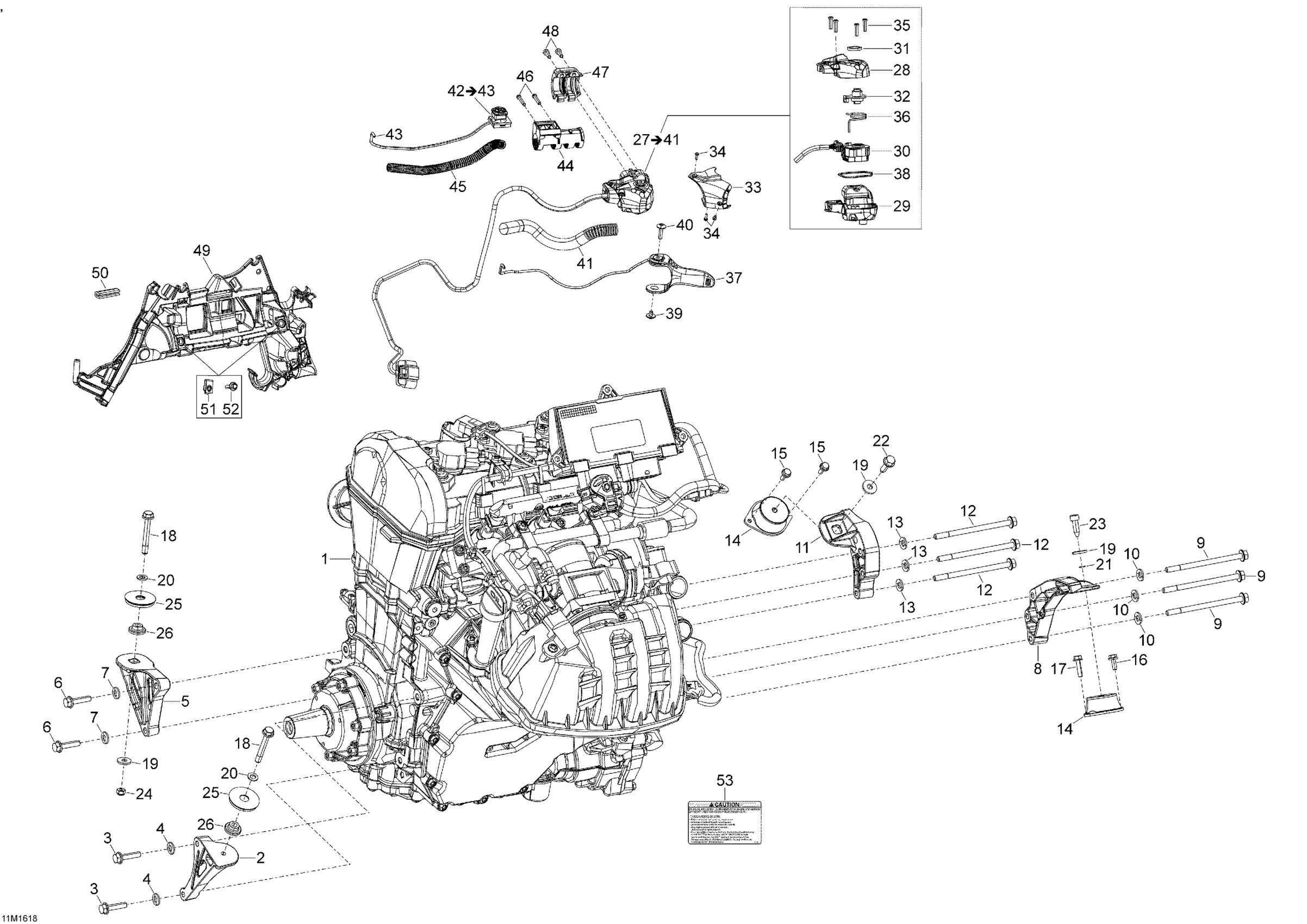

Ski-Doo EXPEDITION - LE-SE 4-STROKE, 2016 Engine And Engine Support - 900 ACE Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Rear Support PTO

512061139

$23.10

3

Hex. Flange Screw M8 X 35

250000986

$2.00

4

Conical Spring Washer M8

234281474

$1.43

5

Front Support PTO

512061140

$17.13

6

Hex. Flange Screw M8 X 35

250000986

$2.00

7

Conical Spring Washer M8

234281474

$1.43

8

Rear Support MAG

512061142

$26.84

9

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$6.85

10

Conical Spring Washer M8

250200157

$2.00

11

Front Support, MAG

512060663

$17.88

12

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$6.85

13

Conical Spring Washer M8

250200157

$2.00

14

Rubber Mount

512060729

$67.88

15

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

16

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

17

Hex. Flange Screw M6 X 25, Scotch Grip | Package-2X4, 4X4

207562534

$2.00

18

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$2.00

19

Yellow, Washer

503183200

$2.91

20

Flat Washer With Teflon 8 mm

250200008

$3.58

21

O-Ring

293300123

$0.97

22

Cone Screw, M8 X 30

250000257

$1.67

23

Cone Screw, M8 X 25

250000639

Unavailable

24

Hex. Elastic Stop Nut M8

232581414

$0.54

25

Engine Stopper

512061536

$17.88

26

Spacer

512060285

$17.13

27

Housing Ass'y | Includes 3800 to 3800q This part replaces 512061261.

512061607

$270.12

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Cap

512060862

$11.22

34

Torx Screw M2.9 x 9.5

250000623

$3.01

35

Torx Screw

250000671

$0.96

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Handle Ass'y kit

415130047

$94.00

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Torx Screw M5 X 20

250000528

$2.00

41

Protector Tube

515177716

$4.28

42

Emergency Stop Switch | Includes 91 to 91a

515177362

$82.06

43

Male Terminal

515175232

$1.45

44

Switch Support

512061453

$8.13

45

Protector Tube

515177946

$4.09

46

Torx Screw #8-18

250000263

$0.99

47

Front Housing

512060987

$8.09

48

Torx Screw M5 X 14

250000632

$7.09

49

Module Support

512060994

$14.10

50

Trim 1000Mm Long

219704354

$14.30

51

Panel Nut M5 X 0.8

250000958

$4.00

52

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.73

53

Caution Decal, Oil Level

516005521

Unavailable
