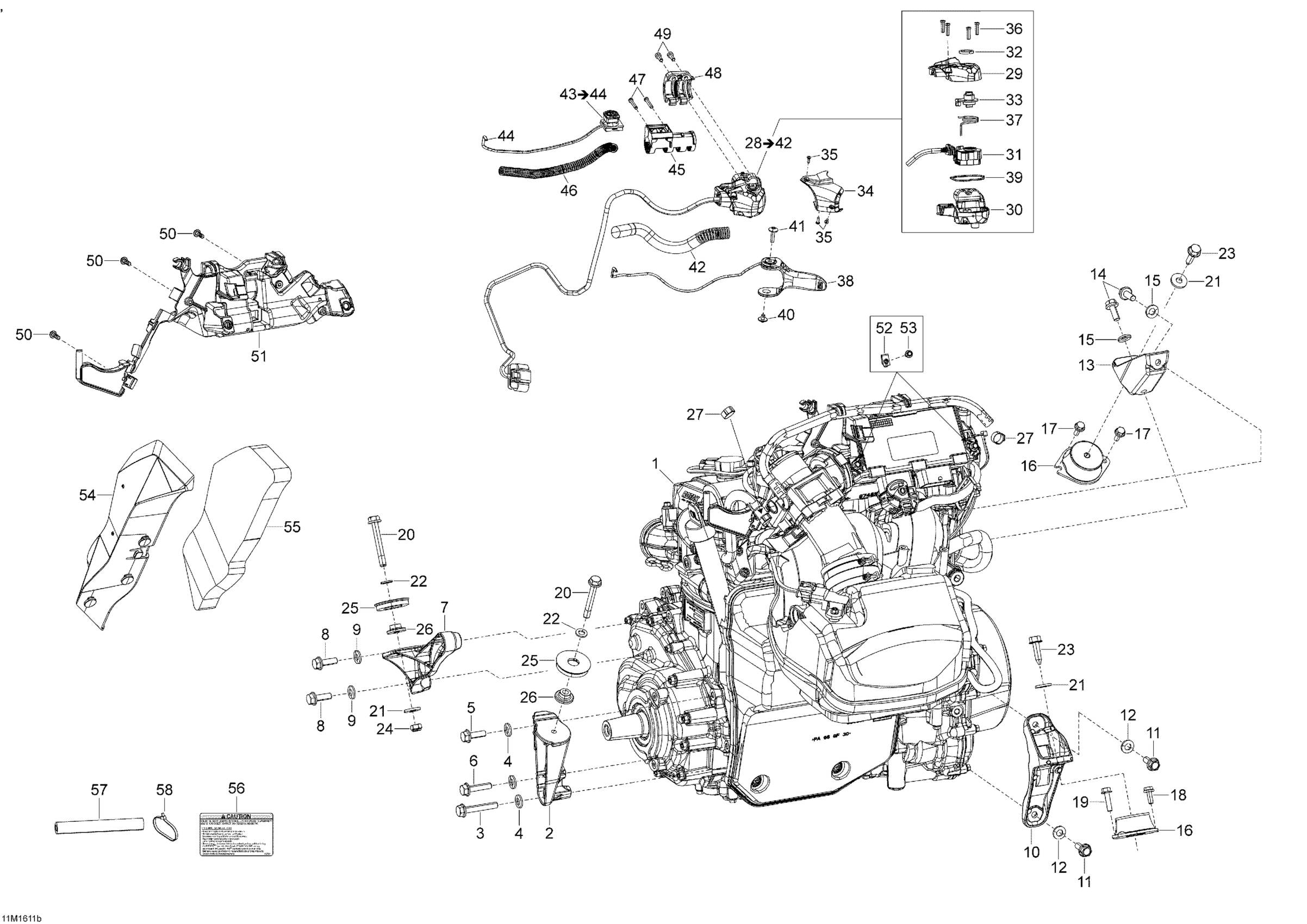

Ski-Doo EXPEDITION - LE-SE 4-STROKE, 2016 Engine And Engine Support - 1200 4-TEC Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Rear Support, PTO

512060591

$45.35

3

Hex. Flange Screw M8 X 50, Scotch Grip

207585086

$4.28

4

Conical Spring Washer M8

234281474

$1.25

5

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.26

6

Hex. Flange Screw M8 X 35

250000986

$1.74

7

Front Support, PTO

512060593

$28.43

8

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.26

9

Conical Spring Washer M8

234281474

$1.25

10

Rear Support, MAG

512060594

$29.97

11

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

12

Conical Spring Washer M8

234281474

$1.25

13

Front Support, MAG

512060596

$29.97

14

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

15

Conical Spring Washer M8

234281474

$1.25

16

Rubber Mount

512060729

$69.97

17

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

18

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

19

Hex. Flange Screw M6 X 25, Scotch Grip | Package-2X4, 4X4

207562534

$2.06

20

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$1.74

21

Yellow, Washer

503183200

$3.00

22

Flat Washer With Teflon 8 mm

250200008

$3.12

23

Cone Screw, M8 X 30

250000257

$1.72

24

Hex. Elastic Stop Nut M8

232581414

$0.47

25

Stopper This part replaces 512060244.

512061202

$18.43

26

Spacer

512060285

$17.66

27

Oetiker Clamp

293650046

$2.33

28

Housing Ass'y | Includes 3800 to 3800q This part replaces 512061261.

512061607

$278.43

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Not Available As Spare Part - Friction Washer

Unavailable

34

Cap

512060862

$11.57

35

Torx Screw M2.9 x 9.5

250000623

$3.11

36

Torx Screw

250000671

$0.83

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Torx Screw M5 X 20

250000528

$1.74

42

Protector Tube

515177716

$4.42

43

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.54

44

Male Terminal

515175232

$1.49

45

Switch Support

512061453

$8.38

46

Protector Tube

515177716

$4.42

47

Torx Screw #8-18

250000263

$1.02

48

Front Housing

512060987

$8.34

49

Torx Screw M5 X 14

250000632

$6.18

50

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

51

Module Support

512061012

$14.54

52

Panel Nut M5 X 0.8

250000958

$3.48

53

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.12

54

Noise Shield

512060847

$14.54

55

Inner Acoustic Foam

512060958

$18.43

56

Caution Decal, Oil Level

516005521

Unavailable

57

Aluminium coated fiberglass tube - Call your local BRP dealership

39065

Unavailable

58

Tie-Rap 180 mm

414115200

$0.09
