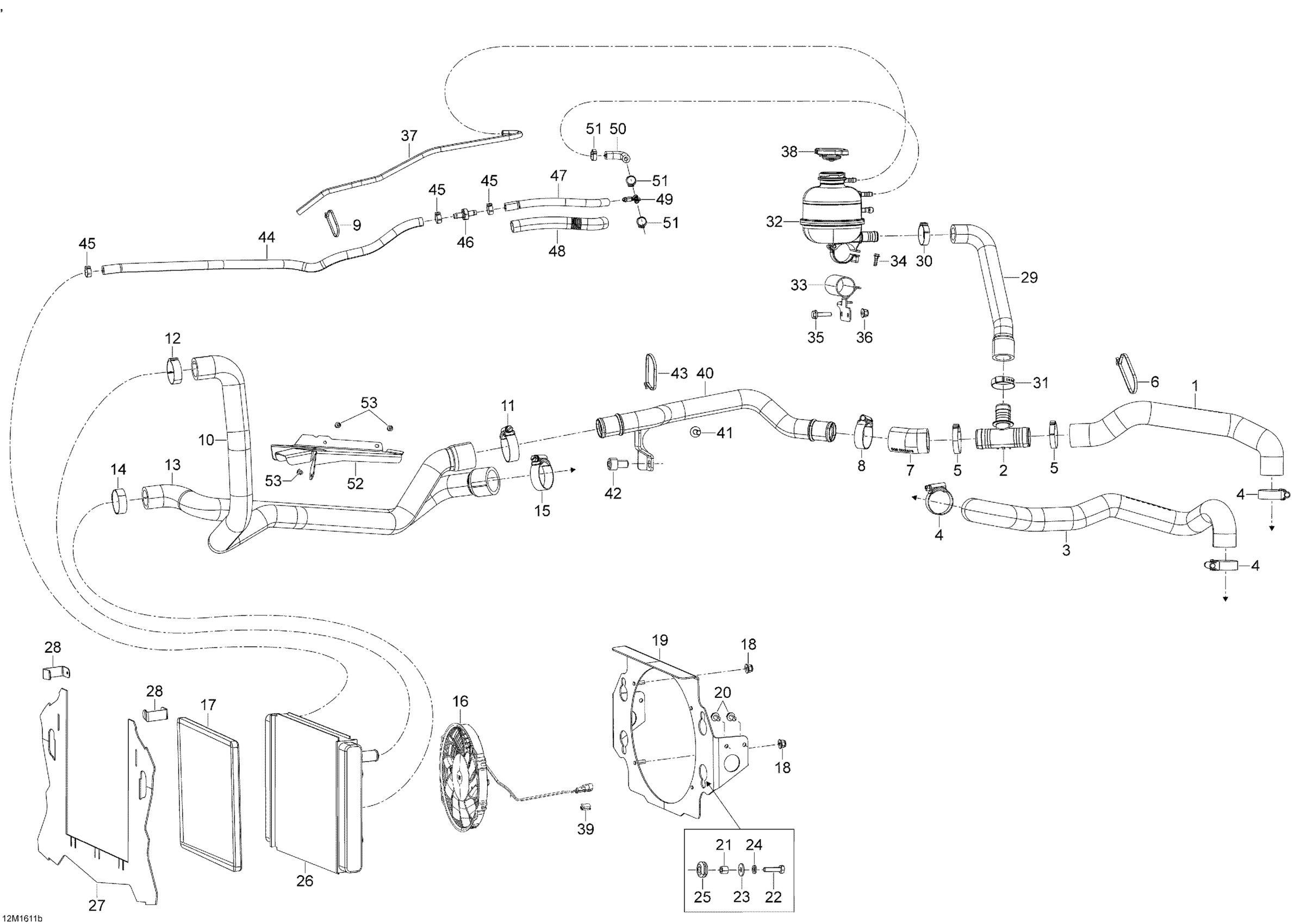

Ski-Doo EXPEDITION - LE-SE 4-STROKE, 2016 Cooling System - 1200 4-TEC Diagram

#

Description
Price

1

Formed Hose

509000894

$15.49

2

T-Fitting

509000372

$10.99

3

Formed Hose

509000895

$42.99

4

Aba Gear Clamp, 26-38 MM

509000443

$12.49

5

Oetiker Gear Clamp

509000181

$4.49

6

Tie Wrap 368 mm

293750008

$1.49

7

Engine Inlet Hose This part replaces 509000675.

509001067

$16.99

8

Aba Gear Clamp, 26-38 MM

509000443

$12.49

9

Tie-Rap 180 mm

414115200

$1.49

10

Hose, Front Radiator ( Air Engine)

509000780

$38.99

11

Aba Gear Clamp, 26-38 MM

509000443

$12.49

12

Oetiker Gear Clamp

293650165

$5.49

13

Hose, Front Radiator (Engine)

509000781

$26.99

14

Oetiker Gear Clamp

293650165

$5.49

15

Aba Gear Clamp, 26-38 MM

509000443

$12.49

16

Cooling Fan

509000838

$224.99

17

Insulation

509000718

$62.99

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

19

Radiator support | Includes 3340 to 3340a

509000791

$95.99

20

Hex. Flange Screw M6 X 40

207664044

$2.19

21

Bushing

605453745

$13.49

22

Hex. Screw M6 X 20 | XT Models

207162044

$1.49

23

Flat Washer 6 mm

234062410

$1.49

24

Lock Waasher

234161431

Unavailable

25

Grommet

709000582

$4.79

26

Radiator

509000787

$229.99

27

Air Deflector

509000700

$45.99

28

Deflector Clip

509000703

$42.99

29

Filling Hose

509000663

$63.99

30

Oeticker Gear Clamp, 25.6-706R

509000442

$5.29

31

Crimp Clamp

293650099

$4.39

32

Coolant Tank

509000421

$94.99

33

Reservoir support

509000856

$19.49

34

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.49

35

Hex. Flange Screw M6 X 25

207662544

$1.49

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

37

Hose 6 Mm 15000Mm Long

219704360

$134.99

38

Radiator Pressure Cap

509000180

$14.99

39

Clip

710000992

$4.39

40

Water Pipe Aluminum

509000724

$164.99

41

Torx Head Screw M6 X 16

250000717

$2.19

42

Socket Screw M10 X 16

205501644

$4.39

43

Tie-Rap 180 mm

414115200

$1.49

44

Was 509000407 Hose 8 mm

219704420

$51.99

45

Oetiker Clamp

293650140

$2.79

46

Check Valve

509000153

$19.99

47

Hose-formed

509001069

$15.49

48

Tubing 16 Mm 1000Mm Long

219704408

$7.69

49

Y-Fitting

293710140

$8.29

50

HOSE - Call your local BRP dealership

509000799

Unavailable

51

Oetiker Clamp

293650046

$2.99

52

HEAT DEFLECTOR - Call your local BRP dealership This part replaces 509000751.

509000839

Unavailable

53

Avex Rivet

390909200

$1.49
