Description

Price

1

Main Harness | Includes 1 To VMS

515177482

$669.99

2

Tubing 6 Mm 3000Mm Long

219704425

$13.75

2

Was 409901700 Tubing (9 mm)

219704399

$84.99

2

Tubing 10 MM 1000MM Long

219704407

$2.79

2

Was 409901800 Tubing (13 mm)

219704400

$14.49

2

Tubing 16 Mm 1000Mm Long

219704408

$7.49

2

Was 409901600 Tubing 19mm

219704398

$95.99

2

Not Available As Spare Part - Friction Washer

Unavailable

2

Tubing 25 MM 1000MM Long

219704402

$15.99

3

Not Available As Spare Part - Friction Washer

Unavailable

BM

Open Barrel

278000992

$2.21

BP

Open Barrel

278000992

$2.21

CM

Female Housing, 3 Circuits

409209600

$35.99

CM

Female Terminal

278001014

$3.28

CM

Wire Seal

515176621

$7.49

CM

Tie Wrap 142 mm

293750002

$1.25

COM1

Male Housing, 6 Circuits

515175673

$15.49

COM1

Male Wedge, 6 Circuits

515175678

$5.39

COM1

Female Terminal

278000632

$2.09

COM1

Sealing Cap

293000052

$3.19

COMP

Female Housing, 3 Circuits

409209600

$35.99

COMP

Female Terminal

278001014

$3.28

COMP

Wire Seal

515176621

$7.49

CTek

Mâle Terminal Housing, 2 Circuits

278001674

$30.49

CTek

Male Lock, 2 Circuits

278001672

$3.49

CTek

Male Terminal

515175568

$9.12

CV

Female Housing, 24 Circuits

515175801

$9.59

CV

Retainer Block

515175802

$11.49

CV

Wire Seal

515175803

$2.99

CV

BLOCK - Call your local BRP dealership

515175804

Unavailable

CV

LOCK - Call your local BRP dealership

515175805

Unavailable

CV

Female Terminal

515175806

$0.99

CV

Plug

515175812

$2.19

CV

Female Housing

710000399

$16.49

DS

Female Housing, 3 Circuits

515175495

$16.18

DS

Female Terminal

515175231

$4.39

ECMB

Molex Housing, 48 Circuits

710001967

$142.99

ECMB

Cover, 48 positions

710001591

$12.18

ECMB

Female Terminal

710001589

$2.21

ECMB

Female Terminal

710001590

$2.09

ECMB

Plug

710001592

$2.21

ECMB

Plug

710001593

$2.21

ECO

Housing

710002593

$12.06

F

Little Fuse, 5 Amperes

710000742

$8.79

F

Little Fuse, 7.5 Amperes

710000743

$8.49

F

Little Fuse, 10 Amperes

710000744

$8.79

F

Little Fuse, 15 Ampere

710000745

$8.49

F

Little Fuse, 20 Amperes

710000746

$8.49

F

Little Fuse, 30 Amperes

710000747

$8.49

FT

Female Housing, 2 Circuits

278000217

$9.59

FT

Male Terminal | XT Models

278000222

$3.19

FT

Male Terminal

409004300

$5.61

FT

Wire Seal

278001065

$7.69

GPS1

Female Terminal Housing, 1 Circuit

409010400

$7.62

GPS1

Female Terminal

409010100

$5.61

GPS2

Female Terminal Housing, 1 Circuit

409010400

$7.62

GPS2

Female Terminal

409010100

$5.61

HB1

Female Terminal Housing, 1 Circuit

409010400

$7.62

HB1

Female Terminal

409010100

$5.61

HB2

Female Terminal Housing, 1 Circuit

409010400

$7.62

HB2

Female Terminal

409010100

$5.61

HIC

Male Connector, 4 Circuits | CE

278000739

$19.49

HIC

Female Terminal

278000632

$2.09

HIC

Male Lock, 4 Circuits | CE

278000738

$3.09

HIC

Sealing Cap

293000052

$3.19

HO

Female Housing, 2 Circuits

515175658

$16.18

HO

Female Terminal

515175231

$4.39

IR

Female Terminal Housing, 2 Circuits

515176296

$5.89

IR

Female Terminal

515175231

$4.39

NE

Male Terminal Housing, 2 Circuits

515175654

$9.12

NE

Male Terminal

515175232

$1.58

NV

Housing

710000568

$11.12

NV

Male Terminal

515176164

$7.16

NV

Clip

710000992

$4.29

NV

Wire Seal

515176621

$7.49

PA

Female Housing

515176908

$13.99

PA

Terminal

515176909

$2.21

PB

Female Housing

515176908

$13.99

PB

Terminal

515176909

$2.21

PE

Housing

710001132

$9.85

PE

Female Terminal

710001134

$7.69

PE

Lock

710001133

$4.39

PE

Seal

710000643

$4.39

PF

Fuse Cover

710001026

$21.99

PF

Fuse Box Base Ass´y

415129856

$50.99

PF

Female Terminal

710000836

$5.61

PF

Female Terminal

710000837

$5.39

PF

Wire Seal

278000999

$3.19

PF

Seal

415128501

$1.89

PF

Cap

710000840

$5.89

PF

Fuse Puller

710000781

$8.09

PF

Foam

278002172

$5.89

PF

Decal, Fuse Box

516006778

$18.99

PPS

Not Available As Spare Part - Friction Washer

Unavailable

R

Relay, 50 AMP

515176775

$15.79

R

Relay, 30 AMP

515176774

$21.99

RE

Female Housing, 3 Circuits

710000879

$25.99

RE

Female Terminal

710000877

$9.12

RE

Cap

710000882

$11.49

RE

Seal

710000881

$17.99

RPO

Male Housing, 3 Circuits

515175494

$16.18

RPO

Male Terminal

515175232

$1.58

RPSW1

Female Terminal Housing, 1 Circuit

409010400

$7.62

RPSW1

Female Terminal

409010100

$5.61

RPSW2

Female Terminal Housing, 1 Circuit

409010400

$7.62

RPSW2

Female Terminal

409010100

$5.61

SA

Female Housing, 3 Circuits

515175495

$16.18

SA

Female Terminal

515175231

$4.39

SD

Female Housing, 2 Circuits

515177192

$9.12

SD

Female Terminal

278001114

$3.19

SH1

Housing, Packard

710001929

$11.12

VC

Female Housing, 2 Circuits

515175658

$16.18

VC

Female Terminal

515175231

$4.39

VC1

Female Terminal Housing, 1 Circuit

409010400

$7.62

VC1

Female Terminal

409010100

$5.61

VC2

Female Terminal Housing, 1 Circuit

409010400

$7.62

VC2

Female Terminal

409010100

$5.61

WMS

Housing

710001927

$8.79

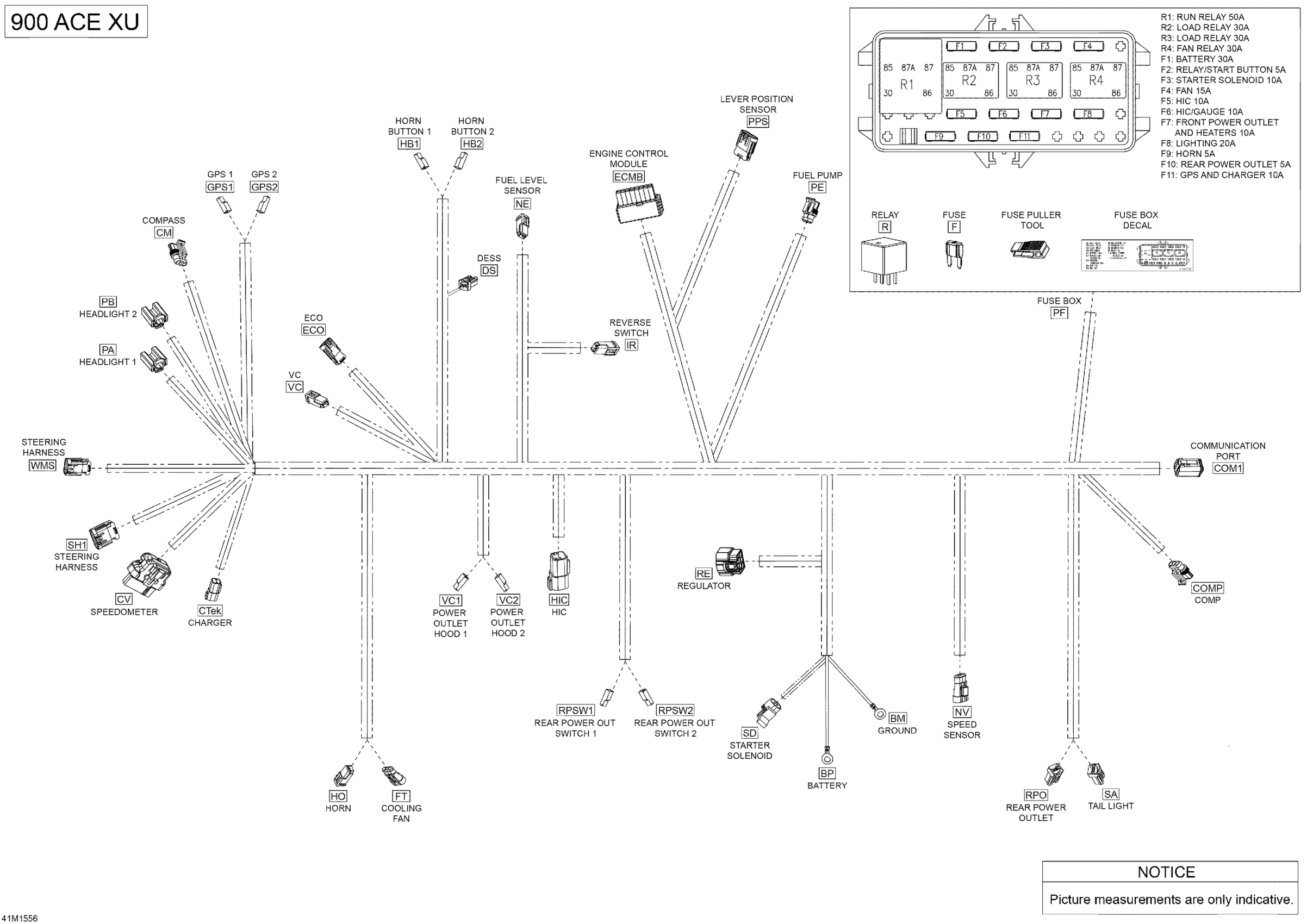

Ski-Doo Expedition LE 900 ACE, 2015 10- Electrical Harness _41M1556 Diagram
