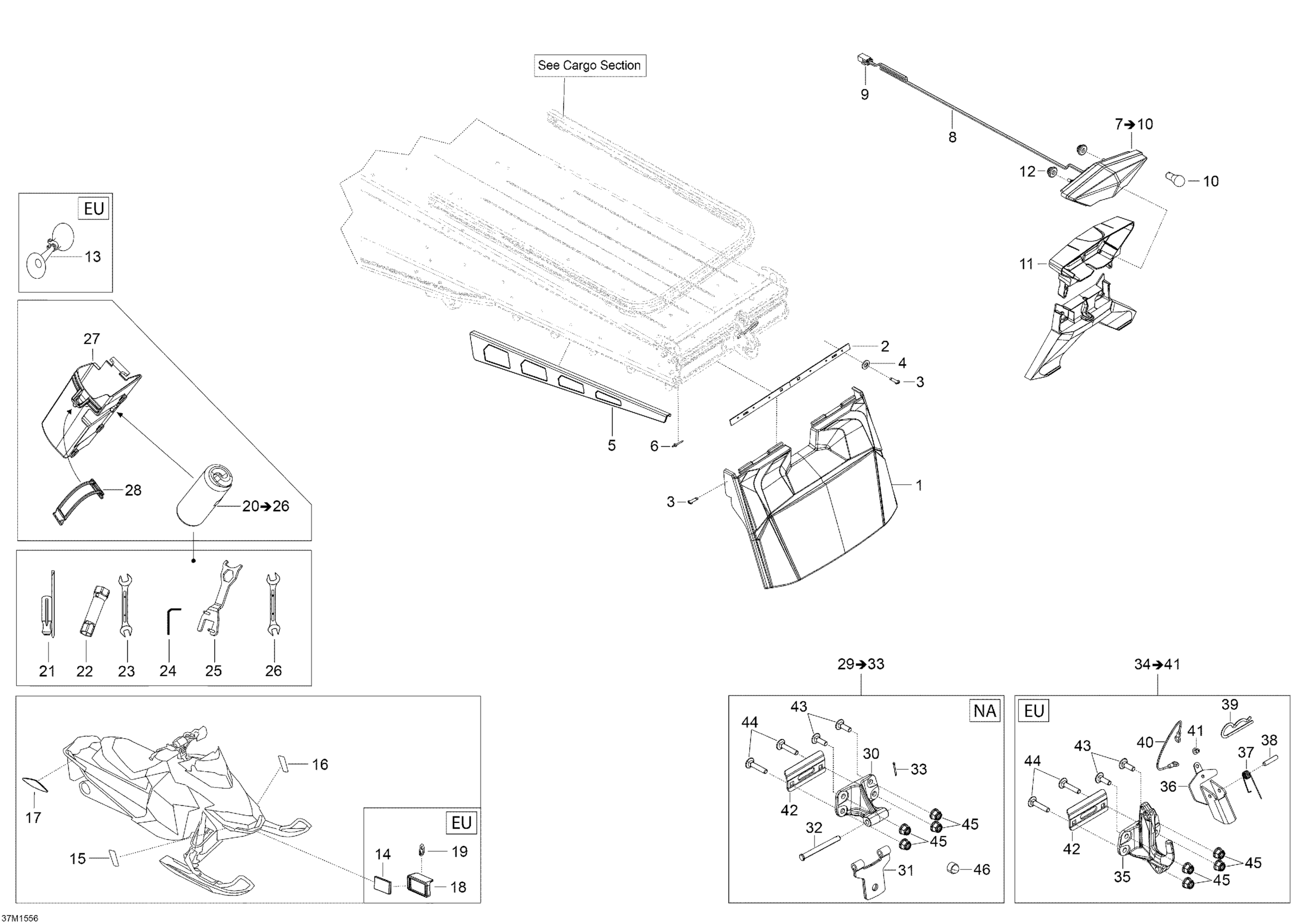

Ski-Doo Expedition LE 900 ACE, 2015 Utilities _37M1556 Diagram

#

Description
Price

1

Snow Guard

520001406

$86.99

1

Black, Snow Guard Long

520001410

$109.99

2

Plate

520001021

$33.55

3

Forming Screw M5 x 16

250000676

$0.96

4

Washer M5

250200025

$0.70

5

RH Protector

520000693

$52.96

5

LH Protector

520000694

$52.96

6

Rivet Hucklok

293150163

$2.73

7

Rear Light | Includes 200 to 200a

520000848

$93.25

8

Rear Wiring Harness

520000849

$49.22

9

Male Housing, 3 Circuits

515175494

$14.90

10

Bulb

520000758

$8.60

11

Rear Light Cover

511000764

$35.04

12

Stopper Rubber

705014429

$6.09

13

Horn

549011291

$34.30

14

Reflector (Bright)

21118

$26.09

15

Yellow, RH Reflector

520001600

$30.57

16

Yellow, LH Reflector

520001601

$30.57

17

Red, Lateral Reflector

705003412

$12.88

17

Amber, Lateral Reflector

705002423

$12.88

18

Deep Black, Reflector Support

520000871

$5.13

19

TIE RAP - Call your local BRP dealership

27120

Unavailable

20

Tool Kit | Includes 16 To 22

529000066

$46.99

21

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

22

Set Key, 16/21 mm

529000046

$14.49

23

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

24

Spacing Tool

520001142

$10.99

25

WRENCH SUSPENSION - Call your local BRP dealership

520000988

Unavailable

26

Wrench

34017

Unavailable

27

Tool Kit Rack

520000894

$14.99

28

Latch

520000528

$6.40

29

Hitch Ass'y | Includes 3600 to 3600a

520001398

$69.37

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

33

Cotter Pin

41031

$6.07

34

Hitch Ass'y | Includes 3600 to 3600f

520001774

$61.16

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Pin

41012

$5.06

39

Hair pin

41029

$4.15

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Avex Rivet

390909100

$0.28

42

Plate

520000727

$32.81

43

Carriage Bolt, M8 X 25 | XXC

207782544

$1.51

44

Bolt Carriage M8 X 40

207784044

$1.06

45

Hex. Flange Elastic Nut M8

233281414

$1.31

46

Cover | Model-T3

28056

$5.36
